| Prod Model: |
JLM4580A-G1Y5 |
| Wavelength: |
450nm |
| Output Power: |
80MW |
| Color: |
Blue |
| Operation Current: |
100mA |
| Operation Voltage: |
5.5V-65V |
| Storage Temperature: |
-40 to +85 Degree |
| Operation Temperature: |
0 to +50 Degree |
| Quality: |
Brand New |
| Lifetime: |
10, 000hours |
| Price: |
Lower Price |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
To18-5.6mm |
| Application: |
Laser Module, Laser Light, Laser Pointer |
| Model: |
Jlm450-80MW |
| Brand: |
Lanji |
Product Description
Specification:
Wavelength: 450nm
Output Power(CW): 80mw

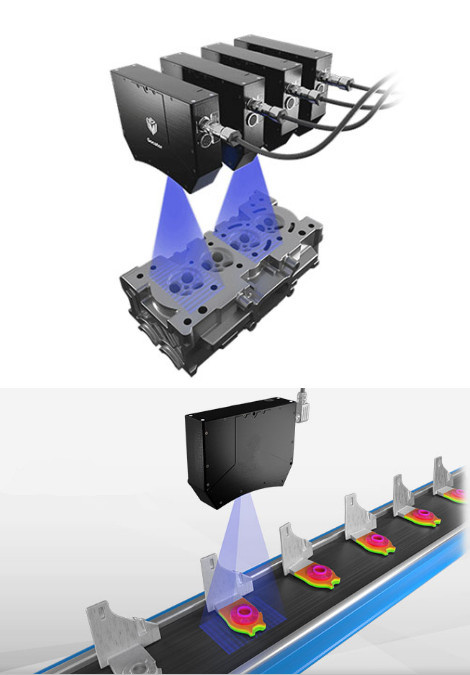

Size: 9*20mm / 9*13mm 450nm 80MW Blue Line Laser Diode Module for 3D Sensors
Product Description
| Item | Parameter | Unit |
| Peak Wavelength | 450 | nm |
| Optical Output Power | 80 | mw |
| Operating Voltage | 6 | V |
| Operating Current | 100-120 | mA |
| Operating Case Temperature | -10 to +60 | ºC |
| Preheating Time | 0 | Sec |
| TTL Working Frequency | 0~10K | Hz |
| Laser diodes | GH04580A2G | Sharp |
| Safety Grade | Class 1 | - |

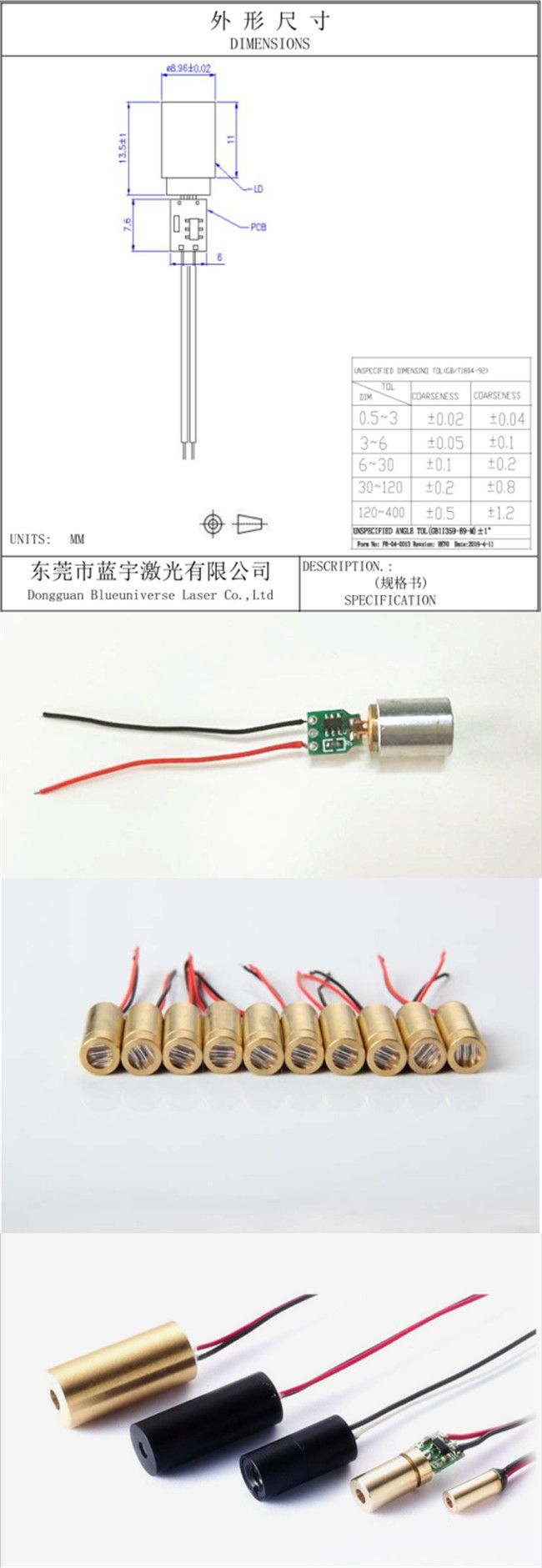

| External dimension | 9*20/ 9*13 | mm |
| Wire Length | 150 | mm |
| PCB Dimension | | mm |
| Storage Temperature | -40 to +85 | ºC |
| Life Time | ≤10000 | Hour |
| Beam Spot | Line | - |
| Project Angle | 5- 130 | Degrees |
Remarks: We offer professional ODM and OEM service, so the housing size, power, beam
Shape, beam Size and the wire length of the laser module can be customized!
