45kVA Modular UPS Double DSP Control Eco Mode

Name: 45kVA Modular UPS Double DSP Control Eco Mode
Brand: all-electronics-online.com
SKU: 822145655
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 12810-13300/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NPH-M33045
Capacity:	45kVA
Nominal Voltage:	380V/400V/415V
Power Factor:	0.9
Output Precision:	±1%
Architecture:	Modular
Touch Screen:	Yes
Communication:	RS232/RS485/Dry Contact/USB/Rj11/RJ45/Ethernet
N+X:	Yes
Epo:	Yes
Cold Start:	Yes
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Neopower

Product Description

Model	NPH-M33045
Capacity	45 kVA
Power Rating	40.5 kW
Input
Voltage	380/400/415 Vac +/-20%, three phase + N + PE
Frequency	40 ~ 70 Hz (auto sensing)
Power Factor	>0.99
THD	<3%
Bypass Voltage	380/400/415 Vac +15% ~ -20%, three phase + N + PE
Output
Voltage	380/400/415 Vac +/-1% (balanced load); +/-1.5% (unbalanced load) three phase + N + PE
Frequency	input frequency synchronized
Power Factor	0.9
Wave Form	Clean Sine Wave
THD	<1% (linear load); <3% (non-linear load)
Crest Factor	3 : 1
Battery
Battery Type	VRLA
Battery Voltage	±192/±240 Vdc (battery quantity configurable within 32 ~ 44 pcs)
Charging Rating	20% * overall power rating
Function
Overload Ability	1 h / 10 m / 1 m / 200 ms (110% / 125% / 150% / higher)
Transfer Time	0 ms
Efficiency	95% (Normal Mode); 95% (Battery Mode); 98% (ECO)
Display	LCD touch screen + LED
Communication Port	RS232 + RS485 + Dry Contact + SNMP Card + gen. port
Physical
Enclosure Level	IP20
Cable Entry	bottom-top
Operation Temperature	-25 ~ 70ºC
Humidity	0 ~ 95% (non-condensing)
Noise	< 55 dB
Alarm	buzzer + LED indicators (+optional LCD display)
Dimension	600 * 900 * 1100 mm
Net Weight	183 kG
Configuration
Cabinet Model	NPH-M150
Power Module Quantity	3 EA
Capacity	15 kVA
Physical
	440 * 590 * 134 mm; 21 kG

PRODUCT OVERVIEW

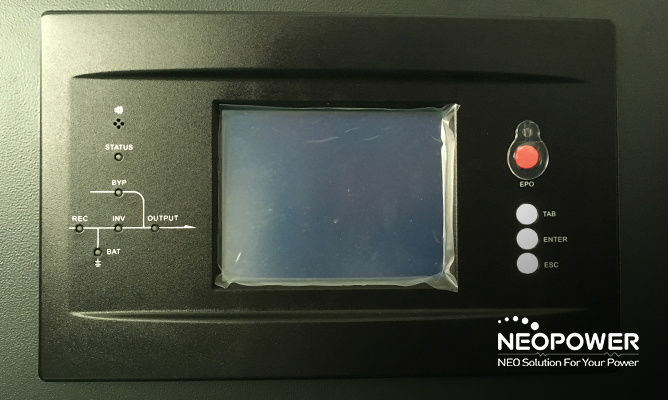

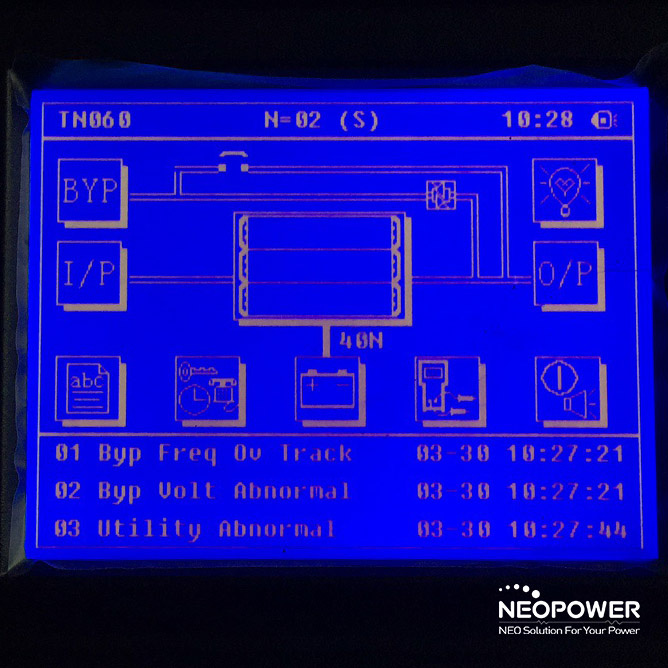

TOUCH SCREEN

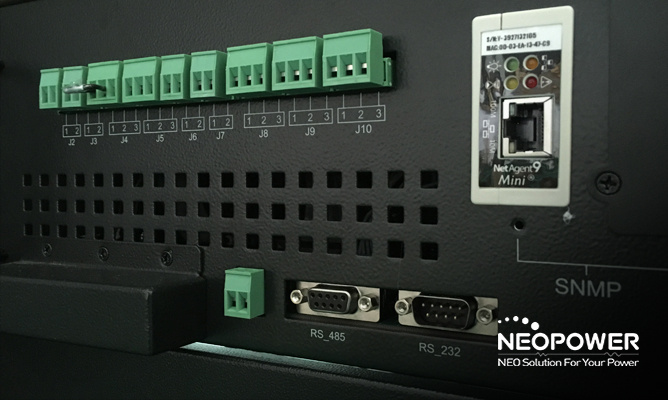

COMMUNICATION PORT

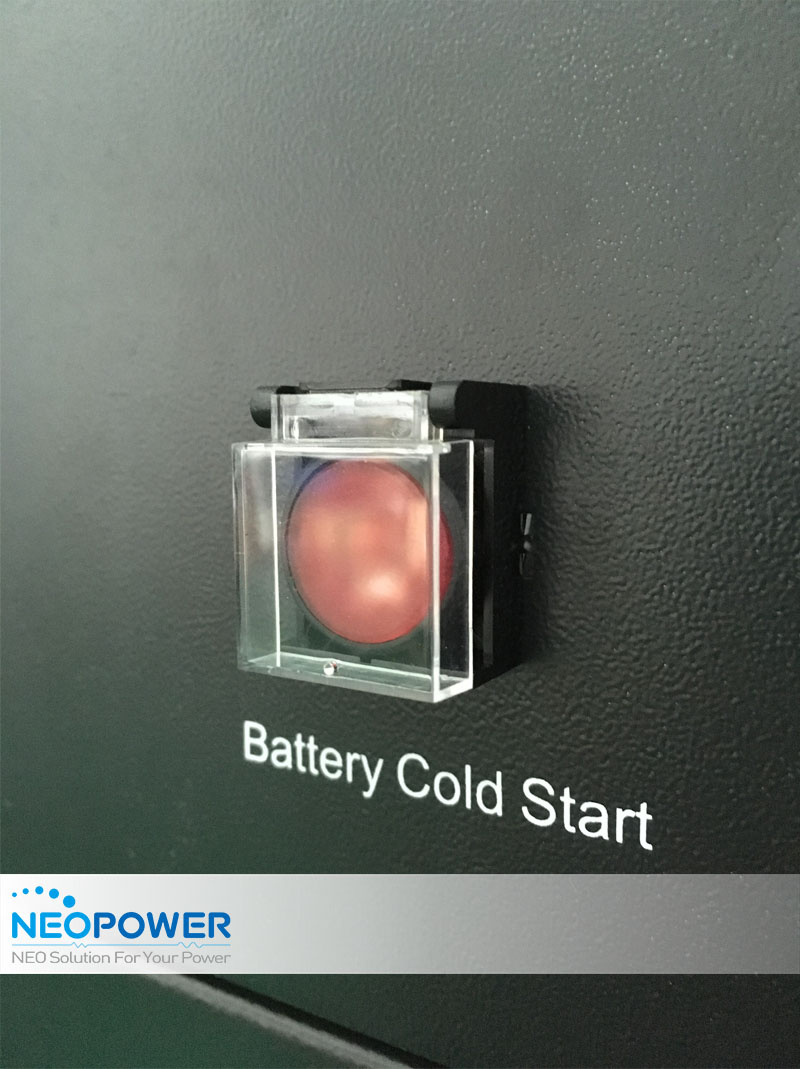

COLD START FUNCTION

FEATURES

Hot-Swappable
N+X Redundancy
Modular Architecture
Up to 8 Parallel Units
Bottom-Top Cable Entry
Front Access
Bypass Mode
Automatic Restart
No Noise Operation
98% ECO Efficiency
Unattendance Remote Control
Built-in Bypass Maintenance Switch
