45W AC 100-240VAC to DC 12V 3.5A DIN Rail Switch Mode Power Supply Hdr-45-12 Ce RoHS ERP ISO9001

Name: 45W AC 100-240VAC to DC 12V 3.5A DIN Rail Switch Mode Power Supply Hdr-45-12 Ce RoHS ERP ISO9001
Brand: all-electronics-online.com
SKU: 824926615
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 5.53-6.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDR-45-12
Type Of Output:	Single Output(AC/DC to DC),Constant Voltage
Type Of Power Supply:	DIN Rail and Plastic Case Power Supply
Output Voltage:	5VDC,12VDC,15VDC,24VDC Can Be Offered
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	45W
Input Voltage:	AC85~264
Brand:	Dhecn

Product Description

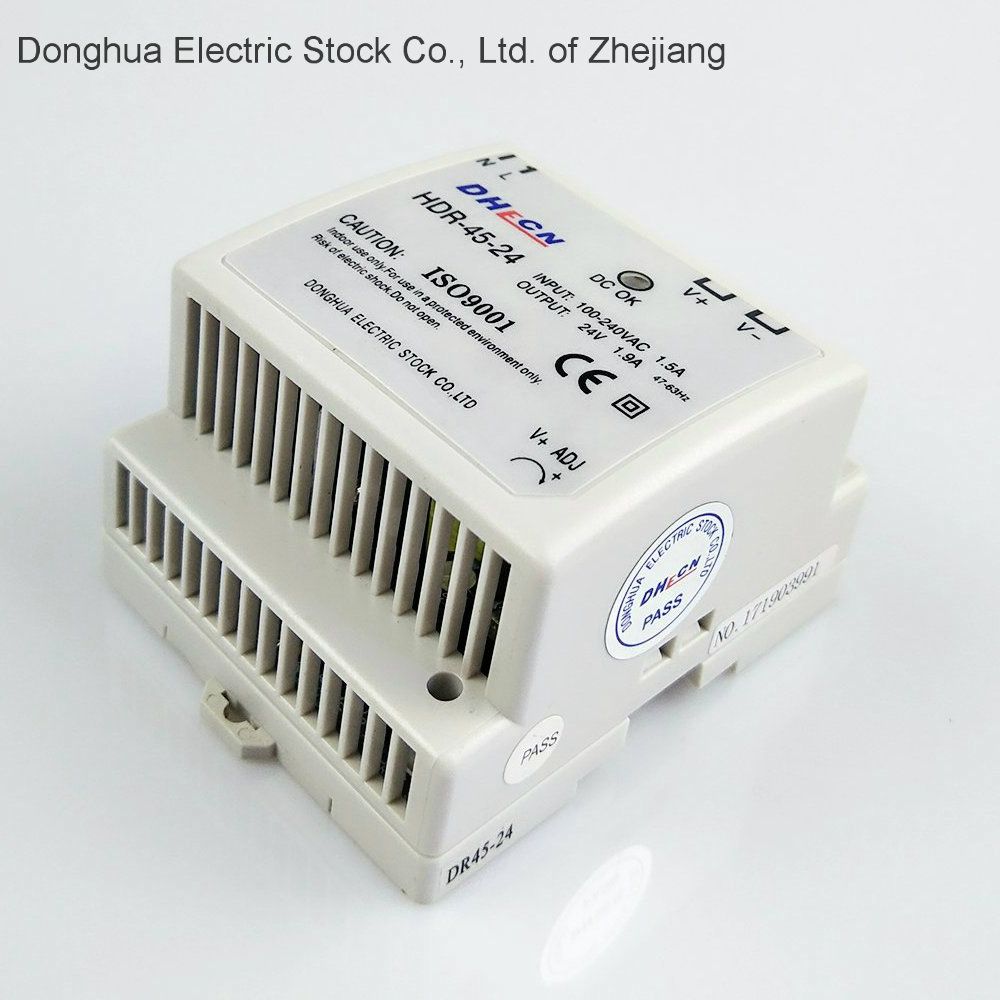

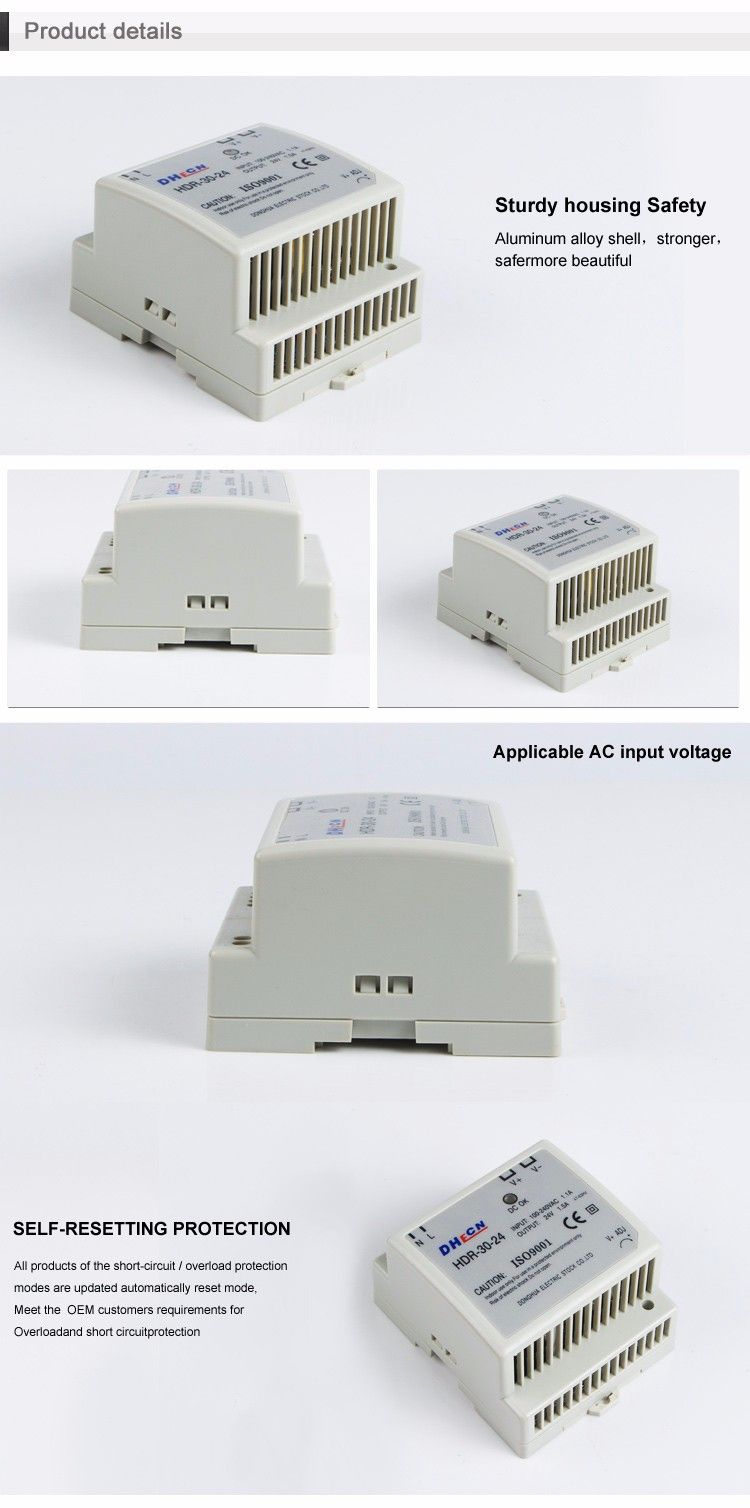

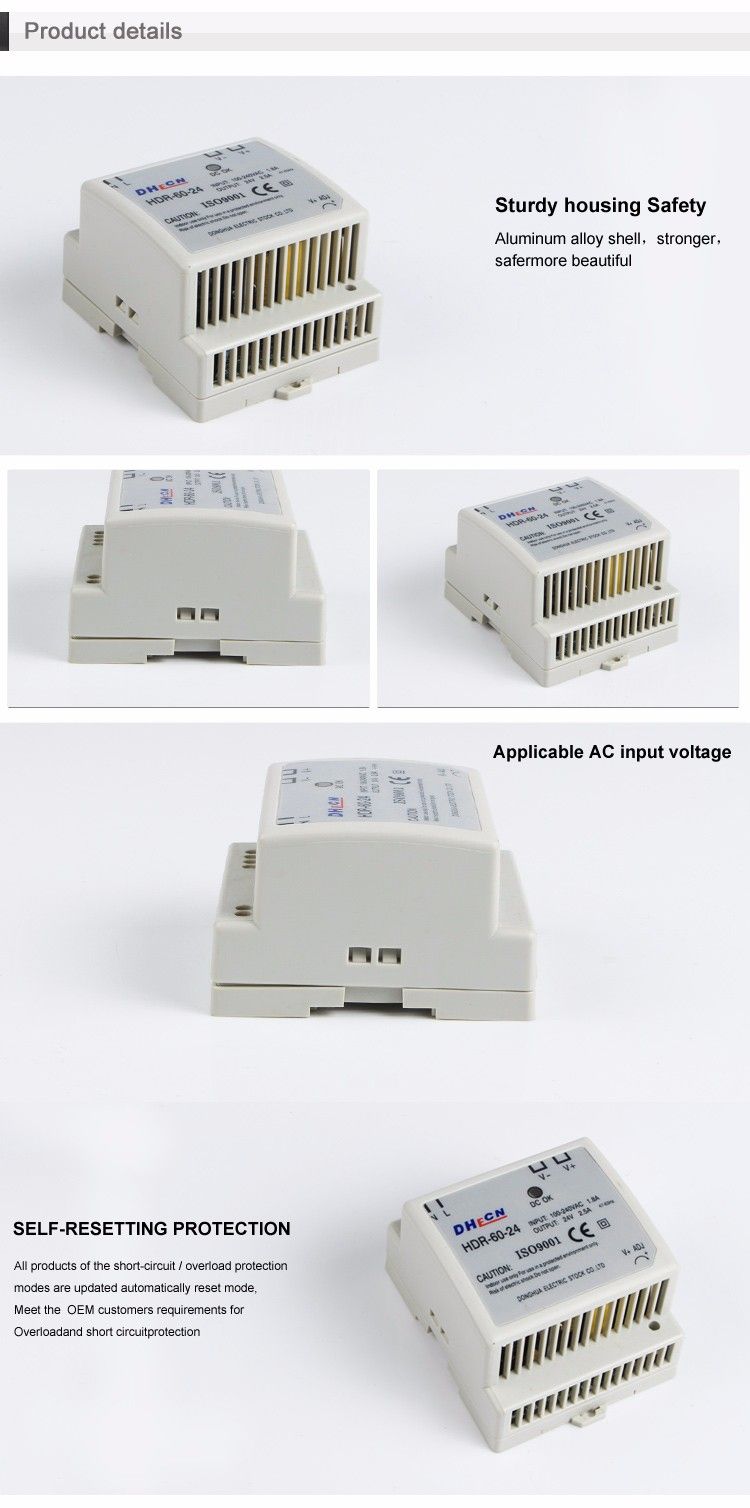

HDR-45,45W Din rail switching power supply
5VDC,12VDC,15VDC,24VDC can be offered
Features:
·Universal AC input/ full range
·Protections: Short circuit/ Over load/ Over voltage/ Over · temperature
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·LED indicator for power on
·100% full load burn-in test
·Fixed switching frequency at 100KHz
·1 year warranty
·Dimensions: 93*78*67mm (L*W*H)

MODEL		HDR-45-5	HDR-45-12	HDR-45-15	HDR-45-24
OUTPUT	DC Voltage	5V	12V	15V	24V
	Voltage Tolerance	±2%	±1%	±1%	±1%
	Rated Current	5A	3.5A	2.8A	2A
	Current Range	0-5A	0-3.5A	0-2.8A	0-2A
	Rated Power	25W	42W	42W	48W
	Ripple & Noise	100mVp-p	200mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	Setup, Rise, Hold Time	800ms,60ms,100ms/230VAC at full load
INPUT	Voltage Range	85~264 VAC47~63 Hz;120~370VDC
	AC Current	1.5 A/115 V 0.75A/ 230 V
	Efficiency	72%	77%	77%	80%
	Inrush Current	Cold start 28A/115V 56A/230V
	Leakage Current	<1mA/240VAC
PROTECTION	Over Load	105%~150%
		Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage	115%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temp	Tj 135 typically (U1) Detect on heat sink of power transistor,shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	Working Temp., Humidity	-10ºC~+50ºC;20%~90 %RH
	Storage Temp., Humidity	-20ºC~+85ºC;10%~95 %RH
	Vibration	10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL508,TUV EN60950-1
	EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2
OTHERS	Weight	0.31Kg
	Packing	48pcs/16.1Kg/1.3CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

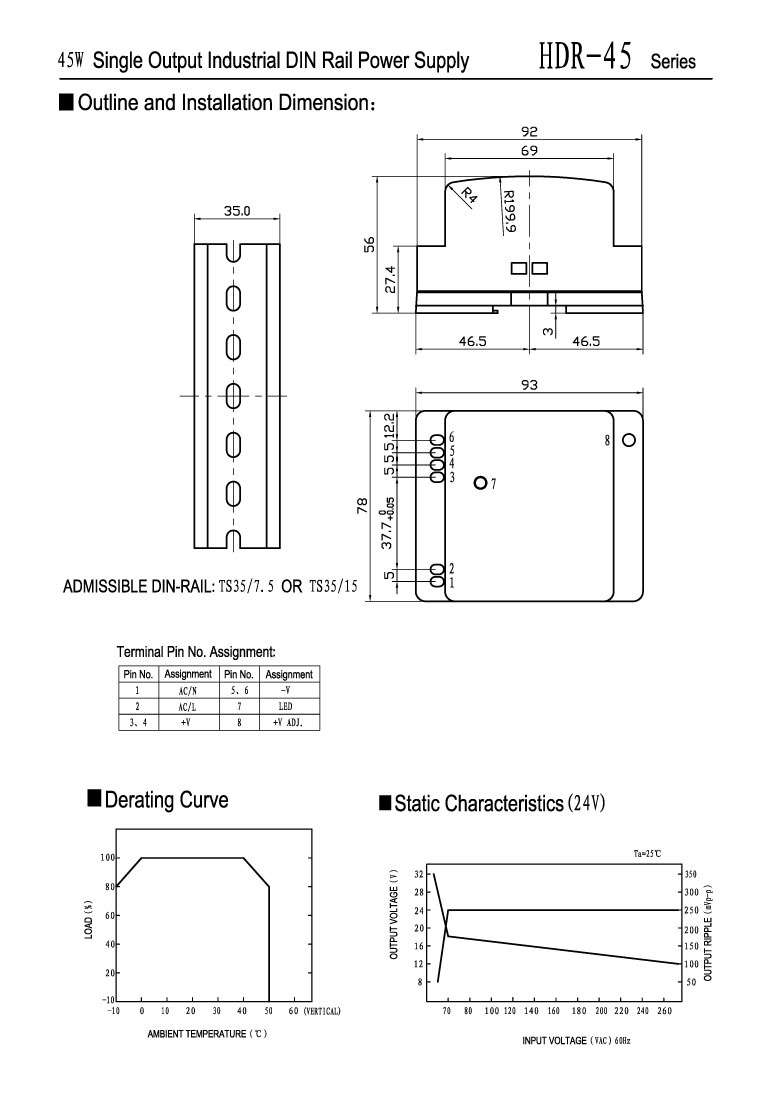

HDR-30, HDR-45, HDR-60 are the same dimension.

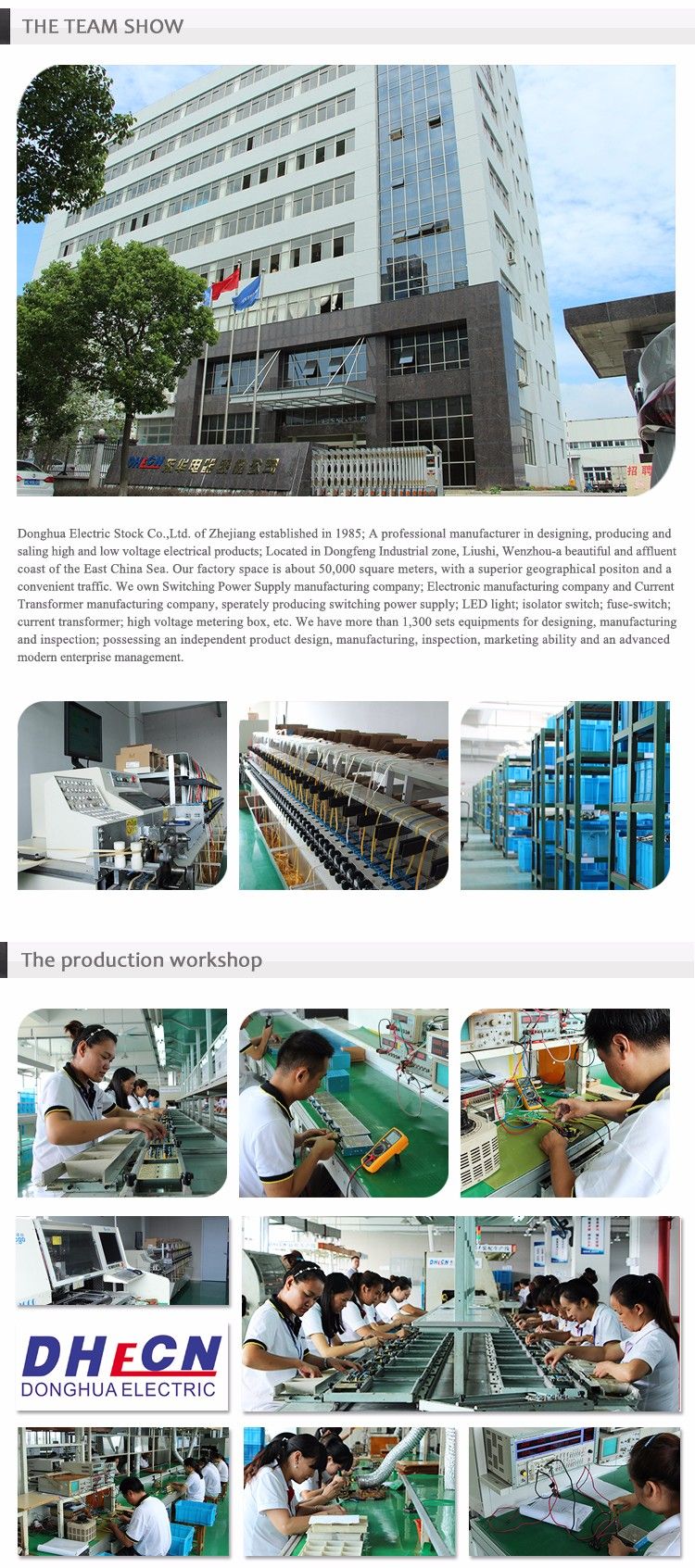

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
