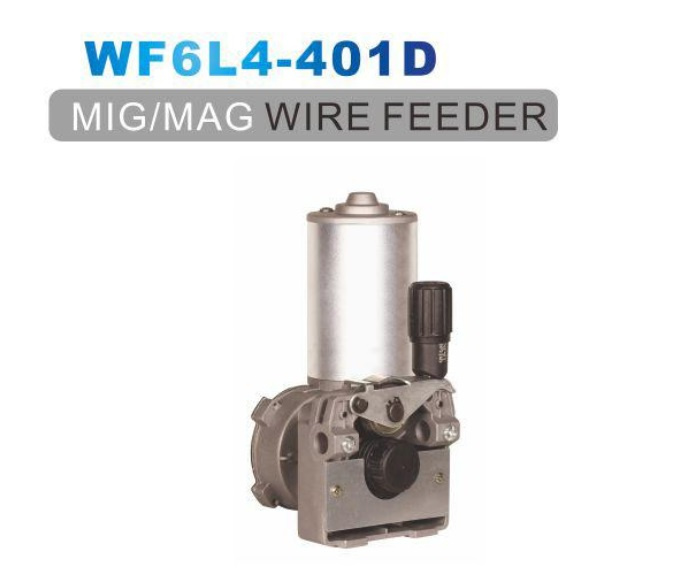

45W Fast Speed 16m/Min Wire Feeder Motor for Wire Feeder Machine
| Price: |
US $ 30/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
WF6L4 -402D |
| Usage: |
Fan, Home Appliance |
| Construction: |
Permanent Magnet |
| Voltage: |
24VDC |
| Free Load Speed: |
180rpm |
| Free Current: |
1.2A |
| Stall Torque: |
18n.M |
| Stall Current: |
15A |
| Wire Feeder Fram Type: |
63L/76L |
| Wire Feeder Roll Size: |
30*10mm |
| Apply For Wire Roll Weight: |
15kg 5kg |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce, RoHS |
| Brand: |
OEM |

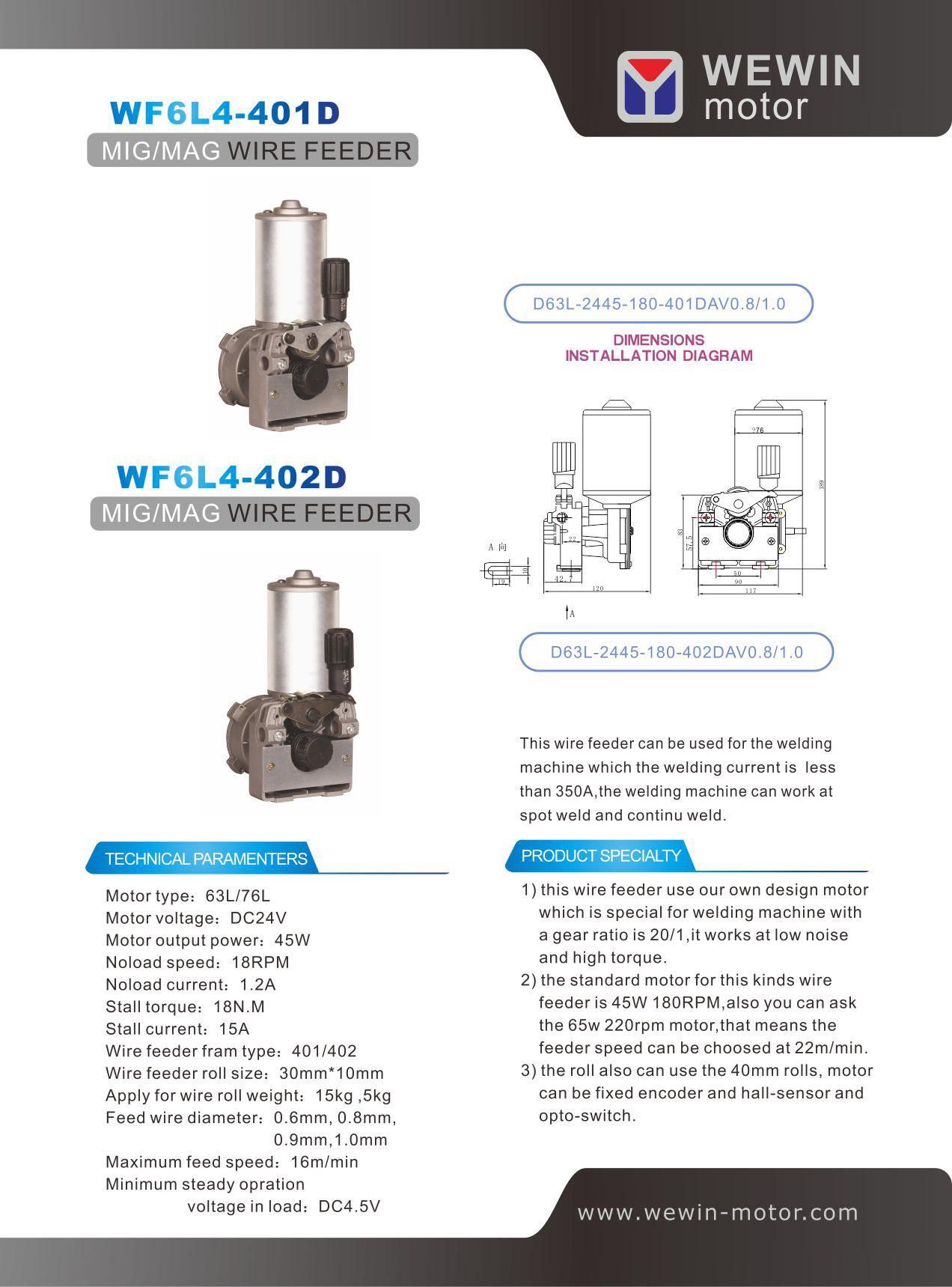

Product Description
Market:Special for welding machine which the welding current is less than 200A,the welding machine can work at spot weld and continue weld
Motor Type: 63L/76L
Motor Voltage: DC24v
Motor output power: 45W
No load speed : 180RPM
No Load current : 1.2A
Stall torque: 18N.M
Stall Current: 15A
Wire feeder fram type: 401/402
Wire feeder roll size : 30MM*10MM
Apply for wire roll weight 15kg 5kg
Feed wire diameter: 0.6mm 0.8mm 0.9mm 01.0mm
Maximun feed speed: 16m/min
Minimum steady operation voltage in load: 4.5DC V
