45W Single Output Switching Power Supply (HS-45)

Name: 45W Single Output Switching Power Supply (HS-45)
Brand: all-electronics-online.com
SKU: 614387485
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 7.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Dhecn
Input Voltage:	AC85~132/170~264

Product Description

Features:
· High efficiency, high reliability, low cost
· AC input range selected by switch
· 100% full load burn-in test
· Protections: Short circuit / Over load
· LED indicator for power on
· Cooling by fred air convection
· 1 year warranty

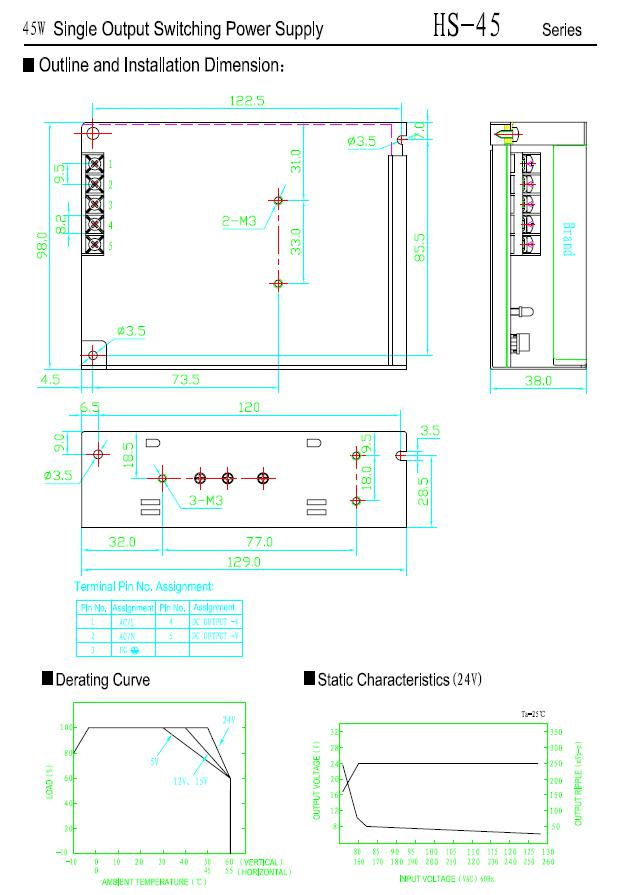

· Dimensions: 129*98*38mm (L*W*H)

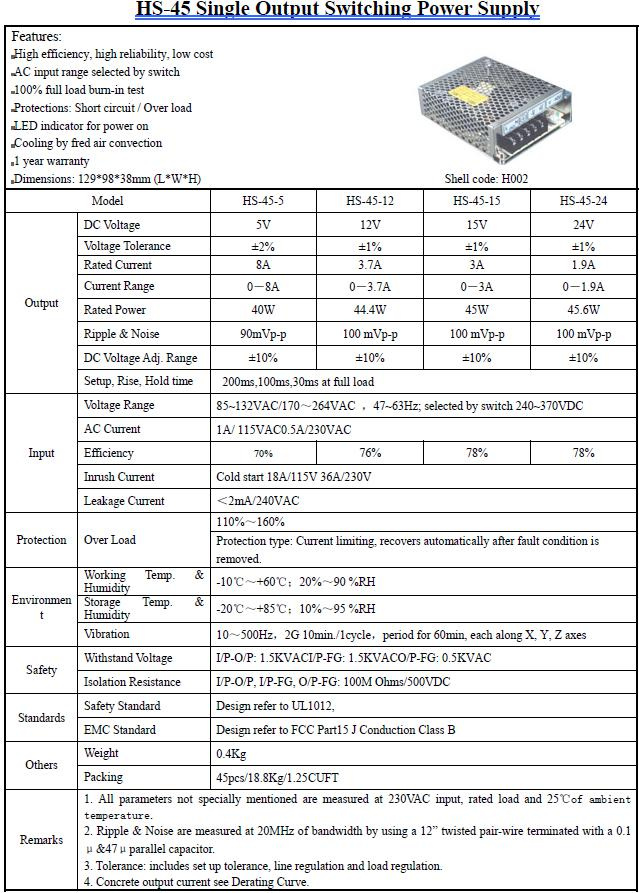

Specification:

1)INPUT
· Voltage Range: 85~132VAC/170~264VAC, 47~63Hz; Selected by
Switch 240~370VDC
· AC Current: 1A/ 115VAC0.5A/230VAC
· Efficiency: 70%(HS-45-5); 76%(HS-45-12); 78%(HS-45- 15); 78%(HS-45-24);
· Inrush Current: Cold start 18A/115V 36A/230V
· Leakage Current: <2mA/240VAC

2)Protrction
· Over Load 110%~160%
Protection type: Fold back current limiting, recovers automatically after fault condition is removed.

3)Environment
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)Safety And Standard
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012,
· EMC Standard: Design refer to FCC Part15 J Conduction Class B

5)Output
· Model HS-45-5 HS-45-12 HS-45-15 HS-45-24
· DC Voltage 5V 12V 15V 24V
· Voltage Tolerance ± 2% ± 1% ± 1% ± 1%
· Rated Current 8A 3.7A 3A 1.9A
· Current Range 0-8A 0-3.7A 0-3A 0-1.9A
· Rated Power 40W 44.4W 45W 45.6W
· Ripple & Noise 90MVP-p 100 MVP-p 100 MVP-p 100 MVP-p
· DC Adjustment Range ± 10% ± 10% ± 10% ± 10%
· Setup, Rise, Hold Time 200ms, 100ms, 30ms at full load
