47k Ohm 3% Temperature Measurement Ntc Thermistors (MF58)

Prod Model:	MF58
Technology:	Wirewound
Glass-Sealed:	Solid Structure
Resistance Tolerance:	1%
Rated Power:
Temperature Coefficient:
Operating Temperature:	-45--+300
High Cost Performance:	Economical and Practical
Dgood Heat Resistance:	High Precision
Lead Type:	Leadless
Craft:	Ordinary Wire Wound
Resistance:	Sensitive Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Thermal Resistor
Application:	Temperature Accurate Measurement
Brand:	Hw

Product Description

47K Ohm 3% Temperature Measurement NTC Thermistors (MF58)
Diode MF-58 NTC Thermistor with 10k & 5% for Mobile phone batteries

NTC Thermistor is used in general purpose temperature measurement solutions for residential, industrial, and commercial applications. The thermistor element is epoxied into the Stainless Steel probe that is quite sensitive and responds quickly to changes in the temperature. The sensor element used is a 10K Thermistor and can be used with many popular brands of RT manufacturers.

Product Brief:

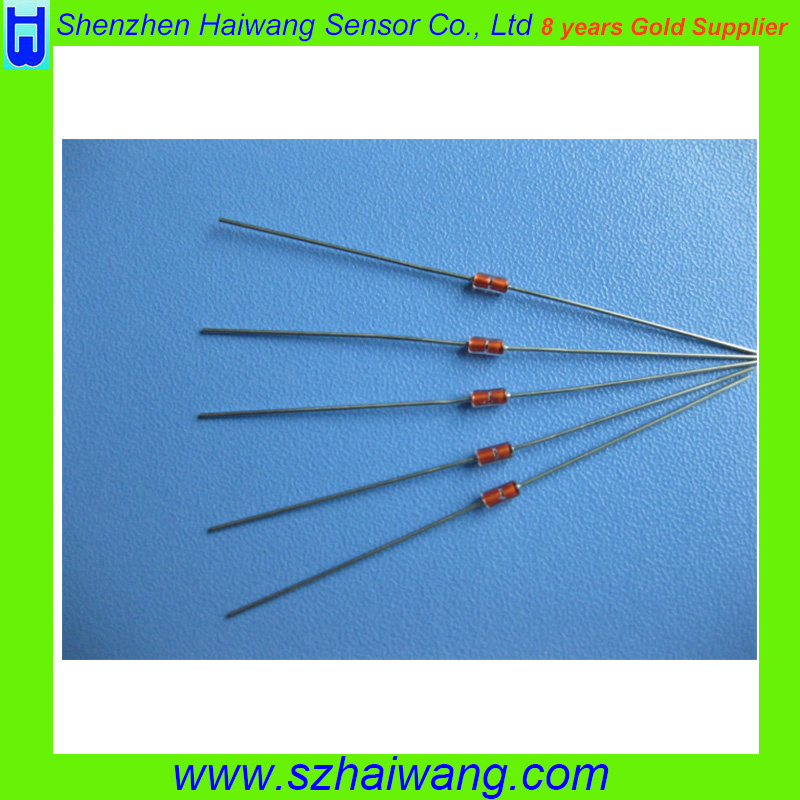

This model adopts the combination of ceramic process and semiconductor process technology, for both ends of the axial lead to the pure glass encapsulation structure.

NTC Thermistor Features:
1.Good stability, high reliability
2.Wide resistance range: 0.1 ~ 1000KΩ
3.High resistance precision
4.Because use glass packaging, can be used under high temperature and humidity and other harsh environments
5.Small size, light weight, strong structure, easy for automation installation(on the printed circuit board)
Thermal speed and sensitivity

NTC Thermistor Application:
1.Temperature control and temperature detection for household appliances (such as air conditioner, microwave oven, electric fans, electric heating furnace, etc.) ;
2.Temperature measurement or temperature compensation for office automation equipment (such as copiers, printers, etc.) ;
3.Temperature control and inspection for industrial, medical, environmental protection, meteorology, food processing equipment;
4.Liquid level indicator and flow measurement;
5.Mobile phone batteries;
6.Temperature compensation for Instrument coil, integrated circuits and quartz crystal oscillator and thermocouple

FM58 parameter sheet

Model	R 25(KΩ)	R Tolerance	B Value(25/50ºC)	Rated Power (mw)	Dissipation Factor (mW/ºC)	Temperature Coefficient(S)	Operating Temperature(ºC)
MF58 MF58 MF58 MF58 MF58 MF58  MF58  MF58 MF58 MF58 MF58 MF58 MF58 MF58	1 2 3 4.7 (Common) 5 10 (Common) 20 (Common) 47 (Common) 50 (Common) 100 (Common) 150 200 (Common) 470 500 Other can be customized	F=±1% G=±2% H=±3% J=±5%	3100 3270 3380 3435 (Common)  3600 3950  (Common) 4000 4050 4150 4300 4500	≤50	≥2.0 In quiescent air	≤20  In quiescent Air	-45~+300ºC


How to order:
In order to help you get the exact model, pls offer the following necessary info:
1.The  rated resistance at 25°C: R25°C=________.
2.The B value: B25/50=________ or  B25/85=__________.
3.Resistance tolerance:________.
4.The application of ________.
5.The range of operation temperature: ______°C  to _______°C

Our Service:
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
