| Core Reinforce: |
Aramid Yarn |
| Central Strength Member: |
All Dielectric |
| Jacket Material: |
LSZH |
| Fiber Count: |
48~144 |
| Temperature Rating Operation: |
-20ºC ~+60ºC |
| Storage: |
-20ºC ~+60ºC |
| Crush Resistance(IEC794-1): |
1000n/100mm |
| Applicaton 1: |
Connected to Connectors of Various Models Intercon |
| Applicaton 2: |
Ceiling Laying Surface Laying etc. |
| Applicaton 3: |
Indoor Level and Vertical Laying. |
| Application: |
FTTH, FTTB, LAN, CATV |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Brand: |
Takfly |
| Sheath Material: |
LSZH |
Product Description

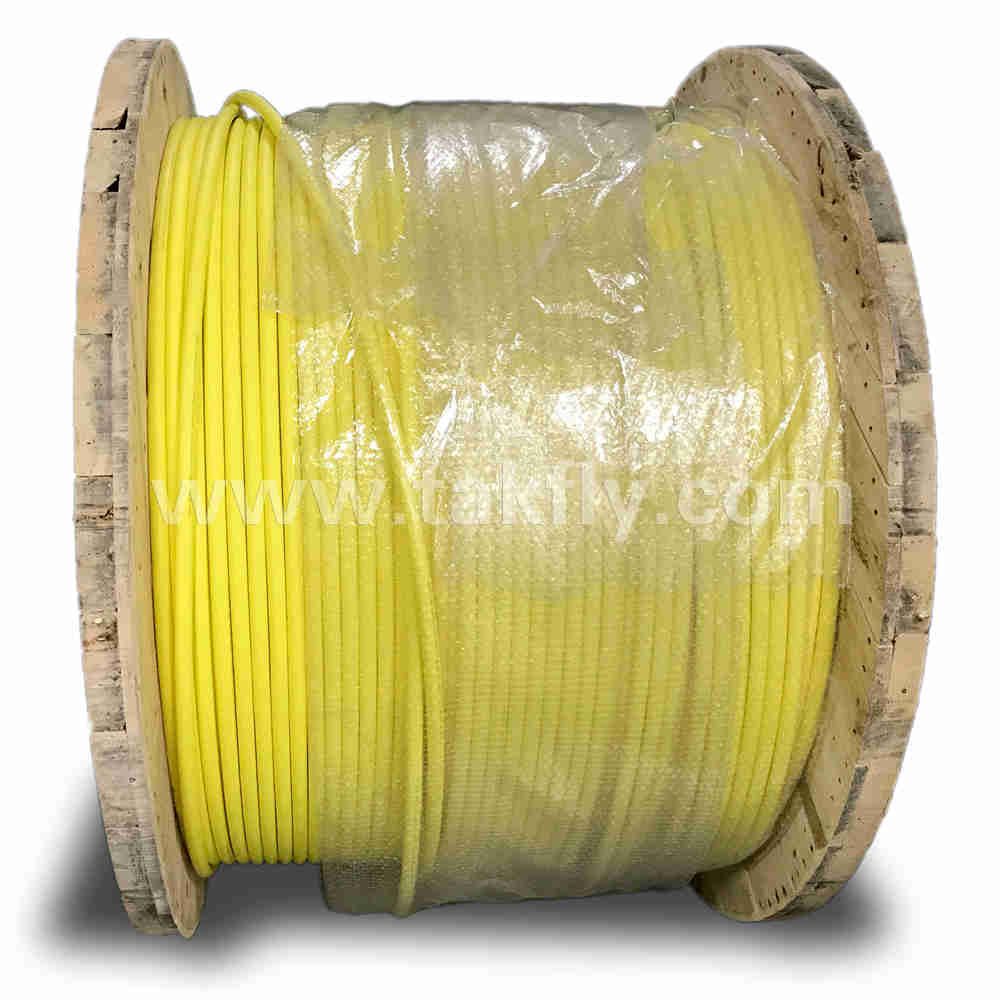

48-144 Multicore FTTH Indoor Distrubution Loose Tube Fiber Optic Cable(GJFJZY)Intro:48-144 Cores FTTH Cable/Indoor cable/ Multicore cable/Distribution Cable/Loose Tube Fiber optic Cable
Parameter:FTTH Multicore Indoor Distribution Type cable for fanout or induct
Application:Telecommunications /FTTH /FTTX /LAN /WAN /CATV etc.
Description:Distribution Tight Buffer Optical Cable use 48~144 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of aramid yarn as strength member, then completed with a layer of PVC or LSZH material as out jacket.
Product Model:GJFJV
The cable fulfils the fire performance test of IEC332-1.
Features:1. Multi cable design.
2. Multi cable with independent strength member.
3. Non-metal central strength member.
4. Fiber Counl:48~144
Applicaton:
1. Connected to connectors of various models interconnect.
2. Ceiling laying surface laying etc.
3. Indoor level and vertical laying.
4. Backbone in LAN's
5. Indoor /outdoor in ducts
6. Internal wiring/Fan-outs
Construction Data:| Loose Tube fiber Diameter | 900±50µm |
| Loose Tube fiber color | 1.White | 2.Blue | 3.Orange | 4.Green | 5.Brown | 6.Grey |
| 7.Red | 8.Black | 9.Yellow | 10.Violet | 11.Pink | 12.Aqual |
|
| Core reinforce | Aramid yarn |
| Subunit color code | The units have sequential numbering printed on the surface for identification |
| Central strength member | All dielectric |
| Out jacket material | LSZH |
Technical Data-Physical:
| Fiber count | 48 | 60 | 72 | 96 | 108 | 144 |
| Cable diameter(mm) | 14.8±0.5 | 16.1±0.5 | 17.5±0.5 | 20.7±0.5 | 22.3±0.5 | 24.8±0.5 |
| Cable weight(kg/km) | appro. | appro. | appro. | appro. | appro. | appro. |
| 170 | 207 | 254 | 366 | 432 | 451 |
| Temperature rating | |
| Operation | -20ºC ~+60ºC |
| Storage | -20ºC ~+60ºC |
Technical Data-Mechanical:
Max. loading(IEC794-1) Installation
Operation | 1320N
400N |
Min bend radius(IEC794-1) Installation (mm)
Operation (mm) | 20×D
10×D |
| Crush resistance(IEC794-1) | 1000N/100mm |
Technical Data-Transmission:
| Fiber type | Attenuation | OFL
bandwidth | Effective
modal
bandwidth | 10
Gigabit
Ethernet
SX | Min
bend
radius |
Conditions | 1310/1550nm | 850/1300nm | 850/1300n
m |
850nm |
850nm |
/ |
| Typical | Maximum | Typical | Maximum |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

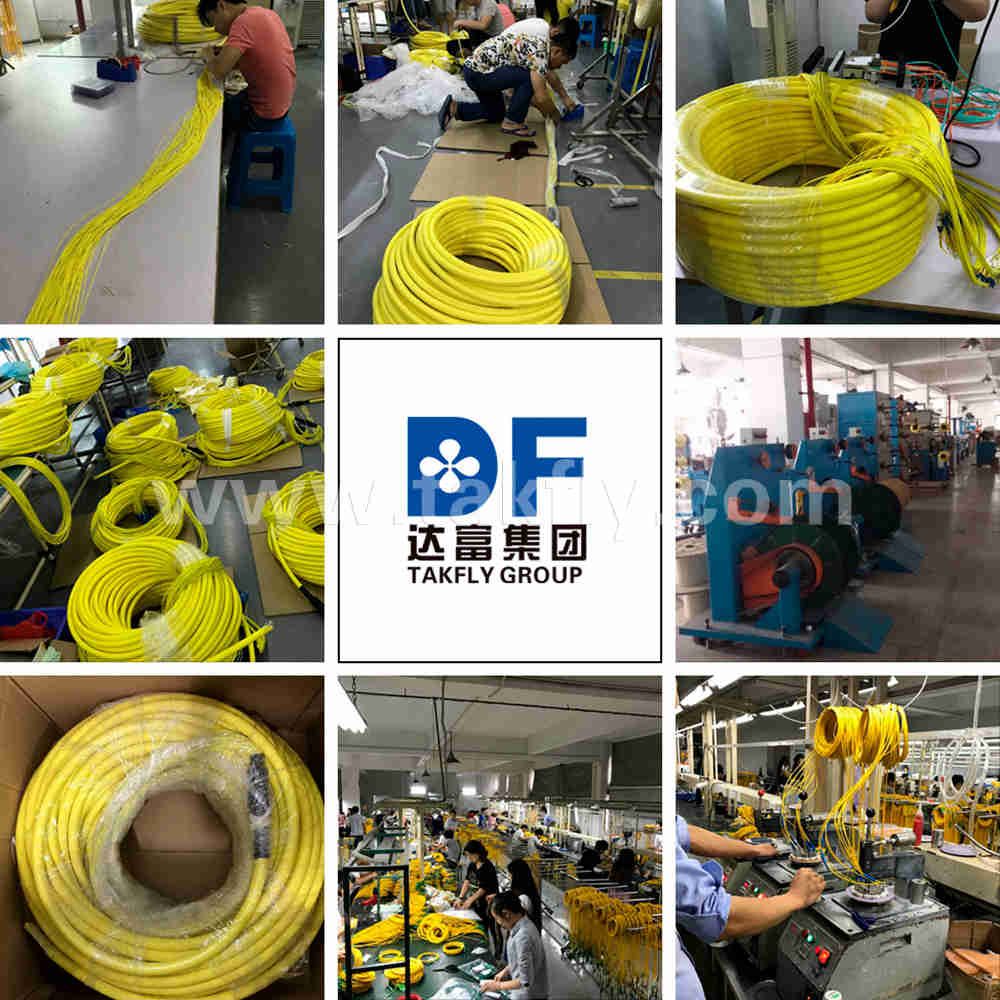

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
