48/72V/96V/102V 10kw Electric Car Motor
| Price: |
US $ 490-765/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HPM-10KA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
48V/72V/96V/120V |
| Rated Power: |
10kw |
| Efficeincy: |
91% |
| Phase Resistance (Milliohm): |
6.2/48V; 12.0/72V; 36.0/120V |
| Phase Induction(100kHz): |
68uh/48V; 154uh/72V; 504uh/120V |
| Weight: |
117kgs |
| Cooling: |
Air Cooling/Water Cooling |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Structure And Working Principle: |
Brushless |
| Certification: |
Ce |
| Brand: |
Golden Motor |
Product Description

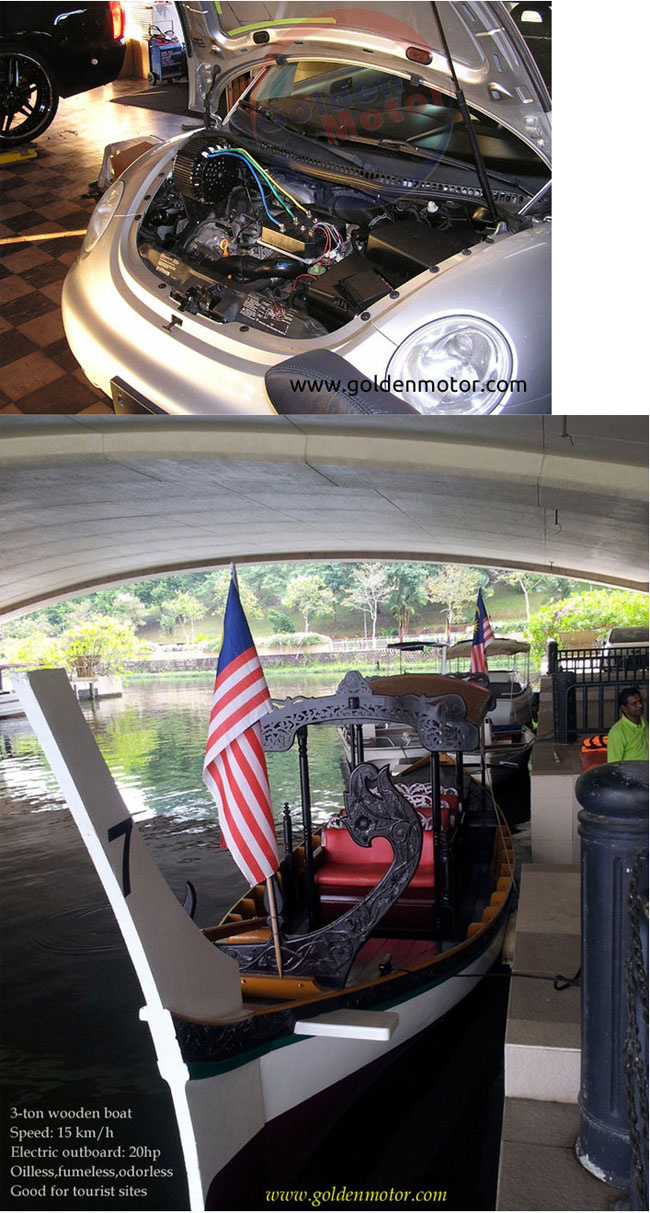

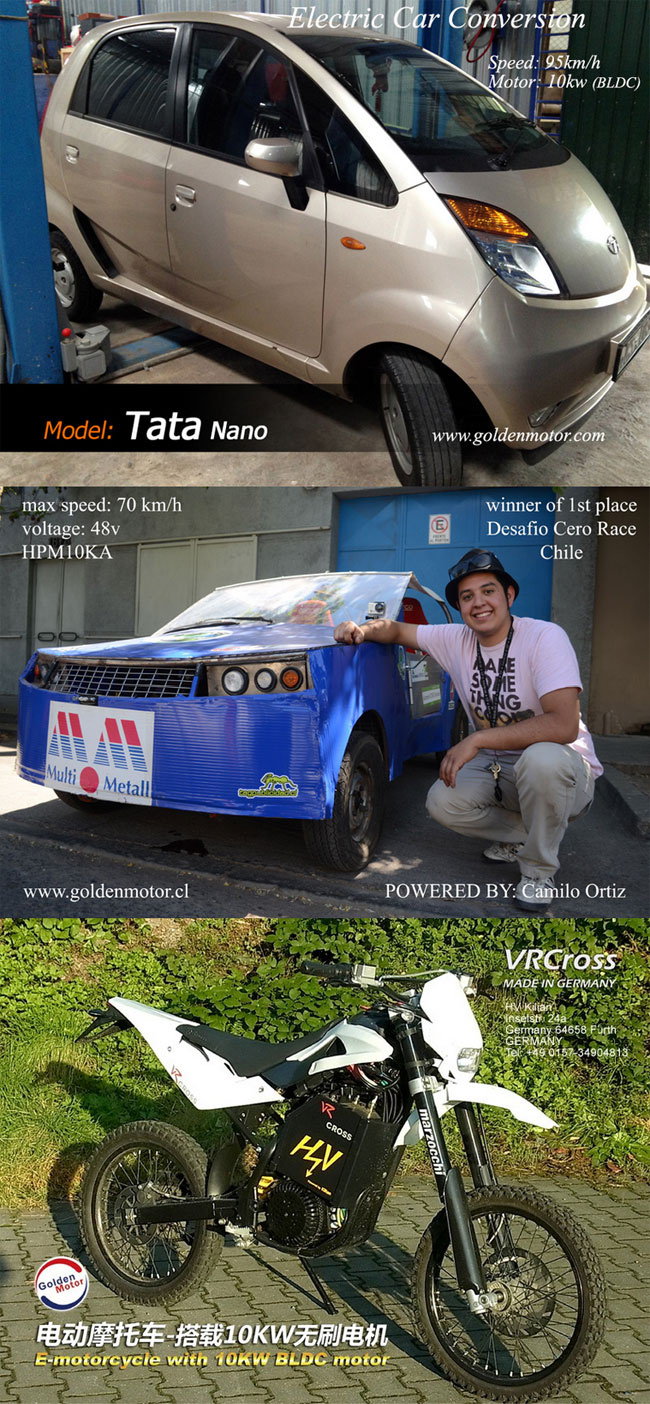

10kw electric car motor with controller set. The motor peak power is 20kw. The motor only 17kg, very compact10Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
Here is the 10KW BLDC motor info :Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: AluSmartum
Length (height): 170mm Diameter: 206mm | Type: 48V/10KW
Weight: 17kgs/unit |
|
|
Type: 72V/10KW
Weight: 17kgs/unit |
|
|

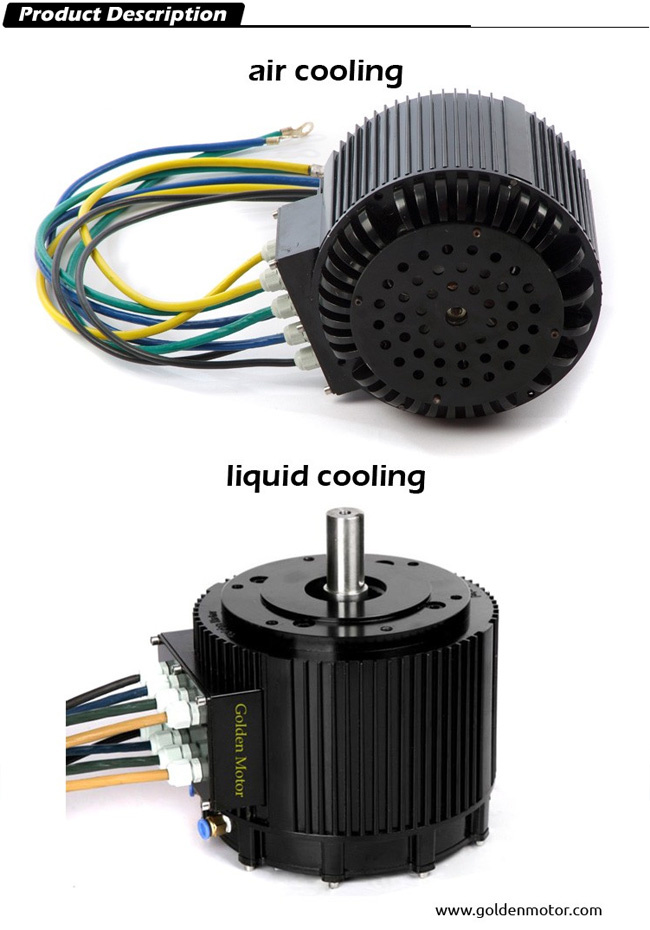

Here is the 10KW electric car motor and controller picture :
we also have the 5kw and 20KW electric car motor
Golden Motor Technology Co Ltd is emerging as one stop shop for key components of personal electric vehicles(PEV), from electric bikes to electric cars. You can always find suitable solutions, parts for your EV applications from us.
With our strong R&D team, established dealer networks over 50 countries, we are confident to provide our valuable customers with top quality products and services at competitive cost.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycle and electric car driving system, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes, power wheelchairs, highend battery packs, electric Motorcycle motors, electric Car motors, as well as their compatible controllers. With all this said, you need not look elsewhere trying to find a compatible part or accessory.
GoldenMotor is at TOP rankings over millions.
We have thousands of visitors a day, who browse our website for products. This is already a good marketing start for you and for us. GoldenMotor. COM is ranked at top positions over millions of other websites on Google for following product keywords:
Top Ranking Keywords:
hub motor
ebike motor
brushless motor
wheelchair motor
electric bike motor
bike conversion kit
brushless controller
electric scooter motor
eletric motorcycle motor
wheelchair conversion kit
brushless motor controller
electric wheelchair controller
brushless wheelchair controller
Our products are well accepted in China, North America and Europe markets. Over 80% of our products are exported to international markets. As a proof, there are huge number of electric shopping carts running in thousands of WalMart superstores across USA, are equiped with our patented hub motors with energy saving and feature rich functions.
You are cordially invited to join Golden Motor family to become our local dealer and promote polution free personal electric vehicles. This is a fast growing market worldwide, and you will benefit and enjoy from such partnership if you are ready.
Our team are thinking CREATIVE! Always!
Join Golden Motor's Global Dealers Network today!
Eletric vehicle business is profitable and rapid growth.
Let's work together as win-win partners!
