48 Core Armored Outdoor Optical Fiber Cable with Double Jacket

48 Core Armored Outdoor Optical Fiber Cable with Double Jacket
Price: US $ 0.89-3.99/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: TK-H0099
Warranty: 3years
Color: Black or Customized
Delivery Time: 3-7 Days
Samples: Available
Operation Temperature: -40~+70 Degrees
Cable Diameter: 12.8mm
Cable Weight: 180kg/Km
Storage Temperture: -40~+70 Degrees
Outer Sheath: Average 1.8mm
MOQ: 2km
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001

Product Description


48 core armored outdoor optical fiber cable with double jacket

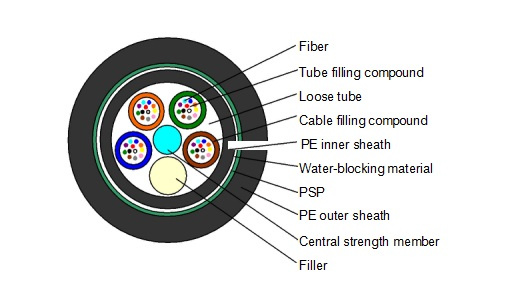

Cable Description:


Attentuation

G652≤ 0.36 dB/km @1310nm ≤ 0.22 dB/km@1550nm
G655≤ 0.40 dB/km @1310nm ≤ 0.23 dB/km@1550nm
50/125≤ 3.0 dB/km @850nm ≤ 1.0 dB/km@1300nm
62.5/125≤ 3.3 dB/km @850nm ≤ 1.0 dB/km@1300nm

Bandwidth50/125≥ 400 MHz·km @850nm ≥ 800 MHz·km @1300nm
62.5/125≥ 160 MHz·km @850nm ≥ 500 MHz·km @1300nm


Tensile StrengthLong Term  1000 N
Short Term  3000 N

Crush ResistanceLong Term 1000 N/100mm
Short Term 3000 N/100mm

Operating Temperature -40ºC to +70ºC
Storage Temperature -40ºC to +70ºC

Bending Radius Static 10×Dia.
 Dynamic 20×Dia.

Cable Diameter appro.12.8mm
Cable Weight appro.180 kg/km

Sheath ThicknessInner Sheath average 0.9 mm
Outer Sheath average 1.8 mm

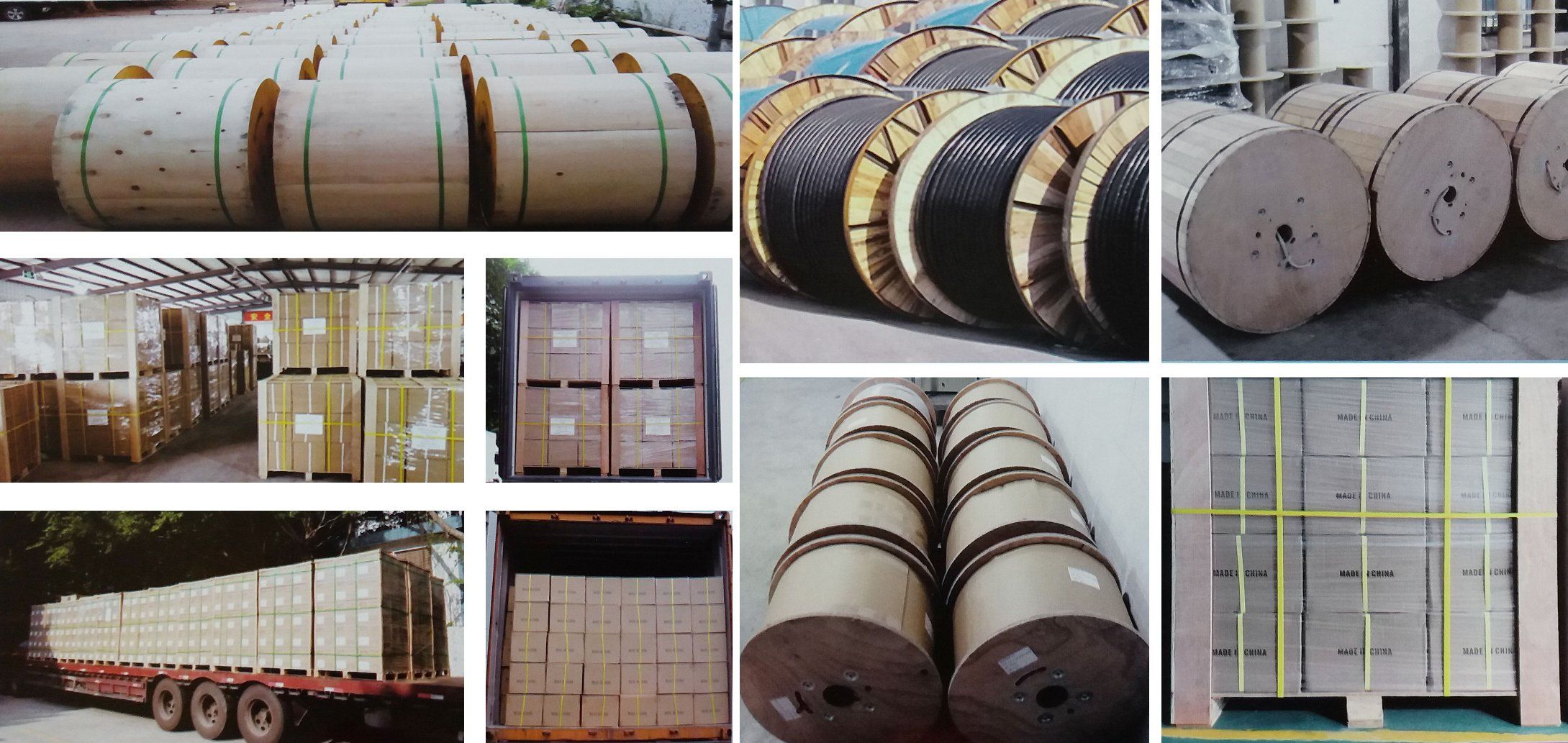

Packing:




Takfly Certification:
