48 Core Distribution Fiber Optic Cable with Kevlar

Name: 48 Core Distribution Fiber Optic Cable with Kevlar
Brand: all-electronics-online.com
SKU: 700118052
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 0.57/Meter
Trade Terms:	FOB,CIF,others
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Distribution Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Strength Member:	Kevlar
Jacket Color:	Black
Application:	Art
Type:	Multi-mode Fiber
Connection Structure:	FC-ST
Certification:	UL
Brand:	OEM or Geyida

Product Description

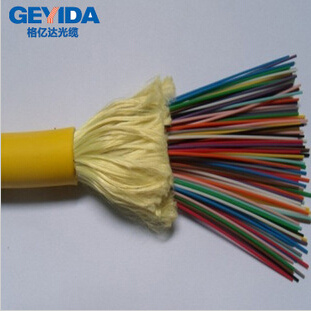

48 core distribution fiber optic cable with kevlar

Application:
Used in optical connections in optical communication equipment rooms and Used in indoor cabling, especially in poor laying conditions;Used in pigtails and patch cords:
Features
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Loose tubes filling compound
5. Crush resistance and rlesxibility
6. The following measures are taken to ensure the cable water tight
7. Single fiber reinforoad plastic as the central strength member
8.100% cable core filling
9. Aramid yarn strength member ensure good performance of tensile strength

Customize:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;Fiber Count: Fiber quantity on the cable Jacket Material:Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant palyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO),environmental thermasplatic polyurethane(TPU), or ther contracted material;Jacket Color:(Including color of tiber) meets the requirements of relevant standards, or other contracted color;Delivery Length: 1 km or 2km, or other contracted length;Cable Dimension:The nominal cable dimension, or other contracted dimension;Other Requirements: Other contracted special requests.

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70
storage/operating temperature:-40ºC to +70
