48 Core Outdoor Optical Fiber Cable with Aerial

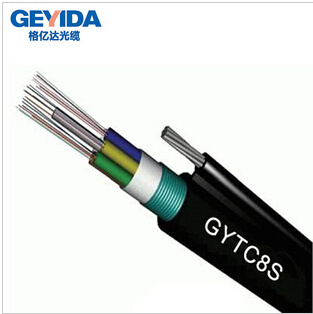

Name: 48 Core Outdoor Optical Fiber Cable with Aerial
Brand: all-electronics-online.com
SKU: 707976142
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 0.28/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	4000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	10.2+4.1mm
Strength Member:	Steel Wire
Fiber:	Sm/mm
Outer Jacket:	PE/HDPE
Self-Supported Member:	Steel Wire/Stranded Steel Wire
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Fiber
Brand:	Geyida or OEM
Sheath Material:	LDPE/MDPE/HDPE

Product Description

Description:
The fibers,250 um,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire locates in the center of core as a metallic strength member.The tubes(and fillers)are stranded around the strength member into acompact and circular core.After an Aluminum polyethylene laminate(APL) moisture barrier is applied around the cable core,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.Figure 8 cable GYTC8Y,GYTC8A are also available on request.This type of cable is specially applied for self-supporting aerial installation.

Features
1. With good mechanical properties and temperature characteristics
2. Loose tube material itself has good hydrolysis resistance and
High strength
3. Tube filled with special ointment, has carried on the key protection
To optical fiber
4. Good resistance to pressure and softness
5. Adopting the following measures to ensure that the cable waterproof

Stranded:
GYTC8S cable complies with Standard YD/T901-2009 as well as IEC60794-1

Performance:
Single strengthen core wire center
Loose tube filling special waterproof tube compound
Completely filled cable core
APL moisture barrier
PSP enhancing moisture-proof

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	/Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	/Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.25

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
