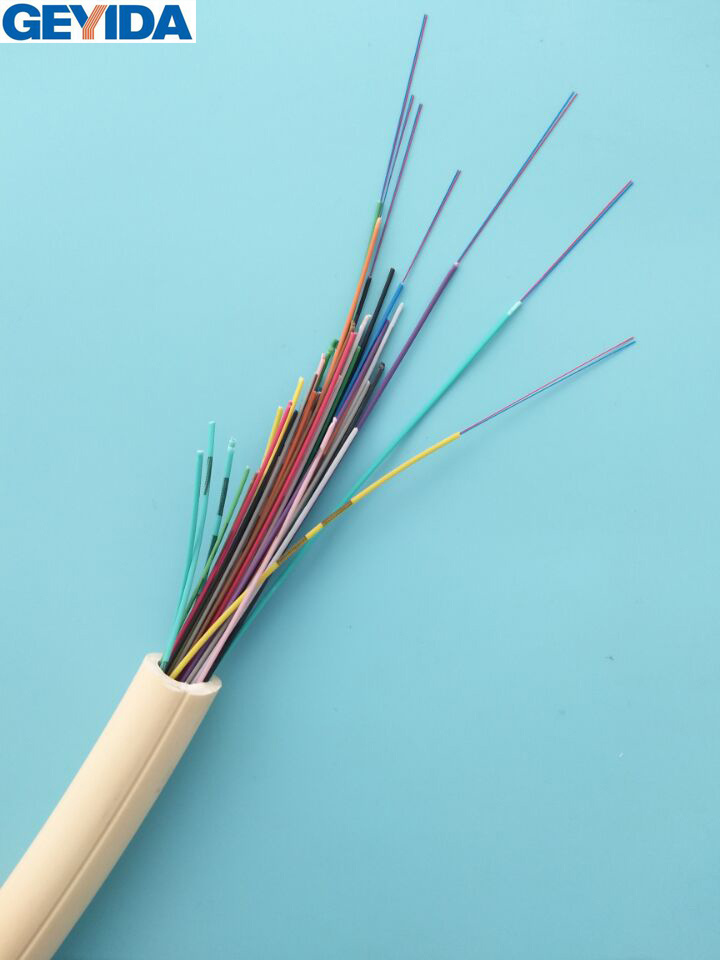

48 Indoor/Outdoor Cabling Cable (rise cable)

Name: 48 Indoor/Outdoor Cabling Cable (rise cable)
Brand: all-electronics-online.com
SKU: 810313825
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 0.78/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDA0482
Size:	13.5mm
Strength Member:	FRP
Tight Buffered Fiber:	Two Fibers in One Tube
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	All Connectors
Material Shape:	Round Cable
Brand:	OEM or Geyida
Sheath Material:	LSZH

Product Description

48*2 indoor/outdoor cabling cable

Application:
1.Used in network or as access cable from outdoor to indoor in customer premises network.
2.Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial cabling.

Features:
1.Good mechanical and environmental characteristics,convenient for achieving the branch optical line in cabling.
2. Flame retardant characteristics meet the requirements of relevant standards.
3.Soft,flexible easy to lay and splice and with big capacity data transmission
4.Meet various requirements of markets and clients

Cable Parameters

Fiber core	Size	Weight(kg/km)	Tensile		crush		Mind.Bend radius		Range of temperature
			Long term	Short term	Long term	Short term	dynamic	Static
48	13.5MM	60	100	200	300	1000	20D	10D	-20~+60ºC

Note:All the values in the table, which are for reference only, are subject to change without notice
The cable dimension and weight are in accordance with tight-buffered fiber of 0.9mm outer diameter
D is outer diameter of the round cable
The minimum bend radius (static)is 5D when G657 fiber is used

Options:
1.Fiber Type: G652d or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types fiber
2.Fiber count: Total number of fibers in the cable
3.Jacket material:environmental low smoke zero halogen flame retardant polyolefin(LSZH)
4.Jakcet color:(Including color of fiber)meets the requirements of relevant standards. or other contracted color
5.Cable Dimension: The nominal cable dimension,or other contracted dimension
6.Delivery length: 1KM or 2KM,or other contracted length
7.Other requirements: Other contracted special requests
