480VAC to 415VAC Step-Down Voltage Converter -Big Capacity Power Inverter

Prod Model:	BZT-200KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Apply For:	Stand Alone System
Output Wave Form:	Pure Sine Wave
Two Start Mode:	Reduction Voltage Start and Variable Frequency Sta
RS232 Or 485:	Optional
Display:	LCD
Frequency:	Can Adjustable
Power:	200kw
Product Type:	AC to AC

Product Description

480VAC to 415VAC Step-down voltage converter with sine wave output



Bangzhao pure sine wave series inverter is one of the most advanced DC to AC conversion products in the world, it has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is simple, stable, no noise and no pollution. It is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine etc. The inverter can also supply AC voltage to all kinds of power tools, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other power supply.
The inverter output waveform is pure sine wave; this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.
We can make products according to your requirements.



Technical Features:
1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of the load.
2, The output frequency can be set, this function is very convenient for customer.
3, The output voltage can be set between +20 % to -40 % of rated voltage. It's a great convenience to users.
4, The AC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.
5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.
6, Powerful data display and fault instruction function. LCD can display the AC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

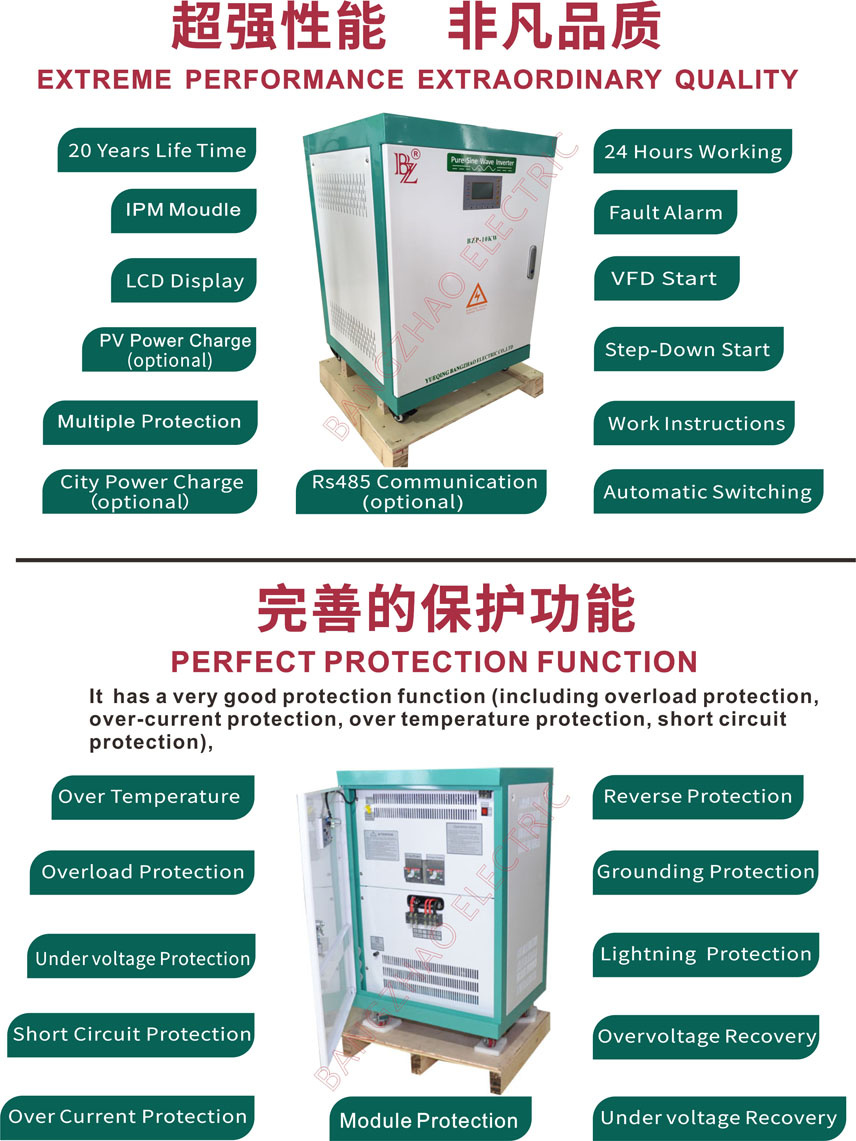

7, Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It's service life can up to 15 years or more.
8, Wide input voltage can be set according to customer's requirement. Input voltage range can be selected from 100-400V or 400-850V.
9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.



Technical Data


Model		BZT-200KW
Isolation mode		Low Frequency Transformer
AC Input	Rated voltage (VAC)	480V
	Rated current(A)	333A
AC Output	Rated output power	200KW
	Output waveform	Pure Sine Wave
	Rated Voltage	380VAC±3%
	Phases	3 phase 4 wire
	Rated current(A)	303A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	380/400/415/440VAC optional
	Power Factor(PF)	0.9
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate (THD)	<3%(Linear load)
	DynamicResponse(0 to 100% load)	5%,≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	Noautomatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20(indoor)
	Working Altitude(m)	≤2000
	Working temperature	-25~+55ºC
	relative humidity	0~90%,non-condensing
Mechanical dimension	Depth* Width * Height	1200x1500x1800mm
	Weight (Kg)	800Kg


Above parameter only for reference ,could be custom made to user specifications.




Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.

Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .

Q8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.

Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.

OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.

Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most

Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
