480W 24V Constant Voltage Programmable LED Power Supply

Name: 480W 24V Constant Voltage Programmable LED Power Supply
Brand: all-electronics-online.com
SKU: 818406825
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 98-135/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD720-SMT-24
Output Power:	480
Dimming:	0(0.05)~10V, PWM, External Resistor, Clock, DMX
Output Voltage:	24V
Output Current:	0~20A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	280X123X54 mm
Brand:	Fsp-Powerland

Product Description

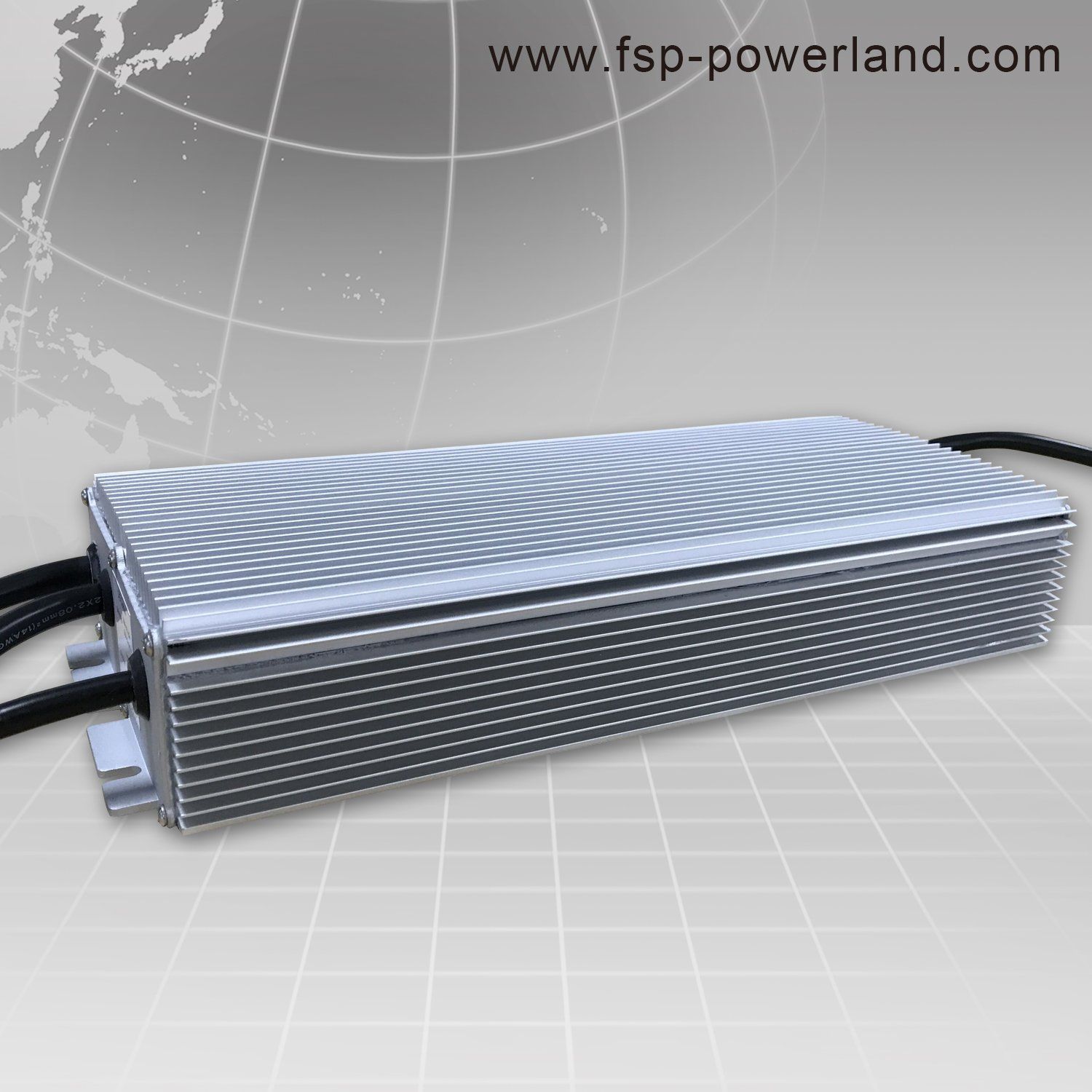

480W 24V Constant Voltage Programmable LED Power Supply

Powerland's PLD720-SMT-24 offers a constant voltage drivers with 108~305Vac unuversal input.

The output voltage is 24V,and designed with 93% efficiency and all-around protections.

Applications
Outdoor & indoor LED lights
LED lights with constant voltage
Street lights,high bay and low bay lights,LED panels

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
108~305Vac	480W	24V	0A … 20.00A	93%	90ºC	5.5A	592W	<20%	>0.95

* Based on 25oC ambient temperature, rated input voltage, and full load.

Features
>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant voltage output
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD720-SMT-24
Output Voltage	24V
Output Current	0~20A
Output Power	480W
Max. Voltage Ripple	150mVp-p
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current	5.5A
Max. Input Power	592W
Power Factor	>0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	93%
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70oC
Max. Case Temperature	90ºC
Surge Protection	5.5kV/11kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class A
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation(Primary to Secondary)	3750Vac / 10mAMax / 60seconds
Isolation(Primary to Earth)	1875Vac / 10mAMax / 60seconds
Isolation(Secondary to Earth)	500Vac / 10mAMax / 60seconds
Dimension	280x123x54 mm (11.02x4.84x2.13 inch)
Mounting Length	290 mm (11.42inch)
Overall Length	304 mm (11.97 inch)
Weight	3.53 kg ( 7.78lb)
Life Time	>70,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

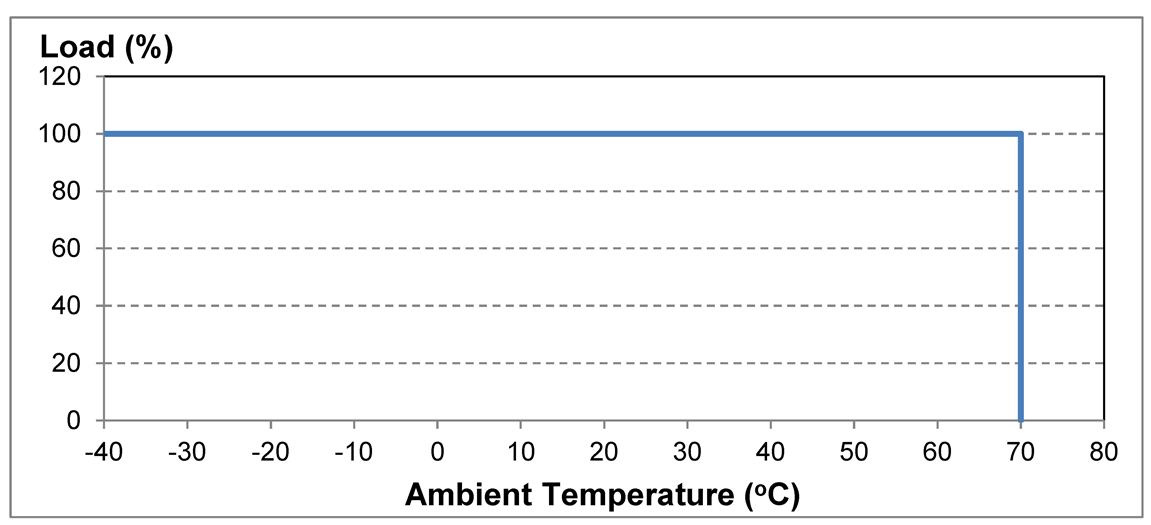

Dreating Curve

Static Characteristics

Electrical Specifications

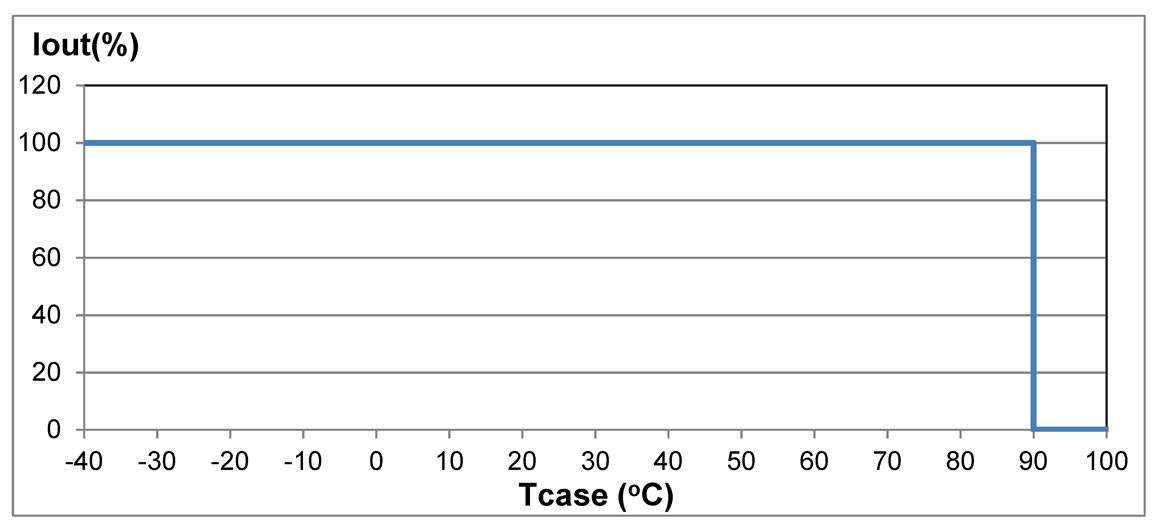

Output Current vs. Case Temperature (with ±5oC Tolerance)

Performance Characteristics

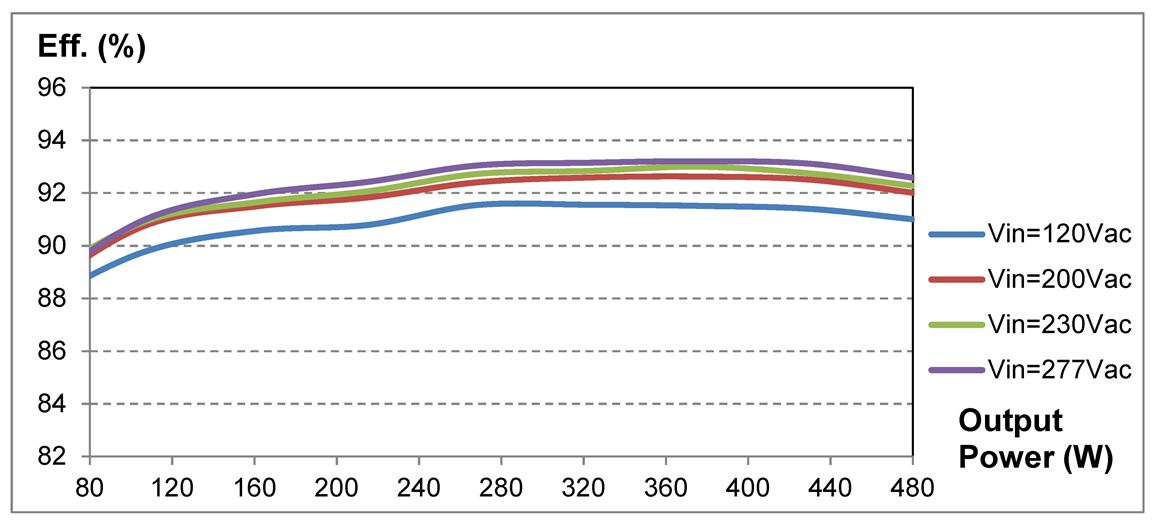

Efficiency vs. Output Power

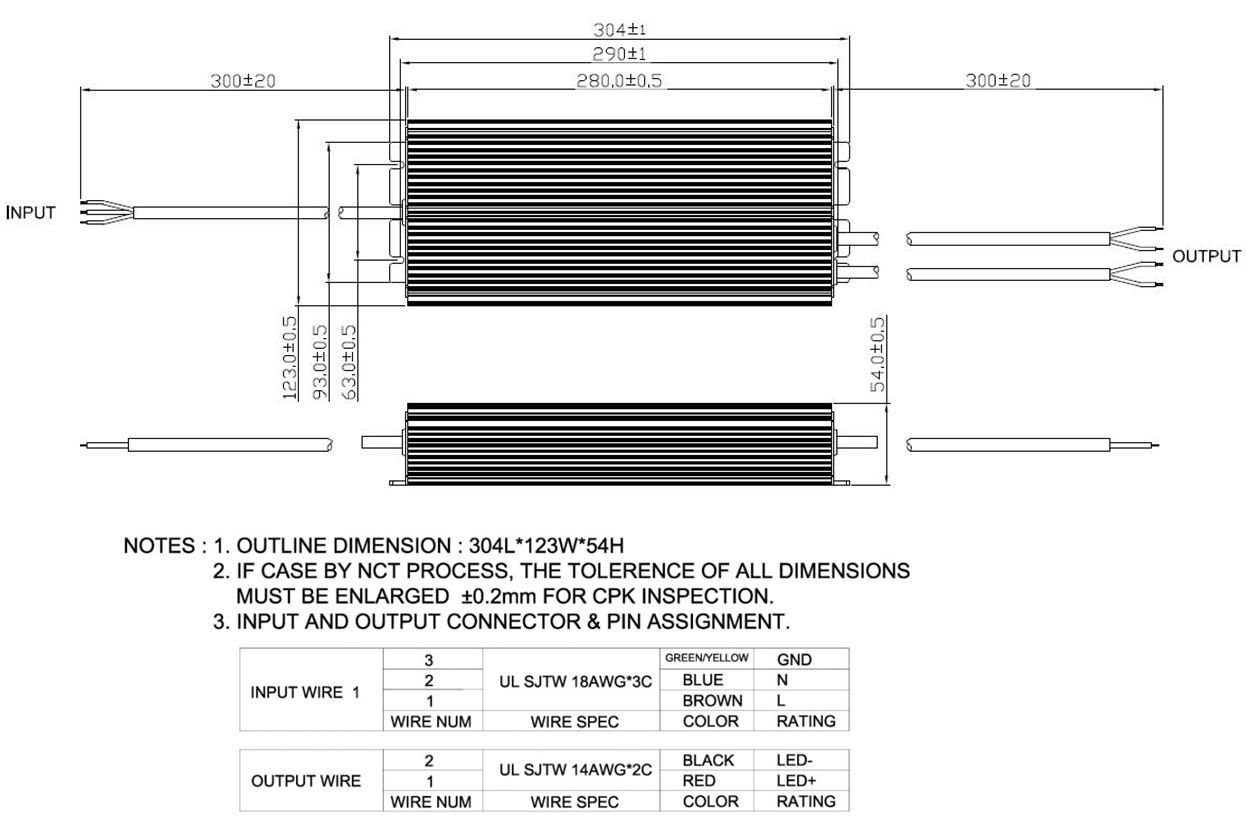

Mechanical Specification
