| Prod Model: |
PLD720-SMT-XXX |
| Output Power: |
480/720W |
| Dimming: |
0(0.05)~10V, PWM, External Resistor, Clock, DMX |
| Output Voltage: |
24~58.8V |
| Output Current: |
15~20A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
280X123X54 mm |
| Brand: |
Fsp-Powerland |
Product Description

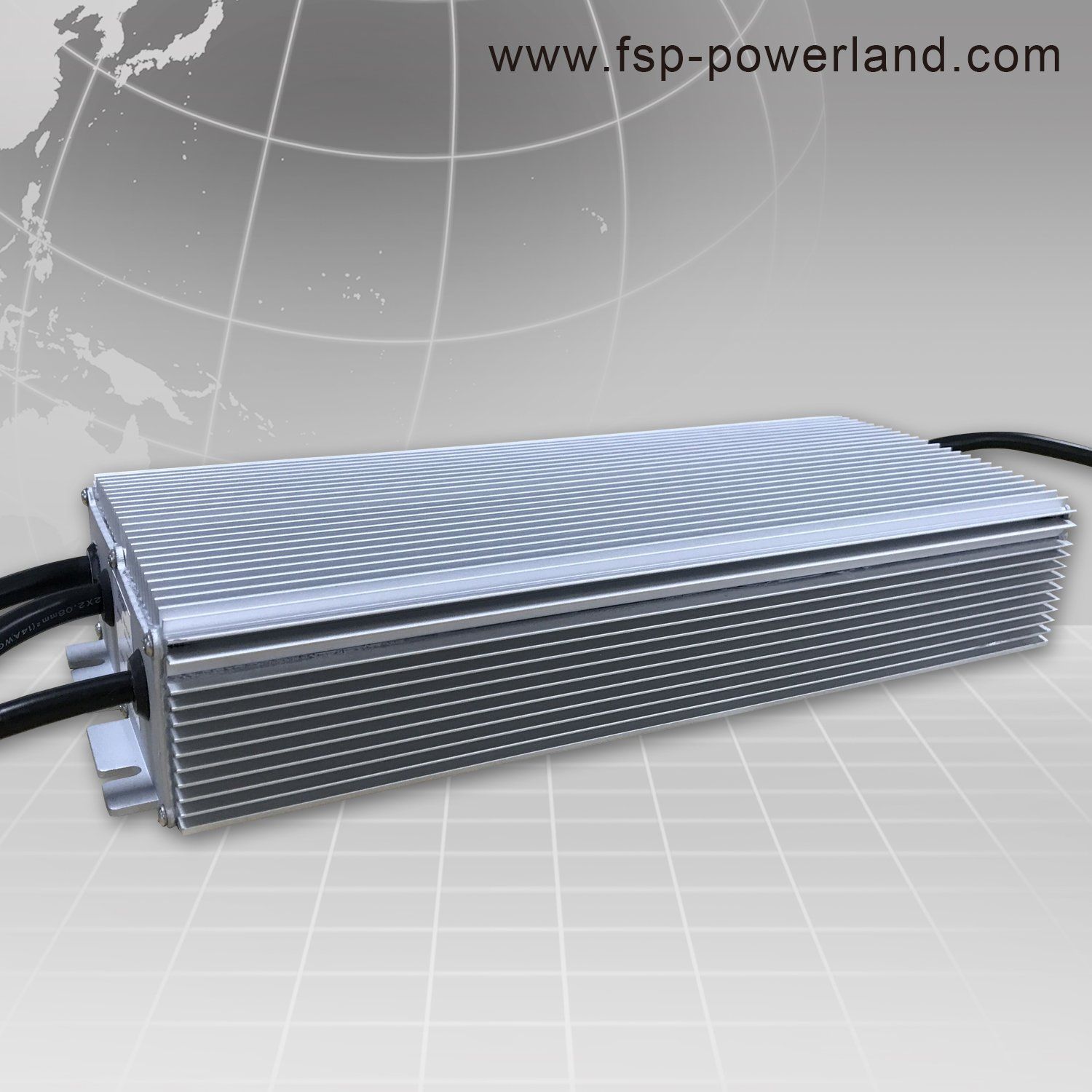

480W/720W 24~58.8V Outdoor Programmable Constant Current / Constant Voltage LED Driver
Powerland's PLD720-SMT series offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 12.2/13.33/17.14/20A, and designed for 0(0.05)-10V/PWM/Rset/Clock/ DMX ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 480W/720W | 24V
…
58.8V | 15.00A
…
20.00A | 96% | 90ºC | 7.8A | 820W | <20% | >0.95 |
* Based on 25ºC
ambient temperature, rated input voltage, and full load.Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
> 70,000 hours lifetime at 75ºC Tcase > 7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD720-SMT-24 |
PLD720-SMT-36
|
PLD720-SMT-48
| PLD720-SMT-54 | PLD720-SMT-58 |
| Output Voltage | 24V |
24~36V
|
32~48V
| 36~54V | 40~58.8V |
| Output Current | 0~20A |
20.00A
| 17.14A | 13.33A | 12.2A |
Output AUX Power Voltage (Optional) | 12V | 12V | 12V | 12V | 12V |
Output AUX Power Current (Optional) | 0-100mA | 0-100mA | 0-100mA | 0-100mA | 0-100mA |
Dimming
| N/A | 0(0.05)~10V, PWM, External Resistor, Clock, DMX |
Current Programmable
| N/A | Yes |
Output Power
| 480W | 720W | 720W | 720W | 720W |
Max. Current Ripple
| N/A | ±5% |
±5%
| ±5% | ±5% |
Voltage Range
| 108~305Vac |
108~305Vac
|
108~305Vac
| 108~305Vac | 108~305Vac |
Frequency Range
| 47~63Hz |
47~63Hz
|
47~63Hz
| 47~63Hz | 47~63Hz |
Max. Input Current
| 5.5A | 7.8A |
7.8A
| 7.8A | 7.8A |
Max. Input Power
| 592W |
820W
|
820W
| 820W | 820W |
Power Factor
| >0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
| 95% |
95.5%
| 95.5% | 96.0% | 96.0% |
Max. Open Circuit Voltage
| N/A |
39V
| 51V | 61.8V | 61.8V |
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
| OVP, OTP, OCP, SCP |
Environmental Protection
| UL Dry & Damp & Wet |
Working Temperature
| -40~+70ºC |
Max. Case Temperature
| 90ºC |
Surge Protection
| L-N 5.5kV, L/N-Earth 11kV |
Agency Approbations
| UL8750 |
Electromagnetic Compliance
| Per Title 47 CFR Part 15 Class A |
Ansi Surge Type
| 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation
| Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension
| 280x123x54 mm (11.02x4.84x2.13 inch) |
Mounting Length
| 290 mm (11.42inch) |
Overall Length
| 306 mm (12.05 inch) |
Weight
| 3.56 kg (7.85 lb) |
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

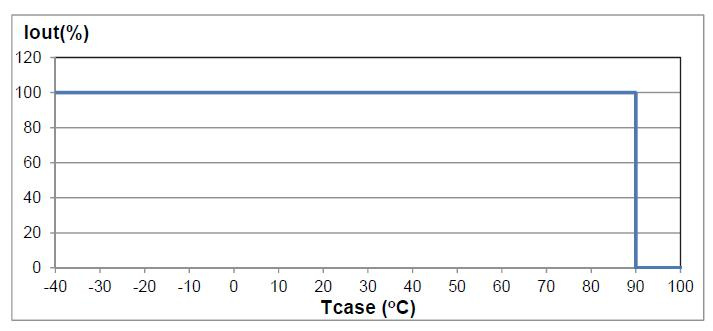

Output Current vs. Case Temperature (with ±5oC Tolerance)

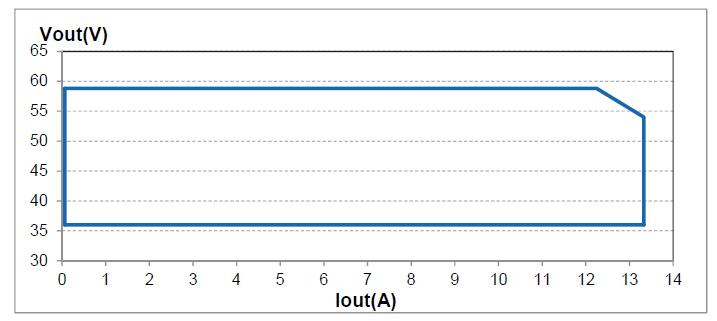

I-V Programming Area: Output Voltage vs. Output Current (Example with PLD720-SMT-54)
Electrical Specifications

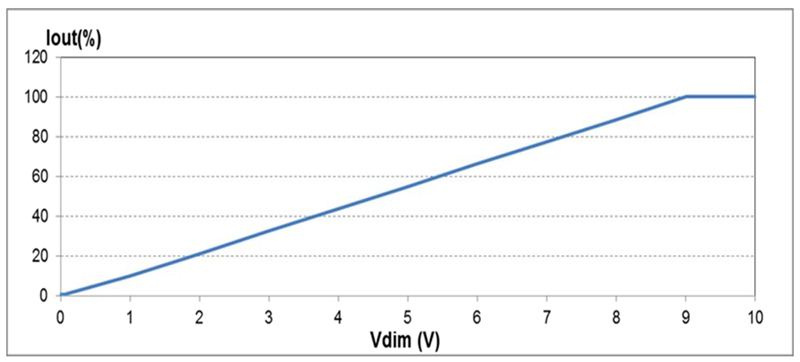

Output Current vs. 0(0.05V)-10V Dimming Control Voltage (Example with PLD720-SMT-54)
Electrical Specifications

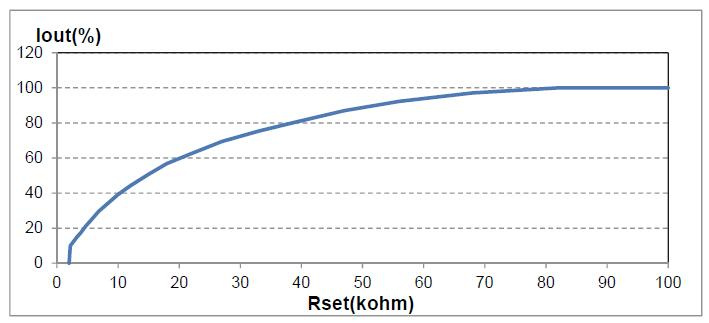

Output Current vs. External Setting Resistor
Performance Characteristics

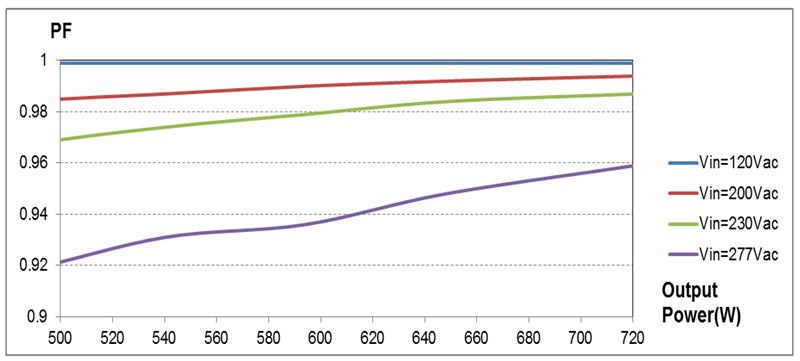

Power Factor vs. Output Power(@ 25ºC)

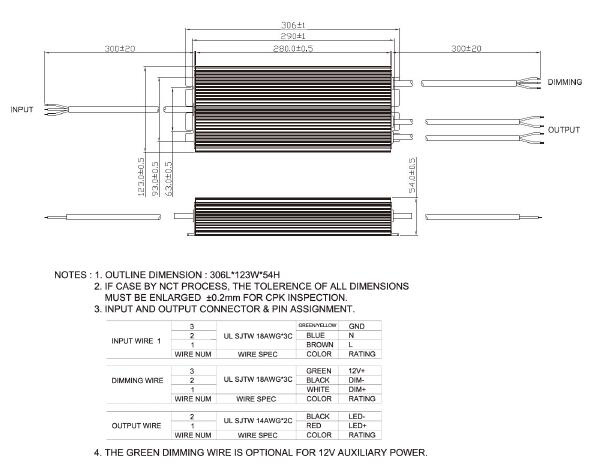

Mechanical Specification
