48V 1.2kw Cw Rotation Mini Hydraulic DC Motor

Name: 48V 1.2kw Cw Rotation Mini Hydraulic DC Motor
Brand: all-electronics-online.com
SKU: 828972095
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 60-70/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	zd4811
Volt:	48V
Power:	1.2kw
Rotation:	Cw
Current:	55A
Protect Feature:	IP44
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zd4811
Brand:	Sanghao

Product Description

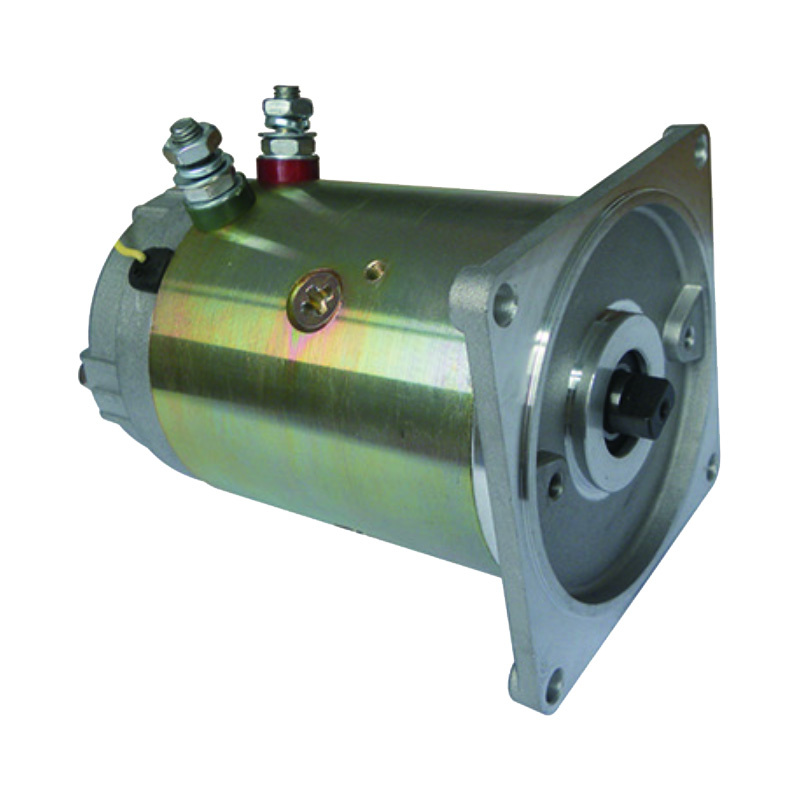

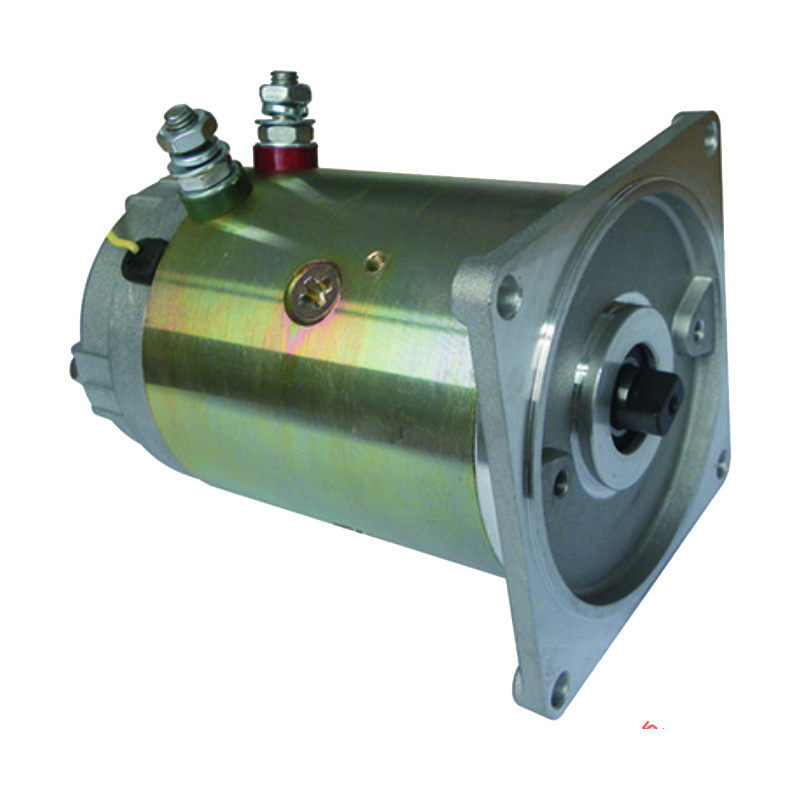

48V 1.2KW CW Rotation Mini Hydraulic DC Motor

1. Product Description

Type	ZD4811
Volt	48V
Power	1.2KW
Current	55A
Speed	2800r/min
Protect Feature	IP44
Rotation	CW
Weight	4.3kg

2. Motor Advantages
a. Low noise
b. Easy brush replacement
c. Sufficient power
d. Good after-sales service
e. over 10 years experiences engineer to support the motor research

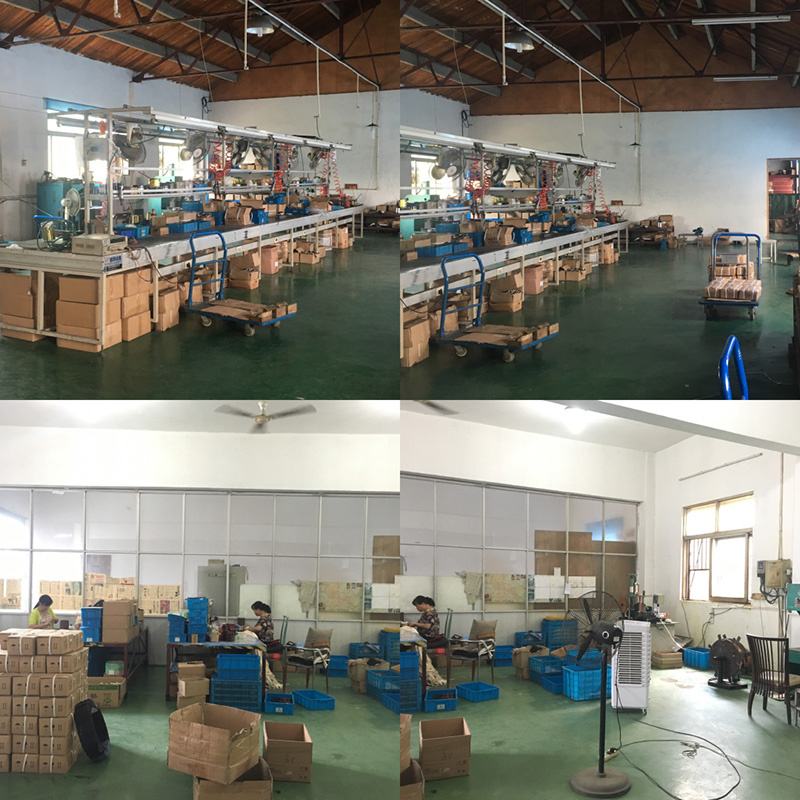

3. Motor Workshop

Our motor workshops are mainly divided into two parts: winding workshops and assembly workshops. Totally we have three big shops and three big warehouses to store the motor accessories and complete motors. We also equip the specialized motor test room to test each motor before packaging then we can control the quality.
Advanced machines are also used into our production to make good quality products.

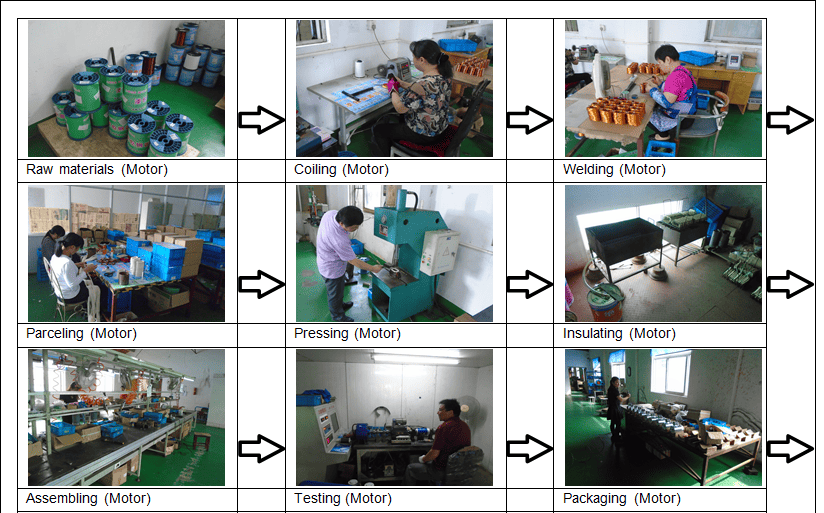

4. Productin Line

5. Application

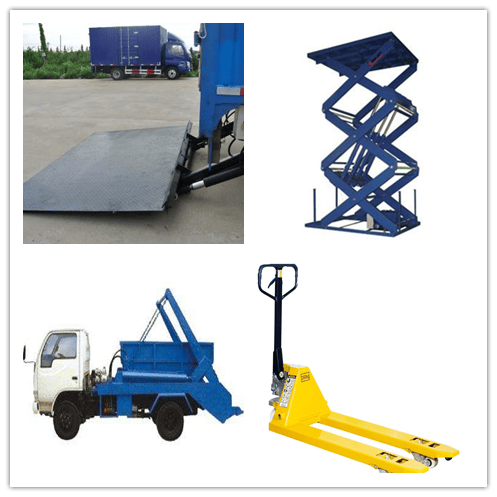

Our motor are commonly used for hydraulic power units such as dump truck, lifting platform, vehicle tailboard and ect to provide the driving for the machines.

6. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample which can make our future business.
C. Do you accept customized?
Yes, if the client can send us the sample we have the engineer to do this.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

Welcome to contact me freely if you want to know more about our factory and product!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
