| Prod Model: |
BB-EBHL01-4810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Structure: |
Samsung 26f 13s4p |
| Case Dimension: |
361*92*90mm |
| Indicator: |
4 Levels Indicator |
| Working Current: |
10-15A |
| Peak Current: |
30A-40A |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
48V |
| Usage: |
E-Bike, E-Scooter |
| Electrolyte: |
Li-ion |
Product Description

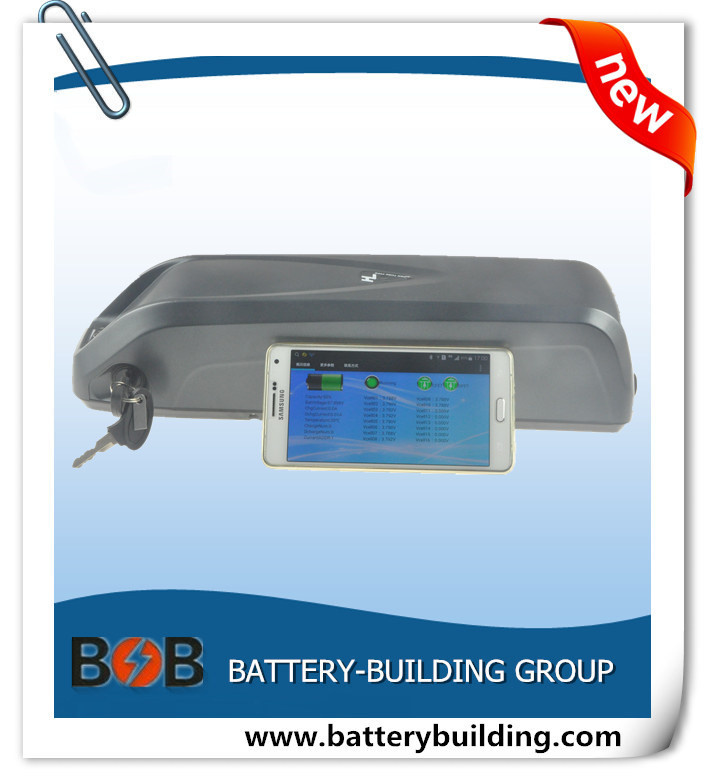

48V 10.4Ah lithium battery pack with bluetooth BMS/PCB
Features
1. 48V 10.4Ah lithium-ion battery
2. 800 times cycles
3. Stable performanc
4. No memery effect
5. High energy density
6. Samsung 26F 2600mAh 13S4P
7. The case can only hold 52pcs 18650 cells.
8. Smart
Details
| NO | Item | General Parameter | Remark |
| 1 | Model | BB-EBHL01-4810 | |
| 2 | Standard capacity(0.5C) | 10.4Ah | |
| 3 | Rated voltage | 48V | |
| 4 | Max. charge voltage | 54.6V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 2A | 0.2C |
| 7 | Charging time | About 300 minutes | X C |
| 8 | Discharge cut-off voltage | 35.75V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 10-15A(adjustable) | 1.5C |
| 11 | Peak discharge current | 30A | 4.5C |
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 361*92*90mm | |
| 13 | Total weight(Approx.) | About 3.84kg | |
| 14 | Operation temperature | Standard | 0ºC~45ºC | |
| Discharge | -20ºC~65ºC | |
| Storage | -20ºC~65ºC | |
13S bluetooth BMS details:
| Details | Min. | Typ. | Max | Error | Unit |
| Battery Gas | 3.7V lithium cell | |
| Battery Link | 13S | |
| Input Charging Voltage | | 54.6 | | ±1% | V |
| Input Charging Current | | <10 | | | A |
| Output Discharging Voltage | | 36.4 | | | V |
| Continuous Output Discharging Current | | ≤15 | | | A |
Ambient
Condition | Operating Temperature | -25 | 25 | 70 | | ºC |
| Humidity (No Water-Drop) | 0% | | 90% | | RH |
Storage
Condition | Temperature | -40 | | 85 | | ºC |
| Humidity (No Water-Drop) | 0% | | 90% | | RH |
| Protection Parameters (for Individual Cell) |
| Over-Charge Voltage Protection (OVP) | | 4.25 | | ±25mV | V |
| Over-Charge Voltage Protection Release (OVPR) | | 4.10 | | ±25mV | V |
| Over-Discharge Voltage Protection (UVP) | | 2.80 | | ±50mV | V |
Over-Discharge Voltage Protection Release
(UVPR) | | 3.00 | | ±50mV | V |
| Over-Current Discharge Protection (OCDP) | | 40A | Latency | 400mS | |
| Over-Current Discharge Protection Release | Release load |
| Short circuit current protection | Enable |
| Short circuit current protection delay time | | 100 | 300 | ±100 | uS |
| Short circuit protection Release | Release load |
| Temperature protection | High temperature | 75 | External | ±5ºC | Low Temperature | -25 | External | ±5ºC | ºC |
| Self-consuming | ≤1000 | uA |
| Dormant self-consuming | ≤100 | uA |
(MOS-RDS)
Main loop electrify resistance | ≤30 | mΩ |
| PCBA Size | 75×55×15 | mm |
