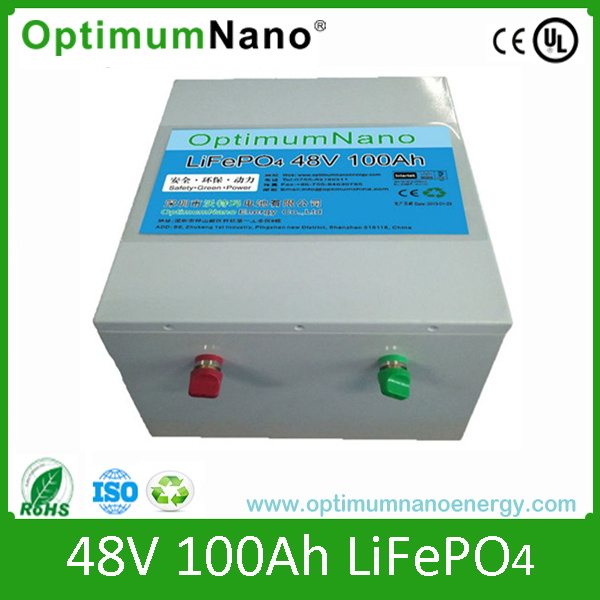

48V 100ah LiFePO4 Battery Pack for Solar System

Name: 48V 100ah LiFePO4 Battery Pack for Solar System
Brand: all-electronics-online.com
SKU: 767520135
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 1999-2499/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	opt-48-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	48V 100ah LiFePO4 Battery Pack for Solar System
Cell:	32650
Rated Voltage:	48V
Standard Capacity:	100ah
Certificate:	CE,UL,SGS/RoHS,Rbrc,ISO9001:2000,ISO1400,Ts16949:2
Components:	Lithium Iron Phosphate
Composed Type:	in Parallels and Series
Warranty:	2 Years
Package:	Steel Box
Color:	Blue/Black .
Type:	Lithium-Ion Batteries
Usage:	Solar System
Nominal Voltage:	48V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4

Product Description

48v 100ah lifepo4 battery pack for solar system

Specification:

No.	Item	General Parameters
1	Model	OPT-48-100
2	Standard capacity	100Ah
3	Rated voltage	48V
4	Max. Charge voltage	54.75V
5	Discharge Cut-off voltage	37.5V
6	Standard charge current	60A
7	Max Continuous discharge current	60A
8	Peak Instant Discharge Current	100A(5Seconds)
9	Dimension(Customized)	560±1360±1200±1mm
10	Total weight(Approx.)	About 65.5Kg
11	Operate temperature	-20°C~65°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity

(Warning !)
Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.

Never upside down the positive and negative.

Never connect the positive and negative of battery with metal.

Never ship or store the battery together with metal

Never knock, throw or trample the battery.

Never cut through the battery with nail or other edge tool.

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
