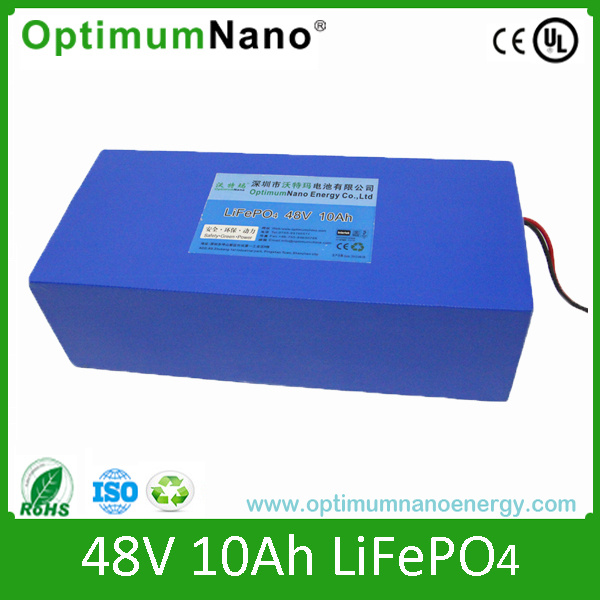

48V 10ah Lithium Battery Pack for E-Scooter

Prod Model:	OTC-48-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Cell Type:	Cylindrical LiFePO4 Battery 3.2V-5000mAh
Cell Quantity (Series*Parallels):	32PCS
Discharge Cutoff Voltage (V):	40
Charge Cutoff Voltage (V):	58.4
Standard Discharge Current (a):	1c(10A)
Max. Continuous Discharge Current(a):	2c(20A)
Standard Charge Current (a):	0.2c(2A)
Standard Charge Time(Hours):	5-6
Charge Temperature Range:	0-45°c
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	10ah
Standard Voltage:	48V
Electrolyte:	Lithium Iron Phosphate

Product Description

48V 10ah Lithium Battery Pack for E-scooter

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: OPTIMUM
Model Number: LFP-48-10
Type: Li-Ion
Nominal Voltage: 48V
Size: 442*240*88mm
Nominal Capacity: 10AH
Product Name: 48v base station lifepo4 battery
Color: Black
Life time: 2000cycles with 0.1C-1C discharge rate
Warranty: 2 years
Overseas Market: Europe, North America, Asia, Africa and etc
Upper-charging Voltage: 58.4V
Cut-off Voltage: 40V
Package: Metacl case
Weight: About 8.0 kg
Packaging & Delivery
Packaging Details: Metal case + cartons packing outside
Delivery Detail: Within 20 days

Specifications

48v base station lifepo4 battery
Long cycle life
Environmental friendly
High safety
Lighter and smaller

48v 10ah LiFePO4 battery pack for telecom base station

Our company researched and developed the battery packs 48v 10ah that has been used in Telecom base station both for domestic market and abroad.

Feature of Lifepo4 -safe
Ø The chemical structure of lifepo4 is very stable

Feature of Lifepo4 long lifespan

Feature of Lifepo4 High energy density
Ø Energy density: 80-130 Wh/kg
Ø Weight: 1/3 of lead acid, 2/3 of Ni-MH
Ø Volume: 2/3 of lead acid

Feature of Lifepo4 Wide Temp range
Ø Working Temp range: -20° C-+70° C
Ø Perform good in high Temp: Reach 350° C-500° C in peak, about 200° C for LiCoO2 and LiMn2O4

Feature of Lifepo4 Fast charge
Ø 1C standard charge and discharge, above 93% of the capacity during 3.3~3.0V platform
Ø Steady charge and discharge platform, can reach high current power charge and discharge
Ø Good at high discharge rate, above 96% charge and discharge efficiency by 10C

Feature of Lifepo4 less self-discharge
Self-discharge<5%(month), while the monthly self discharge of sealed lead acid battery is 10%.


Feature of Lifepo4 environment friendly
No heavy metal, no pollution, green and environment friendly, while Lead-acid Battery is with heavy metals such as Lead, Antimony, causing serious pollution of environment. It is easy to leak when using and maintenance and will lead to corrosion of equipment and accident when the internal Sulfuric Acid leaks.


Crtification:
CE, UL, IEC, BV, SGS/RoHS, RBRC, ISO9001: 2000, ISO1400, TS16949: 2002 issued by NQA

NO.	Item	General Parameter		Remark
1	Model	IFR 32650-5Ah		Single
2	Casing material for single cell	/Nickel plated steel
3	Standard capacity(0.2C3A)	10Ah
4	Mininum Capacity(1C3A)	9Ah
5	Rated voltage	48V
6	Max.Charge voltage	54.74V
7	Cut-off voltage	37.5V
8	Standard charge current	10A		1C3A
9	charging Time	1.5h		1C3A
10	Max Continuous discharge current	10A		1C3A
11	Battery dimension	335±1*292±1*39.5±0.5mm
12	Total weight(Approx.)	About 4.8kg
13	Impedance(Max, at 1000Hz.)	≤   105mΩ
14	(CC/CV) Charge method (CC/CV)	Standard	0~45ºC
		discharge	-20~45ºC
		storage	-20~45ºC
