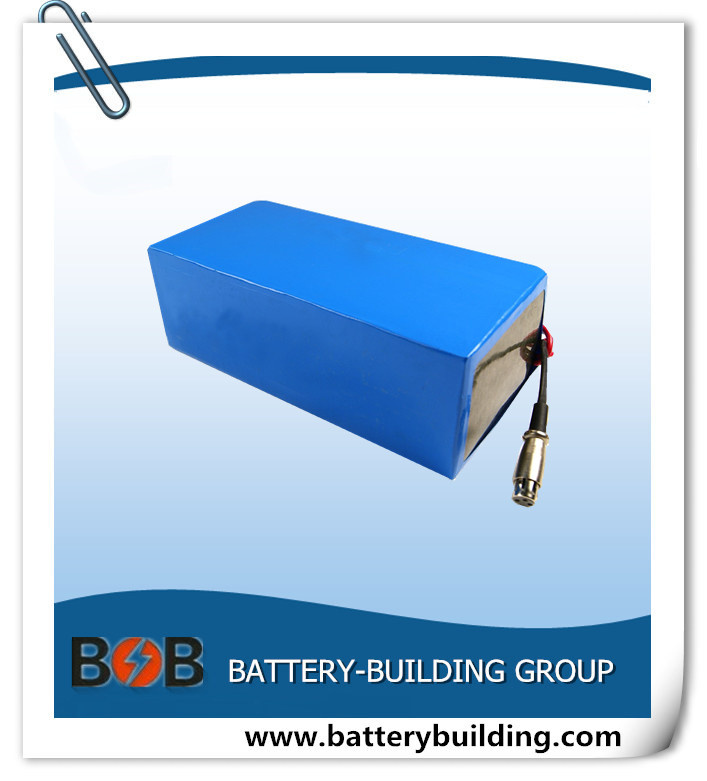

48V 10ah Shrink LiFePO4 Battery Pack

Prod Model:	BB-EBLFP-4810S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Ifr26650 3000mAh 16s3p or 4p
Brand:	Bb
Battery Type:	LiFePO4 Battery Pack
Connection Mode:	Series and Parallel
Type:	LiFePO4
Standard Voltage:	48V
Usage:	E-Bike
Electrolyte:	LiFePO4

Product Description

48v 10ah lifepo4 battery pack in shrink

Features:
1.48V10AH LiFePO4 battrey pack e-bike battery pack
2. cycle life:2000 times
3. customized dimension
4. cells can be changed into imported cells
5. stable performance

Specification


NO	Item	General Parameter				Remark
1	Model	BB15S3P/4P
2	(0.5C) Standard capacity(0.5C)	10Ah
3	Rated voltage	48V
4	Max. charge voltage	54.75V				:3.65V Single Ave. charge Voltage
5	Over charge protection			3.9±0.025 V		Over charge detection voltage
				3.8±0.05V		Over charge release voltage
6	Standard charge current	2A				0.2-0.5C
7	Charging time	About 2-5h
8	Discharge cut-off voltage	34.5V				:2.3V Single Ave. Discharge Voltage
9	Over discharge Protection				2±0.062V	Over discharge detection voltage
					2±0.062V	Over discharge release voltage
10	Max. continuous discharge current	15-20A				1.5C
11	Peak discharge current	45A				5-20ms
12	Short circuit protection	Detetion delay time			μs	Release condition	Cut-off load
12	Battery dimension	customized
13	(Approx.) Total weight(Approx.)	About 4.5kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

 Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours
