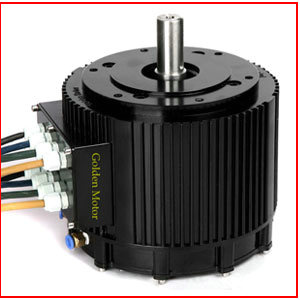

| Prod Model: |
BLDC |
| Voltage: |
48V |
| Wattage: |
10kw |
| Size: |
Dia206cm, Heighth 170cm |
| Speed: |
4000rpm |
| Weight: |
17kgs |
| Shaft: |
High Quality Stainless |
| Water Resistent: |
Yes |

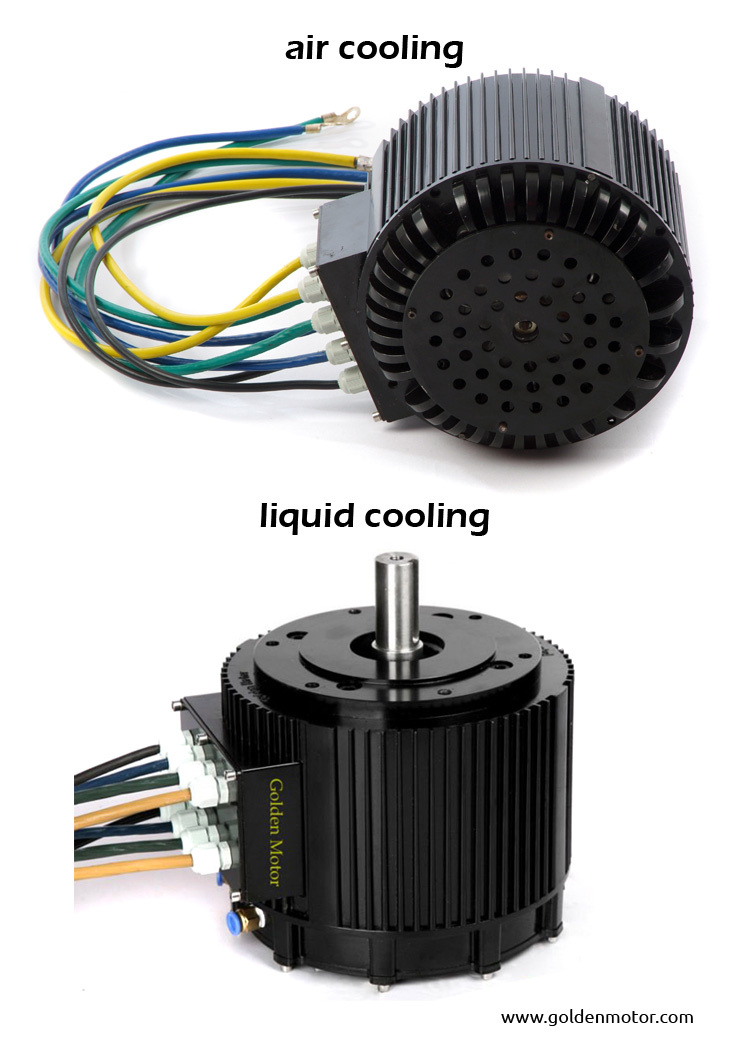

| Cooling Way: |
by Water |
| Application: |
Electric Motorycle, Tricycle, Boad, Golf Carts |
| Structure And Working Principle: |
Brushless |
| Operating Speed: |
4000rpm |
| Excitation Mode: |
Pm |
| Type: |
BLDC |
| Certification: |
Ce |
| Brand: |
Golden Motor |
Product Description
Golden Motor Technology Co Ltd is emerging as one stop shop for key components of personal electric vehicles(PEV), from electric bikes to electric cars. You can always find suitable solutions, parts for your EV applications from us.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycles, electric boats and electric car drive kits, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry since as early as year 2000.
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes,power wheelchairs, highend battery packs, electric Motorcycle motors.
Why choose our BLDC Motor ?
We are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the voltage range from 24V to 120V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors
Long working life (>20,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage : 24-120 VDC
Rated power : 200W-20,000W
Rated speed: 2000-6000 rpm
Stepless speed control, dual-direction
Our 5KW bldc motor specification as following :
Model: HPM5000B -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 91%
Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
Weight:11Kgs Casing: Aluminium
Length (height): 126mm Diameter: 206mm
Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
10kw motor controller specification :
Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: Aluminium
Length (height): 170mm Diameter: 206mm
Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm)
Curve (96V) Data (96V) Curve (72V) Data (72V) Curve (48V) Data (48V)
Drive Motor Kit Typical Setup(.jpg)
10kw motor controller
Model: VEC500
Voltage:48V/72V/96V
Rated DC BUS current:30A~200A
Rated output power:1000~10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)

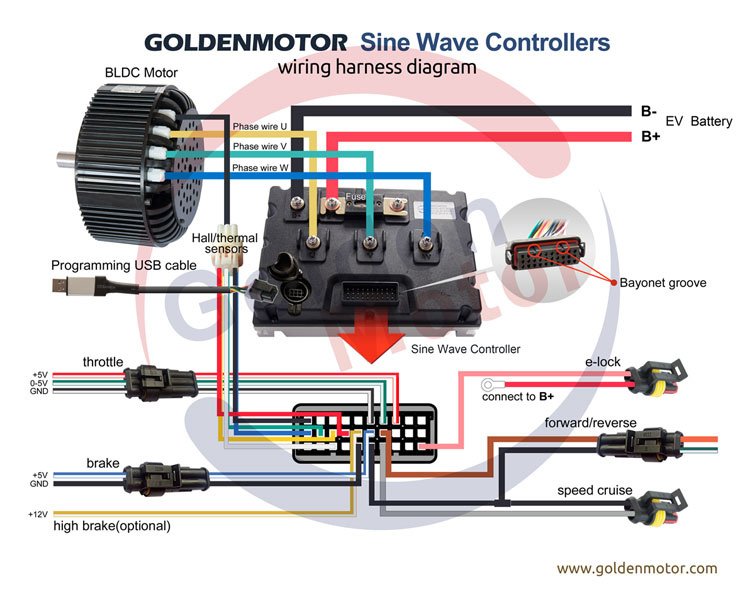

VEC500 Drawing(.STEP) VEC Controller Guide(.pdf) VEC Controller Programming Software(.rar) VEC Controller Wiring(.jpg)
More detail ,pls contact me
send to my business mail will be replied with in 12 hours.
