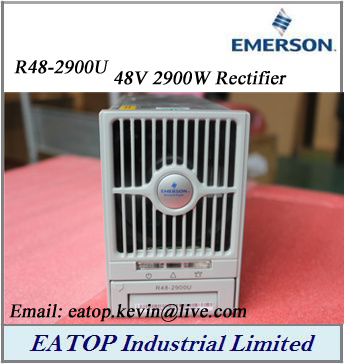

48V 2900W Rectifier Module Emerson R48-2900u

Prod Model:	R48-2900U
Output Voltage:	48VDC
Output Voltage Range:	-42 to -58 V DC
Output Current:	60A
Output Power1:	2900W
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Input Voltage:	220V
Starting Mode:	Separate-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Connection Mode:	Plug Into System
Voltage Regulating Mode:	Switch Power Supply
Brand:	Emerson

Product Description

48V 2900W Rectifier Module Emerson R48-2900U

Brand: Emerson
Model Name: R48-2900U
Output DC: 48Vdc 60A

Emerson R48-2900U Description:

NetSure 701 A30 system is optimized for base station power applications as well as other applications requiring up to 9.6kW of DC power. System configuration can be optimized to cost-effectively meet initial requirements, whilst allowing for easy expansion in the future. Standard and advanced controller options, configurable distribution and various capacity rectifier modules are available to suit different needs

Emerson R48-2900U Rectifier Features and Benefits:

1) Provides up to 9.6kW in one subrack
2) Front access and top cabling design for installation and maintenance
3) Utilizes UL approved rectifier R48-3200, R48-2900U, R48-2000
4) Hot swap of rectifier units
5) Configurable circuit breakers as high or low priority
6) AC input accepts three phase (220V delta connected or 380V star connected) or single phase (220V) nominal input
7) Battery and load low voltage disconnect to protect batteries (optional)

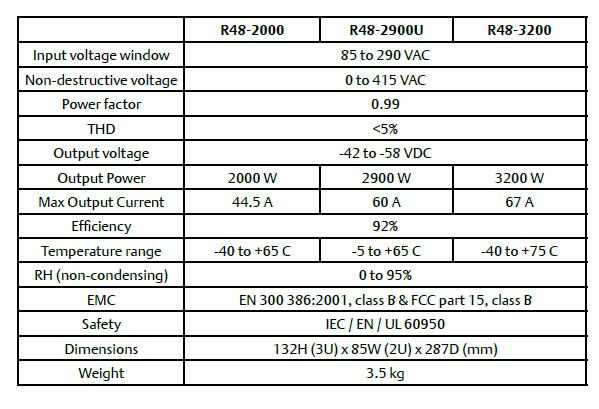

48V 2900W rectifier module Specification:



R48-2900U Weight: 3.5kg
Dimensions: 132 x 85 x 287mm

R48-2900U
48V 2900W Rectifier Module Emerson R48-2900U
