Qingdao Powtech Electronics Co., Ltd. >> 48V 30A Telecommunications Application Telecom Rectifier

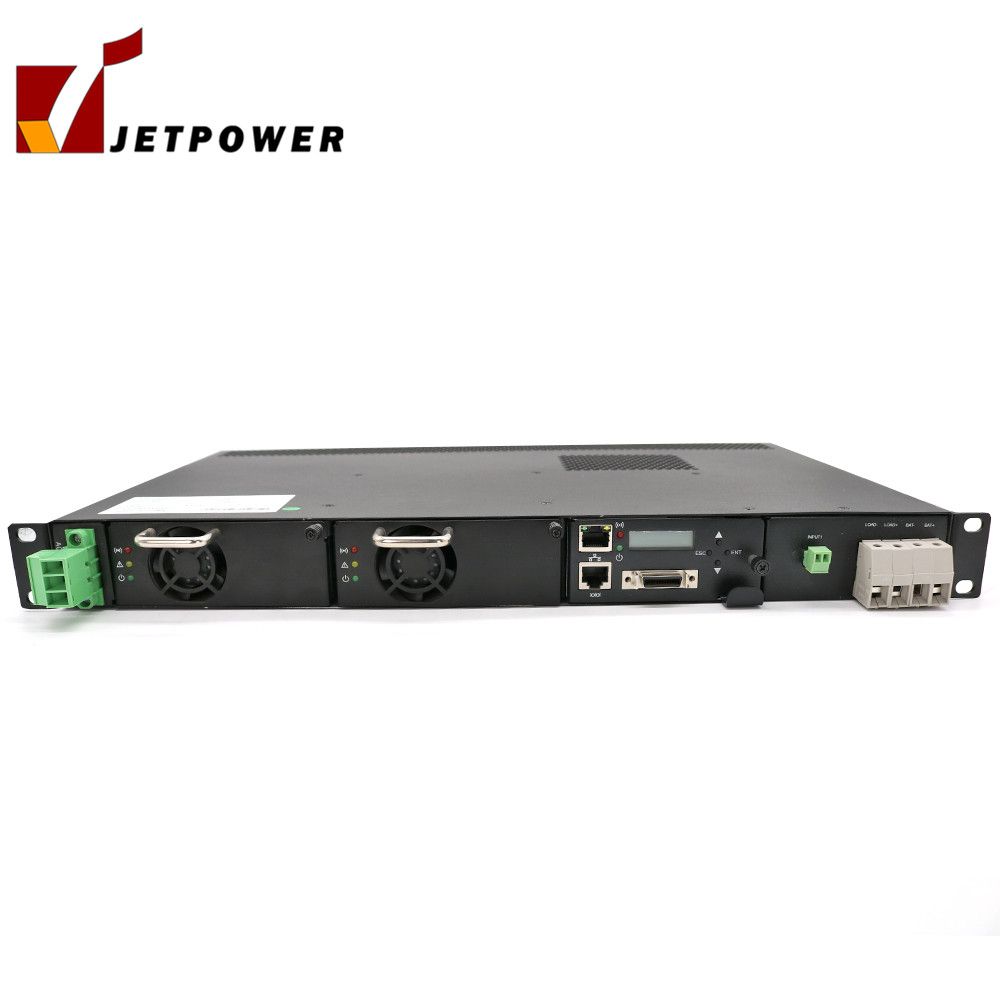

48V 30A Telecommunications Application Telecom Rectifier

48V 30A Telecommunications Application Telecom Rectifier
Price: US $ 200-800/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T
Prod Model: SPS60-48/CR4830
System Capacity: 60A/3600W
System Input Voltage: 90-300VAC, 1 Phase/3 Wire
System Output Voltage: 42-58VDC
System Size: 482*290*44mm
Rectifier Model: Cr4830*1-2PCS
Controller Model: CAS-03: RS232/RS485, LCD, Hot Swapping
Battery Management: Yes
AC Input: 1*30A/3p, 220VAC, 1 Phase/3 Wire
DC Distribution: 1*60A Load
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CSA
Input Voltage: 90-300VAC
Brand: Jetpower

Product Description

48V 30A Telecommunications Application Telecom Rectifier




SPS series systems are compact and intelligent power system with capacity from 30A to 250A, containing rectifier modules, controller module, AC connection and DC connection. In addtion, easy installation to compact size add to the success of the system

Product features:

1.  19" 1U, 3U, 4U, 5U, 6U sub-rack, easy to be embedded into all standard kinds of telecom equipment;

2.  System capacity from 30A to 250A;

3.  PFC technique features the system high efficiency, energy-saving and up to 0.99 power factor;

4.  Intelligent fan-cooling technique brings good cooling performance, low failure rate and high reliablity;

5.  Fast on-line expansion of rectifier modules enabled by hot-swap;

6.  N+1 rectifier module redundancy.




Certificates:
ModelSPS60-48/CR4830
Output Current60A
Rated Output Power3600W
Rated Output Voltage53.5Vdc (42-58 Vdc)
AC  Input
AC Input Voltage Range176~300Vac, 1phase/3wire (@ full load)
AC Input Frequency45Hz ~65Hz
AC input Power Factor0.99
AC transfer Efficiency92% , 96%(optional)
AC Input Lightening protection NA
DC Output
Output Voltage Range42~58 Vdc
Current Share±5%
Load Regulation≤0.5%
Voltage Regulation0.1%
Environment
Operating Temperature(-20 to 50°C) (Rectifier Temp Range: -45°C to 75°C)
Relative Humidity5%~95% RH, No Condensation
Configuration
Rectifier Module2*CR4830
Controller1*CAS-03
DC Distribution1pc*60A
Alarm Relay4pcs
Others
StandardUL60950/EN60950, EN55022, RoHS
CommunicationLAN/RS232 /RS485
Dimension  (mm)482*290*44 (Subrack)









Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
