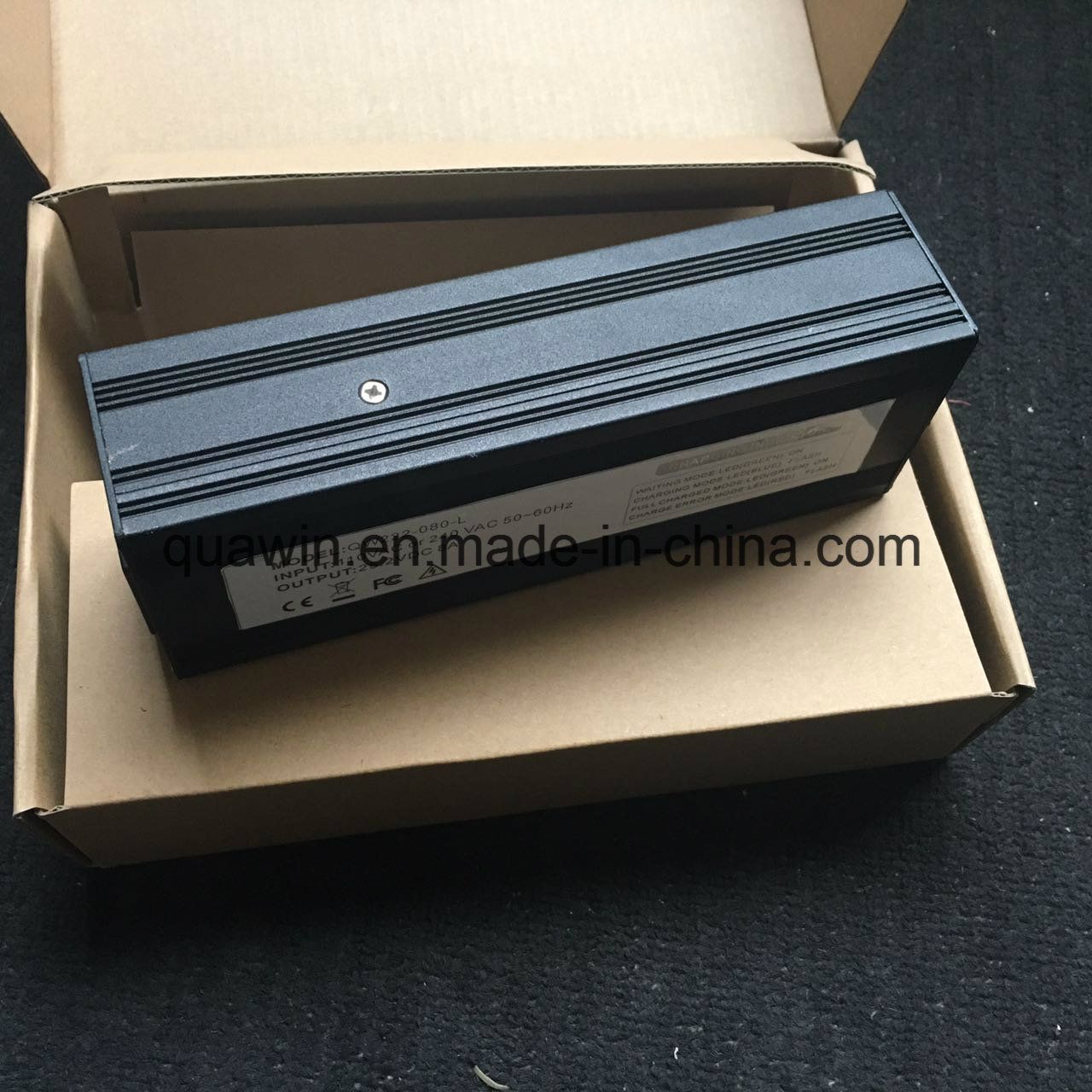

48V 4A Universal Lead Acid Battery Charger

Name: 48V 4A Universal Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 810684055
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 36/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW480-040-S
Input Voltage:	AC100-240V 50/60Hz
Voltage:	48V
Desktop Type:	Yes
Delivery Date:	25days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	Lead Acid Battery
Nominal Voltage:	48V
Socket Type:	EU/Au/UK/Us

Product Description

48V Lead acid battery charger(48V 4A)

Quick Detail:
Brand Name:QUAWIN
Model Number:QW480-040-S
Use:48V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 58.8V
Color:Black/Golden/Silver
Input voltage:AC 90~132V or 180~264V 45/65Hz
Output voltage:58.8V
Output current:4A
Output power:235.2W
Charge mode:CC---CV---Float Charge
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal

Packaging & Delivery:
inner package: white box/polybags/at your request outer package:carton
Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 48V lead acid battery charger

Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Aluminum case with Fan Cooling
• It can charge any 48V SLA/VRLA/GEL/AGM battery with capacity 20-30Ah

Specification:
• Input: AC 90~132V or 180~264V 45/65Hz
• Output: DC 58.8V
• Charging current: 4A
• Weight: 960g(only body)
• Dimension:L183*W94*H55mm or L175*W80*H50mm

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

LED Indicator:
• GREEN Light ON: fully charged or no connected.
• BLUE Light flash: battery is being charged.
• RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).

Call us to know more details datasheet.

ITEM	QW120-050-S	QW120-060-S	QW120-070-S	QW120-080-S	QW120-090-S	QW120-100-S
Output voltage:	14.7V	14.7V	14.7V	14.7V	14.7V	14.7V
Rated output current:	5A	6A	7A	8A	9A	10A
Output power:	73.5W	88.2W	102.9W	117.6W	132.3W	147W
ITEM	QW240-060-S	QW240-070-S	QW240-080-S	QW360-040-S	QW360-050-S	QW480-030-S
Output voltage:	29.4V	29.4V	29.4V	44.1V	44.1V	58.8V
Rated output current:	6A	7A	8A	4A	5A	3A
Output power:	176.4W	205.8W	235.2W	176.4W	220.5W	176.4W
ITEM	QW480-040-S	QW600-030-S	QW720-020-S	QW720-025-S	QW840-020-S
Output voltage:	58.8V	73.5V	88.2V	88.2V	102.9V
Rated output current:	4A	3A	2A	2.5A	2A
Output power:	235.2W	220.5W	176.4W	220.5W	205.8W

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
