48V 750W 8fun BBS02 Crank MID Drive Motor Kits

Name: 48V 750W 8fun BBS02 Crank MID Drive Motor Kits
Brand: all-electronics-online.com
SKU: 756702665
Availability: InStock
Rating: 4.4 (53 reviews)

Price:	US $ 325-345/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BBS02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	48V
Wattage:	750W
Modelmax Torque:	60-85n.M
Place Of Origin:	Jiangsu, China (Mainland)
Top Speed:	45km/H
Chain Wheel Type:	44t/46t/48t/52t
Rated Efficiency:	>=80
Limited Current Of Controller:	25A
Display:	C961/C965/850c
IP Code:	65
Operating Speed:	Adjust Speed
Structure And Working Principle:	Brushless
Application:	Electirc Bike
Certification:	Ce
Brand:	Bafang/8fun

Product Description

48V 750W 8fun BBS02 Crank MID Drive Motor Kits

With an integrated speed sensor, this mid-drive motor which is compatible with a 68-120mm bottom bracket has a rated power of 750w, a reduction ratio of 1:21.9 and a maximum torque of 160N.m, will provide the rider with great explosive force when strarting the system. Hightly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes, which are the favorites of riders who love challenges as well as transport bikes.

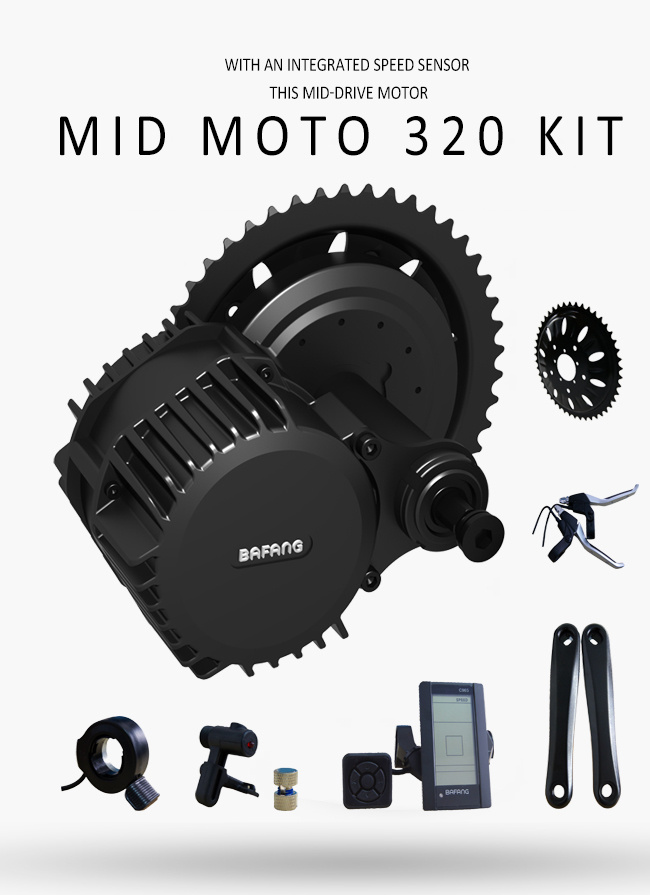

A whole Mid drive motor includes the following parts:

1x mid motor
1x c965/c961/dpc-14 display
1x thumb throttle
1x speed sensor
1x chain wheel/chain cover
2x crank
2x brake levers

Technical Parameters

Rated Power	750w
Nominal Voltage	48v
Construction	Geared Brushless Motor
RPM	130-150
Max Torque	85-160N.m
Efficiency	85%
Sensor	Speed sensor
IP-code	IP65
Bottom Bracket	68mm/100mm/110mm/120mm
Chain Wheel	44T/46T/48T/52T

Product Details and Effects

Advantages

1. This kits can be installed on standard normal bike frame easily, no need to change the frame.

2. High starting torque, Max torque≥80N, good performance on climbing

3. Double clutch is used on drive unit, more safety.

4. High efficiency, low consumption, long travel distance.

Matching battery
Recommend 48v 11.6Ah/14Ah li-ion Down tube type battery

Packing and shipping
1.Packing:
Standard export carton packing, with professional foam protection.
2.Shipping:
For samples, we deliver goods to customer by UPS,FEDEX,DHL,TNT or EMS.
For mass production order, we deliver goods to customer by air or by sea.

Warranty terms
motor--->2 years(guarantee replacement in first year, guarantee repair in the next year.)
battery---->1years(guarantee replacement.),
other parts---->half an year
