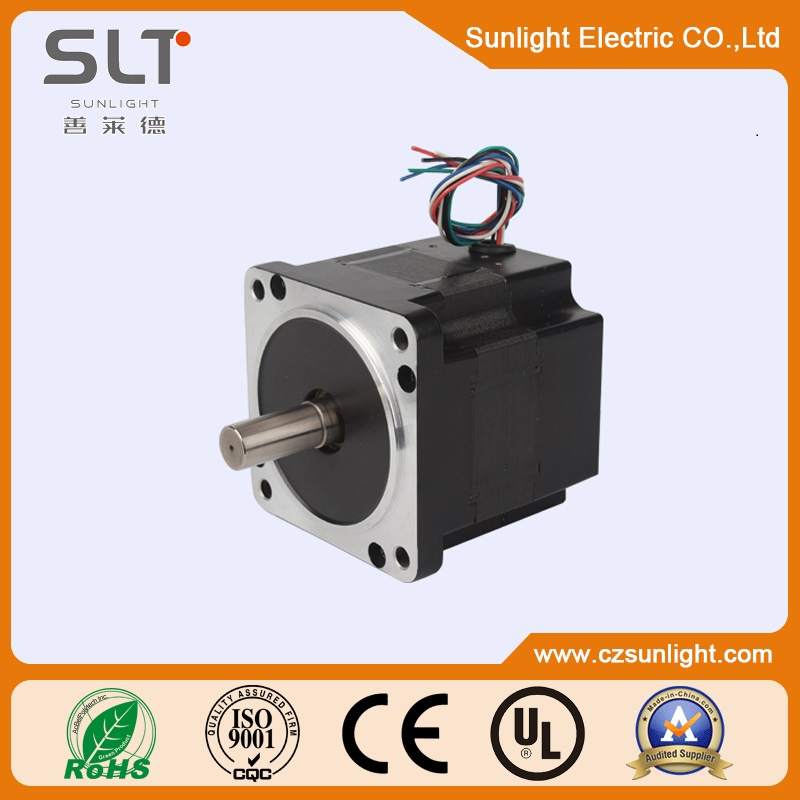

48V 86mm High Power Brushless BLDC Garden Tool DC Motor

48V 86mm High Power Brushless BLDC Garden Tool DC Motor
Price: US $ 25-35/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SLT86BLF30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Slt86blf30
Voltage: 48V
No Load Speed: 3500rpm
Rated Torque: 1n.M
Rated Speed: 3000rpm
Rated Power: 314W
Rated Current: 8.6A
Peak Torque: 3n.M
Weight: 2.2kg
Length: 80mm
Number Of Stator: Three-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Type: Magnetic-Electric
Number Of Poles: 4/8
Brand: Slt

Product Description

Product Description
1.Voltage:48v
2.Current:8.6A
3.Resistor:0.2Ω-40Ω
4.Max brake torque:2-300 Oz-in
5. Step Angel Accuracy:+/-5%
6.Inductance Accuracy:+/-10%
7.Temperature Rise:+/-20%







The specification of  Micro DC Brushless Motor Apply for Printer

86BLF-Brushless DC Motor
Technique Specification
ModelSLT86BLF30SLT86BLF55SLT86BF80
Number of poles 4/8
VoltageV48
No load speedRPM350034003250
Rated torqueN.m11.82.5
Rated SpeedRPM300030003000
Rated powerW314565785
Rated CurrentA8.614.819.5
Peak torqueN,m35.47.5
Back-EMF constantV/KRPM9.89.810.2
WeightKg2.23.24.2
Lengthmm80105130



Application of  48V 86mm high power DC Brushless BLDC Garden tool Motor

a.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
b.Home Appliance ( Electric cooker, Electric mop and other products.)Medical
equipment and beauty products.
c.Office products (such as printer, scanner......)
d.Electric tools and garden tools.


Company Information




Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required




Contact
Changzhou sunlight Co., Ltd
Contact Person: Janet Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15961201381


Website: www.czsunlight.com or www.sunlightmotor.com


Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
