| Prod Model: |
SLT86BLF30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Slt86blf30 |
| Voltage: |
48V |
| No Load Speed: |
3500rpm |
| Rated Torque: |
1mnm |
| Rated Speed: |
3000rpm |
| Rated Current: |
8.6A |
| Stall Torque: |
3nm |
| Weight: |
2.2kg |
| Length: |
80mm |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Product Description
Model:SLT42BLF40
Voltage:24V
No Load Speed:5400rpm
Rated torque:0.125mNm
Rated Speed:4000rpm
Rated Current:3.2A
Stall torque:0.37mNm
Weight:0.47Kg
Length:63mm

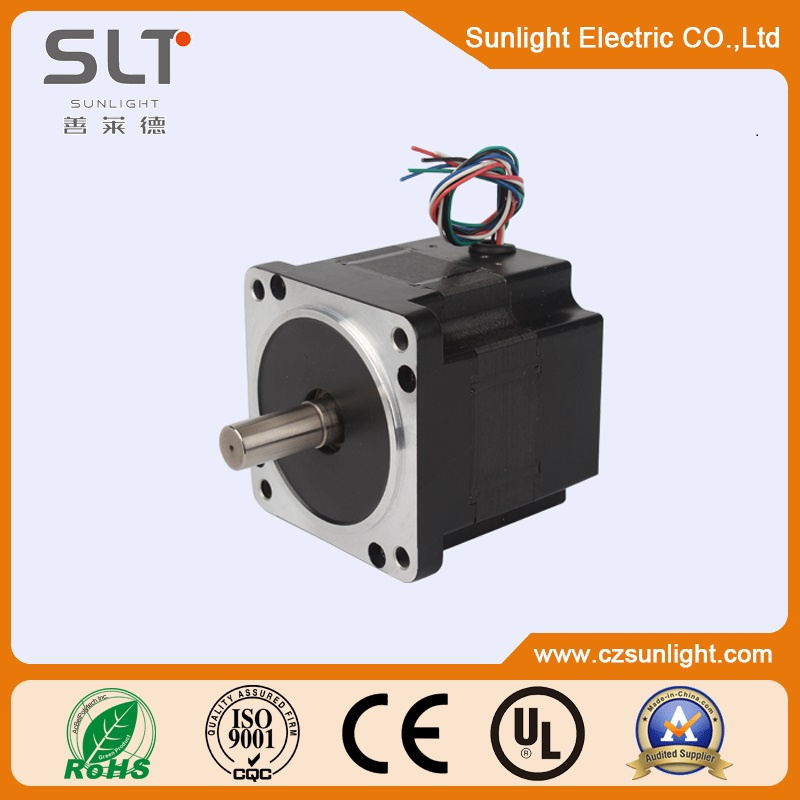

The specification of 48V Brushless DC Motor for bus
| 86BLF-Brushless DC Motor |
| Technique Specification |
| Model | SLT86BLF30 | SLT86BLF55 | SLT86BF80 |
| Number of poles | | 4/8 |
| Voltage | V | 48 |
| No load speed | RPM | 3500 | 3400 | 3250 |
| Rated torque | N.m | 1 | 1.8 | 2.5 |
| Rated Speed | RPM | 3000 | 3000 | 3000 |
| Rated power | W | 314 | 565 | 785 |
| Rated Current | A | 8.6 | 14.8 | 19.5 |
| Peak torque | N,m | 3 | 5.4 | 7.5 |
| Back-EMF constant | V/KRPM | 9.8 | 9.8 | 10.2 |
| Weight | Kg | 2.2 | 3.2 | 4.2 |
| Length | mm | 80 | 105 | 130 |
Model | No load speed(rpm) | Rated torque(Nm) | Rated speed(rpm) | Rated current(A) | Torque(max)(Nm) | Rotor inertia(Kgmm²) | Black-EMFconstant(V/krpm) | Torque Constant(Nm/A) | Resistance(20ºC)(ohm) | Weight (Kg) | Rotor:La(mm) |
| SLT42BL01 | 5000 | 0.063 | 4000 | 1.65 | 0.189 | 5.2 | 3.17 | 0.045 | 1.42 | 0.29 | 20 |
| SLT42BL02 | 5000 | 0.125 | 4000 | 3.4 | 0.375 | 9.3 | 3.13 | 0.044 | 0.73 | 0.47 | 40 |
| SLT42BL03 | 5000 | 0.185 | 4000 | 4.5 | 0.5 | 13.4 | 3.28 | 0.73 | 0.39 | 0.65 | 60 |
| SLT60BL01 | 5200 | 0.11 | 4000 | 1.9 | 0.3 | 7.5 | 4.5 | 0.074 | 1.65 | 0.5 | 20 |
| SLT60BL02 | 5200 | 0.22 | 4000 | 3.3 | 0.55 | 11.9 | 4.82 | 0.079 | 0.7 | 0.5 | 40 |
| SLT60BL03 | 5200 | 0.32 | 4000 | 4.8 | 0.8 | 17.3 | 4.87 | 0.08 | 0.48 | 1 | 60 |
| SLT60BL04 | 5200 | 0.44 | 4000 | 6.6 | 1.05 | 21 | 4.87 | 0.08 | 0.35 | 1 | 80 |
| SLT62BL01 | 3900 | 0.22 | 3200 | 4.5 | 0.66 | 19 | 4.3 | 0.062 | 0.57 | 0.9 | 20 |
| SLT62BL02 | 3700 | 0.4 | 3000 | 7.1 | 1.1 | 37.5 | 4.6 | 0.065 | 0.24 | 1.3 | 40 |
| SLT62BL03 | 3700 | 0.65 | 3000 | 12.7 | 1.8 | 55.8 | 4.53 | 0.061 | 0.13 | 1.8 | 60
|
Company Information
Since 1990
Specializing in Axial fan, Radiator Fan, Blower Fan, Motor Fan,DC Motor,Brushless Motor,Hub Motor,Auto Parts(Die casting and plastic parts). We can design the solutions for our clients, or produce the products by your requirements.
Our principle: quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
FAQ
1,What custom modifications are available?
SLT can provide motor with customized shafts, mounted encoders, various controls
(integral, hall only, or sensorless), and alternate magnet materials for power density.
2,What are the advantages of using a brushless motor versus a brush style motor?
No brush noise, efficient, durable, robust, easy to cool
Linear current/torque
Synchronous speed control
Position and Speed Servo (open/closed loop)
Customizable Performance
Extended Life
3,How can I calculate my power needs?
A simple formula can be used to roughly determine what is needed power-wise.
Here's an example:
Motor Speed: | 3600 RPM |
| Motor Torque: | 340 mNm = 48 inoz = 3 inlb |
| Voltage: | 12VDC |
| Assumed Eff %: | 80 % |
Power Output: | ( Speed x Torque(inlb) ) / 84.5 | => | (3600 x 3 ) / 84.5 | = | 127 Watts Output |
| Power Input: | Watts Output / Assumed Eff% | => | 127 / 0.8 | = | 159 Watts Input (Required) |
| Current Requirement: | Watts Input / Voltage | => | 159 / 12 | = | 13.2 Amps (Minimum) |
4,What environmental considerations are there?
Typical environmental temps for the motor should be run in a low humidity environment with an ambient temperature
range of -20 C to +50 C. brushless motors do have IP ratings associated to them and limited customization can be
done to increase the IP rating. If severe conditions require IP ratings of IP54 or higher,a customized motor construction
is required to accommodate this need.
5,Are there any noise benefits of a Brushless motor?
Yes, with the elimination of brushes, brushless motors can be regulated to slower operating speeds without sacrificing torque.
Brushless motors can also utilize skewed magnets to reduce the effect of cogging.
