48V DC to 15V DC 75W Converter

Prod Model:	PD75-48S15-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	15VDC
Output Current:	5A

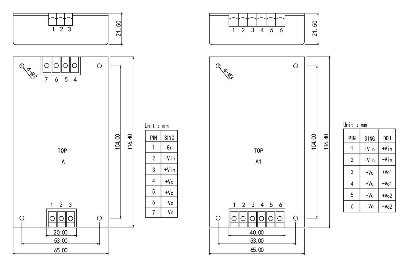

Size:	116.40*65.00*21.50mm
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Output Power:	75W
Input Voltage:	36-72VDC
Brand:	Pengtu

Product Description

48V dc to 15V dc 75w converter     PDB-A  Series

Product Description

Features

l       IItype input filter
l       High power density
l       2X, 4X voltage input
l       Design for high reliability, long lifetime
l       Easy installation, duai side pin out
l       Attractive outline design

Input Characteristic

l       Inputvoltage range............ 9 ~ 18 VDC Rated value: 12VDC
                                                                            18 ~ 36 VDC Rated value: 24VDC
                                                                            36 ~ 72 VDC Rated value: 48VDC
                                                             70 ~ 140 VDC Rated value: 110VDC
                                                                            9 ~ 36 VDC Rated value: 18VDC
       Reverse Protection
       Fuse Outside

Output Characteristic

l       Voltage set-point accuracy .........±1%
l       Line regulation(main) .................±0.2%
l       Load regulation(main) .............±0.4%
l       Temperature coefficient .............±0.01%/°C
l       Output current limiting .............. 120%(Typ)
l       Dynamic response ............ 400μs
l       Output current ............... 2-10A
l       Output voltage ............... 5-48V
l       Power  ..................... 75-120W

General Characteristic

l       Switching frequency ............ 160-200 KHz
l       Isolation resistance ............  200 MΩ
l       MTBF ..................  >500000H
l       Isolation voltage
        Input-output:>1500 VDC/1min(leakage current<5mA)
        Input-case: >1050 VDC/1min(leakage current<5mA)
        Output-case: >500 VDC/1min
l       Environmental Characteristic
       Case temperature ............ Industry: -25-+85°C; MilitaryI: -40~ +85°C; Military II: -55~ +85°C
       Storage temperature ............ Industry: -45~ +105°C; Military: -55~ +105°C

Models

Model	Output Lines	Input Voltage (V)	Input Voltage Range (V)	Output Voltage (V)	Output Current (A)	Ripple pk-pk (mv)	Efficieency (Typ)
PDB60-12S12-A/A1	Single	12	9-18	12	5	120	83%
PDB75-12S12-A/A1		12	9-18	12	6.25	120	83%
PDB75-12S15-A/A1		12	9-18	15	5	150	83%
PDB75-24S24-A		24	18-36	24	4	200	88%
PDB125-24S28-A/A1		24	18-36	28	4.46	280	84%
PDB100-12S24-A/A1		12	9-18	24	4	200	88%
PDB100-24S24--A/A1		24	18-36	24	4.16	200	88%
PDB100-48S48-A		48	36-72	48	2	400	89%
PDB75-48S12-A/A1		48	36-72	12	6.25	120	85%
PDB125-48S12-A/A1		48	36-72	12	10.4	120	88%
PDB75-48S24-A/A1		48	36-72	24	3.2	200	82%
PDB48-18S24-A/A1		18	9-36	24	2	200	80%
PDB50-18S12-A/A1		18	9-36	12	4.29	100	82%
PDB100-110S12-A/A1		110	70-140	12	8.3	100	84%
PDB100-110S24-A/A1		110	70-140	24	4.16	200	84%
PDB60-12D05&12-A1	Double	12	9-18	05&12	10&1	50&100	84%
PDB70-24D12&24-A1		24	18-36	12&24	1&2.5	100&200	82%
PDB70-48D05&12-A1		48	36-72	05&12	2&5	50&100	84%

 Remarks: Custom-made specifications are acceptable.
