| Prod Model: |
EP3000 |
| Product Name: |
Low Frequency Pure Sine Wave Power Inverter |
| Output Waveform: |
Pure Sine Wave Output |
| Rated Power: |
8kw~12kw |
| Surge Power: |
3*Rated Start Power |
| AC Charge Current Range: |
100A |
| Battery Voltage: |
48V |
| Frequency: |
50Hz/60Hz Auto Sensing |
| Protection: |
Overload, Short Circuit Protection |
| Display: |
LED+LCD Display |
| Warranty: |
12 Months |
Product Description

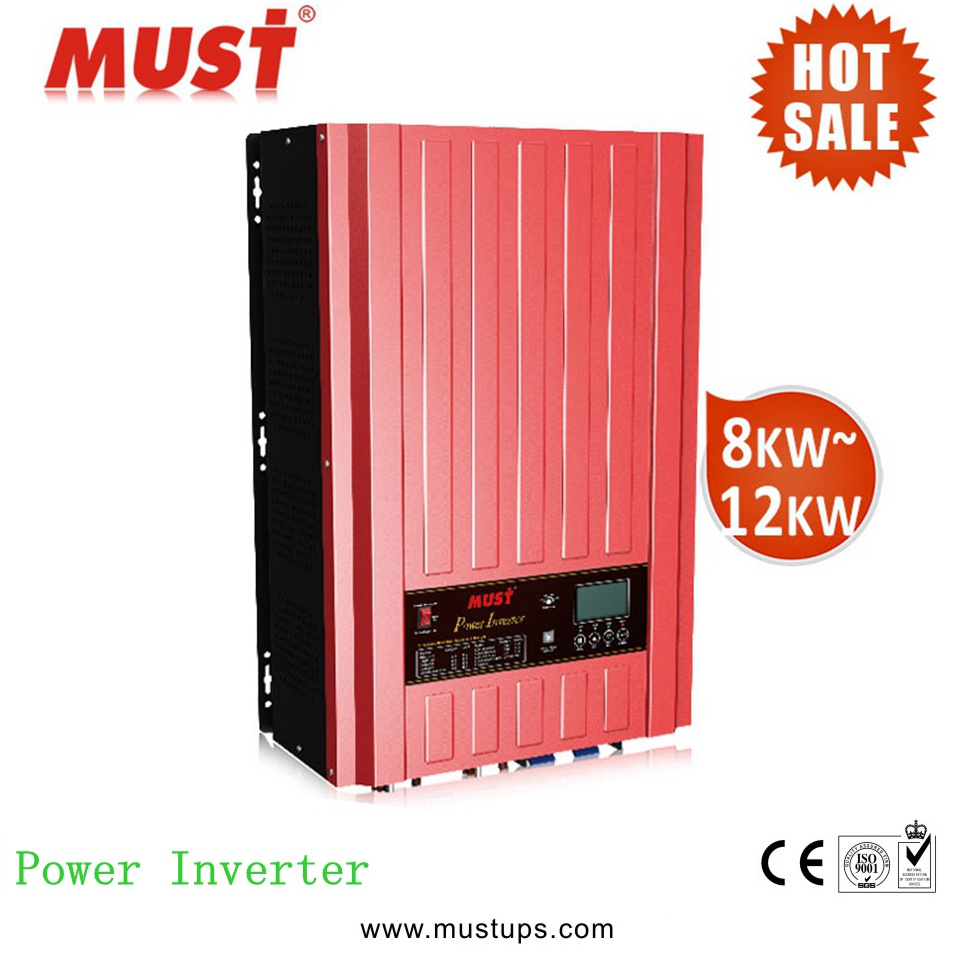

48V DC to AC 220V Generator Power Inverter 10000watt
1.About the EP3000 series Low Frequency Power Inverter:EP3000 Series (8-12KW)
Low frequency pure sine wave combined inverter & charger EP3000 Series 8-12kw:Quiet, high efficiency operation Front panel LED+ LCD indicators and adjustable switch selectors Selectable settings for flooded lead acid, gel, or absorbed glass mat (AGM) batteries.Main for home and office Appliance such as TV,refrigerator,fan,lights,computer etc.
2. What's the main Features of EP3000 series?
. 100A automatic 3-stage battery charger
. Charge current is adjustable (25%, 50%, 75%, 100%)
. Inbuilt pure copper transformer
. Low battery, overload, and high battery, over temperature protction
. Battery/ AC priority (optional)
. RS485/ Remote switch (optional)
. Generator compatible
3. Details introduction of EP3000:
1) Details about the terminals: AC in terminal, battery connection terminal, fan cooling, and AC output plug
2) LED+LCD display for easy setting and operation: setting operation mode via LCD, such as Battery priority mode, AC priority mode, frequency 50Hz or 60Hz setting.
3) Back Terminal Details
4. Specifications of the power inverter EP3000| MODEL | EP30-8KW | EP30-10KW | EP30-12KW |
|---|
| Default Battery System Voltage | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | Continuous output power | 8.0KW | 10.0KW | 12.0KW |
| Surge rating (20ms) | 24.0KW | 30.0KW | 36.0KW |
| Capable Of Starting Electric Motor | 4HP | 5HP | 6HP |
| Output waveform | Pure sine wave/ same as input (bypass mode) |
| Inverter Efficiency(Peak) | >88% |
| Line mode efficiency | >95% |
| Power factor | 1.0 |
| Nominal output voltage RMS | 220V/230V/240VAC(+/-10% RMS) |
| Output frequency | 50Hz/60Hz +/-0.3 Hz |
| Short circuit protection | Yes (1sec after fault) |
| Typical transfer time | 10ms(max) |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | 155~280VAC(For Personal Computers) |
| Frequency Range | 50HZ/60HZ (Auto sensing) |
| BATTERY | Minimum start voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) |
| Low battery alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) |
| Low battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) |
| High voltage alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) |
| High battery voltage recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) |
| Idle consumption-search mode | <35W when power saver on |
| CHARGER | Output voltage | Depends on battery type |
| Charger AC input breaker rating | 40A | 50A | 63A |
| Max charge power rate | 1/3 Rating power |
| Overcharge protection S.D. | 62.8VDC |
| Maximum Charge Current | 70A | 80A | 100A |
| BTS | Temperature rate @25°C | 4mv charging voltage descent, per 1°C rise |
BYPASS
& PROTECTION | Input voltage waveform | Sine wave (grid or generator) |
| Nominal voltage | 220V/230V/240VAC |
| Max input AC voltage | 300VAC for 230VAC HV mode |
| Nominal input frequency | 50Hz or 60Hz |
| Overload protection (SMPS load) | Circuit breaker |
| Output short circuit protection | Circuit breaker |
| Bypass breaker rating | 80A |
| Max bypass current | 80Amp |
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount |
| Inverter dimensions (W*H*D) | 670*410*215mm |
| Inverter weight (solar chg) KG | 67.5 | 74 | 74 |
| Shipping dimensions(W*H*D) | 802*533*429.5mm |
| Shipping weight (solar chg) KG | 87 | 93.5 | 93.5 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Loading(20GP/40GP/40HQ) | 200pcs / 400pcs / 500pcs |
5. Payment & Shipping & Sample1) Payment: T/T (Telegraphic transfer), and Western Union
2) Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea
3) Packing: 1pc/carton, 1carton in 1 wooden box
packing size: 890*620*460mm (wooden box)
weight: 88kg-95kg
6. Our services24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.
(Angel Lee +86 13823339627
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.7. MUST POWER LIMITED Company Introduction:
-------Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
--------Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
--------Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.
Contact US:
--------Want to know more about our company?
--------Want to know more about our products? Want to know more about the Price, packing, Shipping and any discount? Dear Friend, Do not Hesitate. Leave a Inquiry! ! ! ! : -8. Why Always Must Power???1)Professional--Over 12 years Professional Power System Producing Experience
2)Reliable
3)Hi-tech--Two Advanced R&D Team
4)Certifications--Applied with CE, ISO 9001, Soncap,IEC etc
5)Quality guarantee--One year warranty9. Answers to the frequent questions:1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
Contact information:
MUST Power Limited is a factory in solar products field for more than 10years, we have a lot of experience in this field.
Just click your finger and send me an inquiry, we can share the world together. Let's just do it!
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
