| Prod Model: |
BB-EB4810RR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Structure: |
Icr18650 2200mAh 13s5p |
| Dimension: |
69mm X 148mm X 275mm |
| Color: |
Black and Silver |
| Motor Available: |
450W |
| Continuous Current: |
15A |
| Charger: |
2A/3A Aluminum Case Charger |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
E-Bike,E-Scooter |
| Electrolyte: |
Li-ion |
Product Description

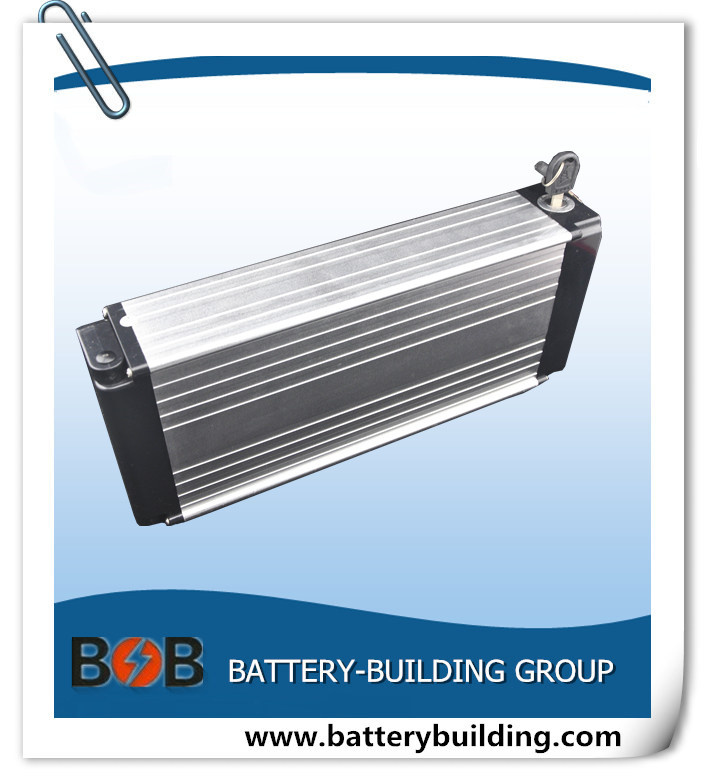

48V Lithium Battery Pack in Rear Rack TypeSpecification1. 48V10Ah rear rack battery
2. ICR18650 2200mAh 13S5P
3. cells can be changed as you required
4. With long cycle life
5. Stable working performance
6. Competitive cost
Details1. Normal Voltage:48Volts.
2. Dimension: 69mm X 148mm X 275mm.
3. Capacity: 10Ah.
4. Charge Current: 2Amps.
5. Maximal Continuous Discharge C-Rate: 15Amps.
6. Maximal Discharge Current: 40Amps.
7. Overvoltage Protection: 54.6Volts.
8. Undervoltage Protection:35.75Volts.
9. Lifecycle: 800Cycles.
10. Weight: 3.9KG.
11. Chemical: Li-Ion NiCoMn.
Lithium Ion Charger Specification:
1. AC Input Voltage: 90-240V.
2. Charge Voltage: 54.6Volts.
3. Charge Current: 2Amps.
4. AC Plug: Europen Standard or American Standard.
Remarks:
Standard charge: Under temperature 20±5 ºC, charge with 1I3 constant current till it reaches ( to) charge cut off voltage,(4.2V*n , among which , "n "is the number of single cells of the battery pack .) then starts to Charge with constant voltage, Till charge current<0.01C.
Standard discharge: Under temperature 20±5 ºC, discharge with 1I3 constant current till(to) discharge cut-off voltage.(2.75*n ,among which , "n" is the number of the single cells of the battery pack )

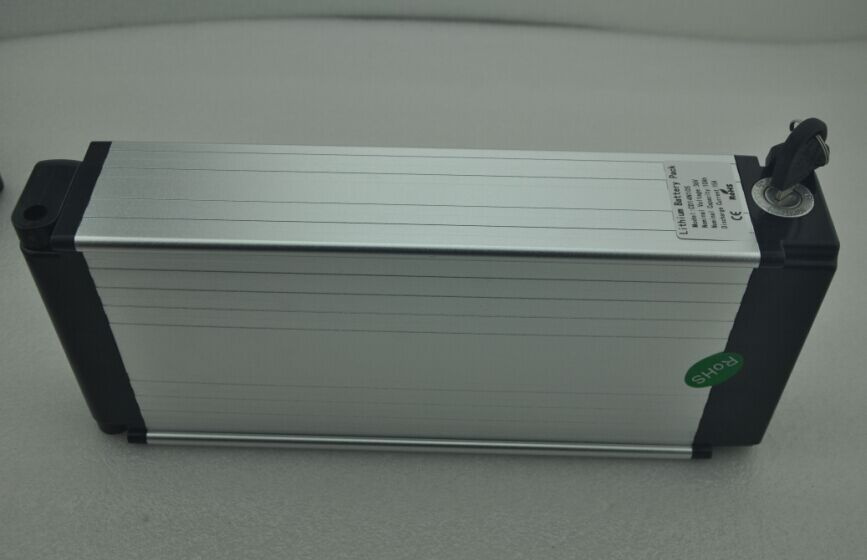

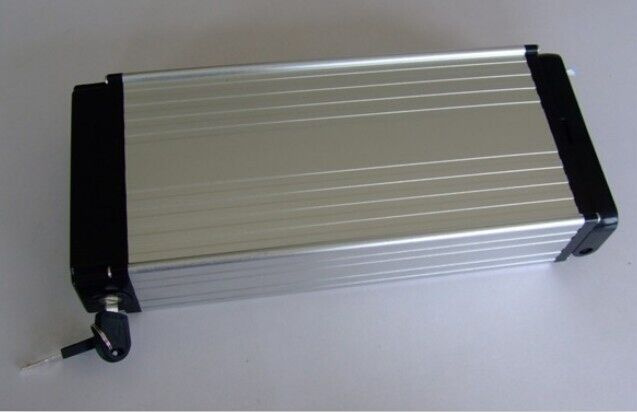

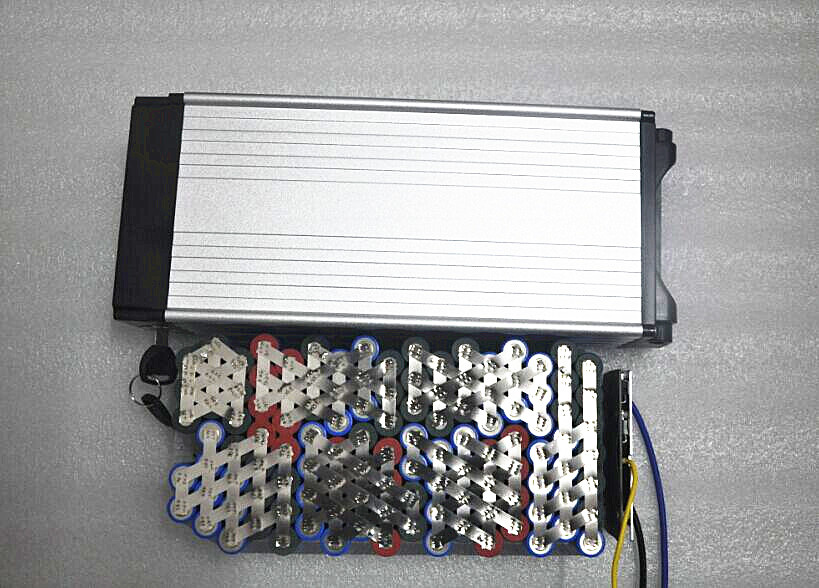

Pictures
Key ApplicationWidely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. Payment Terms1.We accept bank transfer(T/T) ,PayPal,Cash.2.If you prefer other payment method,please contact us by email. Shipping Terms1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )2.Bulk order: sending out by air/express/sea. Warranty Instructions1.We provide 2 years Warranty.2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.3.Goods should be returned in original condition to qualify for a replacement or repair. Advantages1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.2.Good quality, competitive price, fast delivery, excellent service. 3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality. 4.CE, RoHS, UN38.3, UL, MSDS certificates.5. Quick action&response,every inquires will be relied within 24 hours.
Other models:More models:| Model | Style | Material | Voltage | Capacity | Dimension | Weight | Charger |
| Include BMS and housing |
| (V) | (Ah) | L*W*K (mm) | (kg) | (A) |
| BBG-SF-LFP2408 | Silver fish | LiFePO4 | 24 | 8 | 75*110*378 | 4 | 2 |
| BBG-SF-LFP24081 | Silver fish | LiFePO4 | 24 | 8 | 89*89*401 | 4 | 2 |
| BBG-SF-LN2410 | Silver fish | LNCM | 24 | 10 | 89*89*401 | 3.5 | 2 |
| BBG-RR-LFP2408 | Rear rack | LiFePO4 | 24 | 8 | 70*150*245 | 4 | 2 |
| BBG-RR-LN2410 | Rear rack | LNCM | 24 | 10 | 70*150*246 | 3.5 | 2 |
| BBG-SF-LFP2410 | Silver fish | LiFePO4 | 24 | 10 | 75*110*378 | 4.2 | 2 |
| BBG-LF-LFP2410 | Frog | LiFePO4 | 24 | 10 | 80*150*180 | 4.2 | 2 |
| BBG-RR-LFP2410 | Rear rack | LiFePO4 | 24 | 10 | 70*150*245 | 4.2 | 2 |
| BBG-WB-LFP2410 | water bottle | LiFePO4 | 24 | 10 | 91*91*410 | 4.5 | 2 |
| BBG-SF-LFP2420 | Silver fish | LiFePO4 | 24 | 20 | 135.5*88.8*395 | 6 | 5 |
| BBG-SF-LFP3608 | Silver fish | LiFePO4 | 36 | 8 | 75*110*385 | 4.2 | 2 |
| BBG-RR-LFP3608 | Rear rack | LiFePO4 | 36 | 8 | 70*150*365 | 4.2 | 2 |
| BBG-LF-LFP3606 | Frog | LiFePO4 | 36 | 6 | 80*150*180 | 4 | 2 |
| BBG-SF-LFP3610 | Silver fish | LiFePO4 | 36 | 10 | 75*110*385 | 4.5 | 2 |
| BBG-RR-LFP3610 | Rear rack | LiFePO4 | 36 | 10 | 70*150*365 | 4.5 | 2 |
| BBG-WB-LN3610 | water bottle | LNCM | 36 | 10 | 91*91*435 | 4 | 2 |
| BBG-FB-LN3610 | Frog | LNCM | 36 | 10 | 80*150*180 | 4 | 2 |
| BBG-RR-LFP3612 | Rear rack | LiFePO4 | 36 | 12 | 69*150*480 | 4.5 | 2 |
| BBG-SF-LFP3612 | Silver fish | LNCM | 36 | 12 | 89*85*385 | 4.5 | 2 |
| BBG-RR-LN3614 | Rear rack | LiFePO4 | 36 | 14 | 68*148*385 | 5.5 | 3 |
| BBG--RR-LFP4810 | Rear rack | LiFePO4 | 48 | 10 | 68*150*480 | 7 | 2 |
| BBG-LFP4820 | Epoxy board & PVC packaged | LiFePO4 | 48 | 20 | 320*140*150 | 14.5 | 4 |
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
