48V0.7A Gigabit Passive Poe Injector Adapter for Wireless Aps IP Phones Cameras

Name: 48V0.7A Gigabit Passive Poe Injector Adapter for Wireless Aps IP Phones Cameras
Brand: all-electronics-online.com
SKU: 836332335
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 6.5-8.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PoE-48V-33.6W-PG
DC Output Voltage:	48V
DC Output Current:	700mA
Data Rate:	10/100/1000Mbps
Interface:	2 X Rj-45 (Data-in LAN+Poe out)
Power Out Pins:	Midspan 4,5(+),7,8(-);Endspan1,2(+),3,6(-)
Operating Temp:	0 to 40°c
Power Input:	100/240VAC
AC Input Current:	0.7A Max
Standard:	IEEE802.3at Non-Compatible
Output Type:	DC
Connection:	Desktop
Usage:	IP Camera, Wireless Ap, IP Phone
Bluetooth Standard:	N/a
Brand:	Fining

Product Description

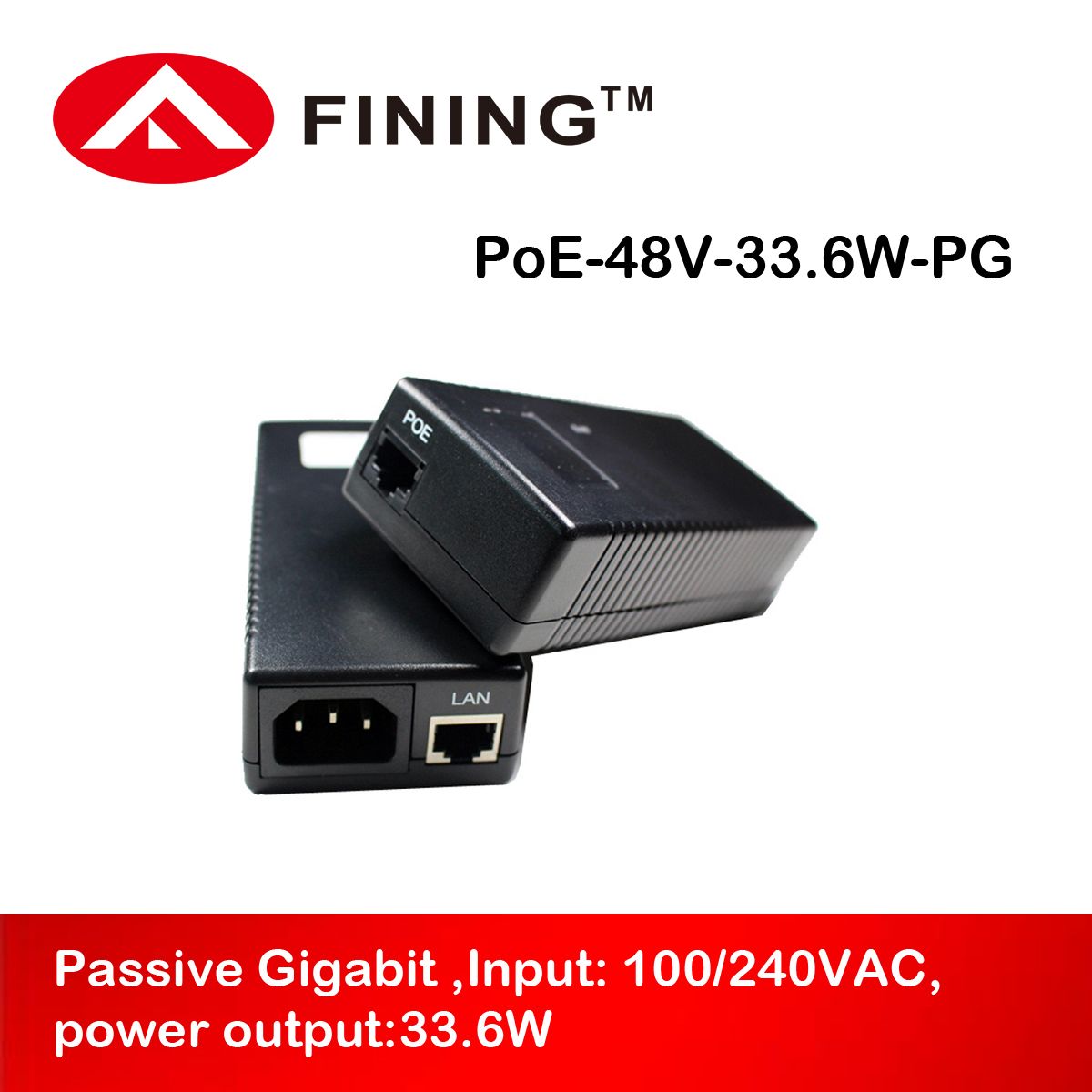

48V0.7A Gigabit passive PoE injector

The PoE injector can realize simultaneous delivery of device network data and power via one
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 33.6W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.

Product Features:

Delivers power and data through one Ethernet cable for easy network extension

Plug and Play, no configuration required

CE/FCC and RoHS Certified

Power Over Ethernet

One PoE port to power connected devices for flexible network deployment

Plug and Play

Plastic case & power plug integrated design

Easy setup, no configuration required

33.6W power output

Product Specifications:

Data Rate:	10/100/1000Mbps
DC Output Voltage:	48VDC
DC Output Current:	700mA
Interface:	2 X RJ-45 (Data-In LAN+PoE Out)
Power Out Pins:	Midspan 4,5(+),7,8(-);Endspan1,2(+),3,6(-)
Operating Temp:	0 to 40°C
Power Input:	100/240VAC
AC Input Current:	0.7A Max
Standard:	IEEE802.3at non-compatible
UL and CE/FCC Certified

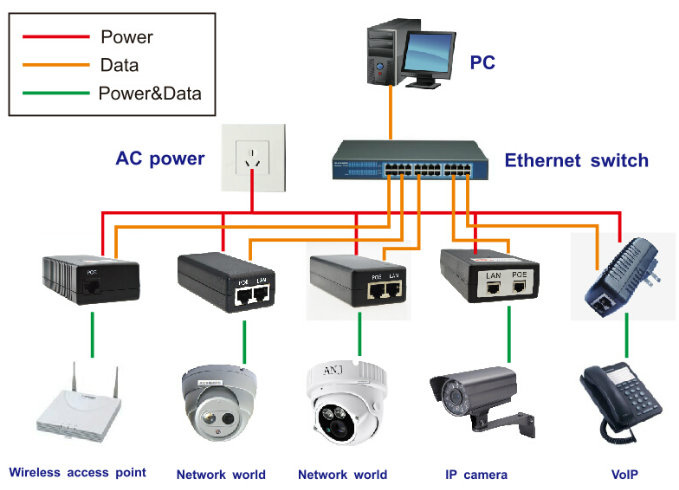

Product Applications:
IP Surveillance Industy: IP Network Camera
IP Phone: Desktop IP Phone &Wireless IP Phone
WLAN Devices: Wireless APS
Other Ethernet Devices

Our company supplies different kinds of power adapter products to global market with good quality and reasonable price, and very familiar with CE, FCC, UL, ETL standrads.

We have the following advantages:

1. Have cooperated with a lot of importers for more than 6 years.

2. Experenced in handling OEM orders.

3. Qiuck delivery time for decent orders.

4. Own designing team for new products development.

5. Factory audited by SGS, INTERTEK&WEINSPCTION.

6. Free samples could be provided.

We are power adapter manufacture and focusing on providing high efficiency and reliability power supplies. Our main products include PoE(Power over ehternet)products, custom AC/DC power adapters and LED Driver power supply. We can afford custom service according to your requirements.
