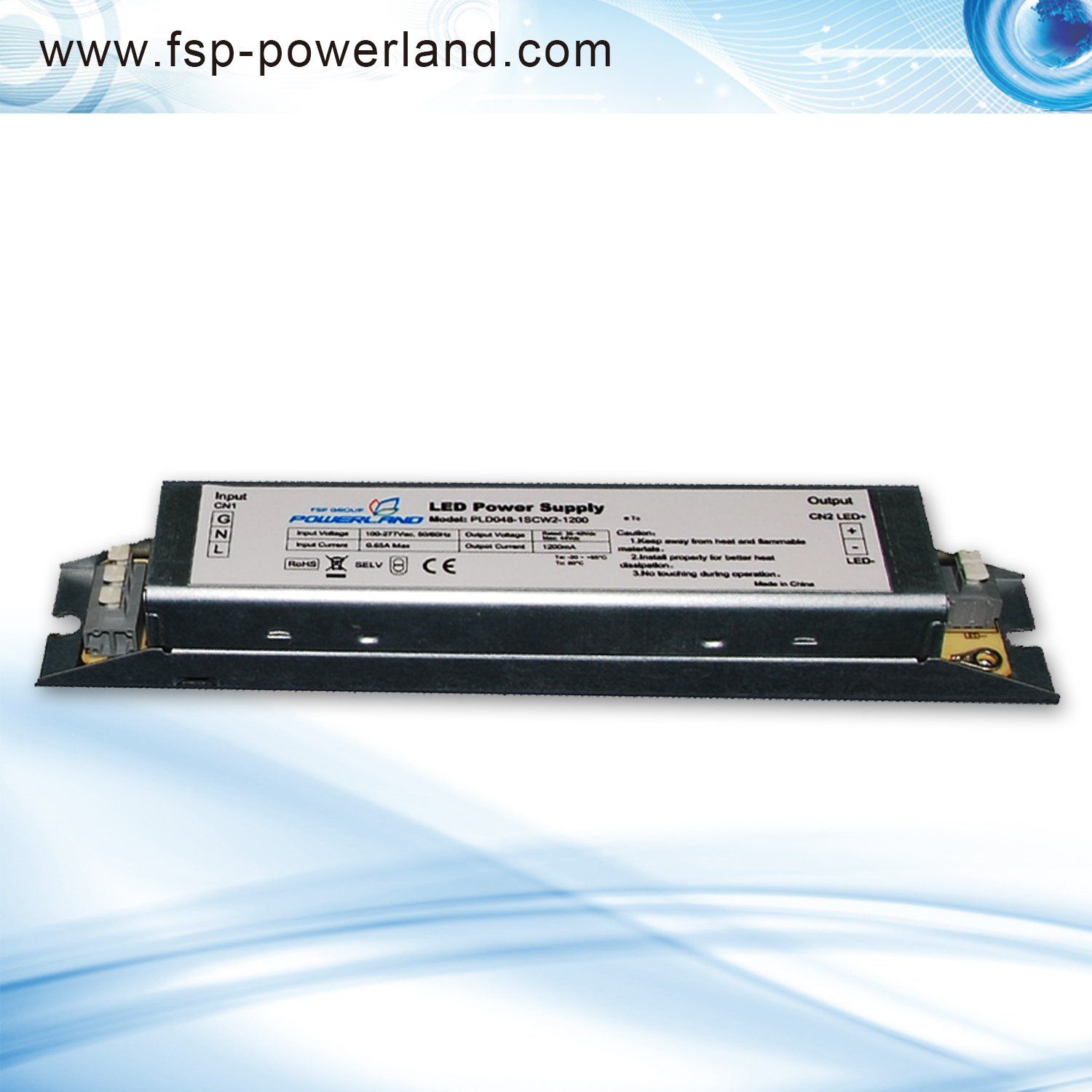

48W 1.2A LED Power Supply with Universal AC Input

Name: 48W 1.2A LED Power Supply with Universal AC Input
Brand: all-electronics-online.com
SKU: 813861735
Availability: InStock
Rating: 4.4 (100 reviews)

Price:	US $ 7.1-10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD048-1SCW2-1200
Output Power:	48W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~277VAC
Pack Sealing Size:	176X41X30 mm
Brand:	Fsp-Powerland

Product Description

48W 1.2A LED Power Supply with Universal AC Input

PLD048-1SCW2-1200 offers 48W constant current drivers with 90~277Vac input.The output current of this series is up to 1.2A, and designed for indoor applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 55ºC Tcase
3years warranty at 55ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD048-1SCW2-1200
Output Voltage	36~40V
Output Current	1.2A
Output Power	48W
Max. Current Ripple	720mA
Voltage Range	90~277Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.65A
Max. Input Power	63W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	85%
Max. Open Circuit Voltage	44V
THD	<20% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-25~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	176x41x30 mm
Mounting Length	222 mm
Overall Length	232 mm
Weight	0.31 kg
Life Time	50,000 hours @ full load, 55ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
