| Prod Model: |
GBL06, GBL10 |
| Ampere: |
4.0 |
| Voltage: |
50-1000V |
| Polarity: |
as Marked |
| Case: |
Molded Plastic |
| Lead: |
Solder Plated |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Bulk |
| Model: |
Kbl005,Kbl01,Kbl02,Kbl04,Kbl06,Kbl08,Kbl10 |
| Batch Number: |
2016+ |
| Brand: |
Sy |
Product Description

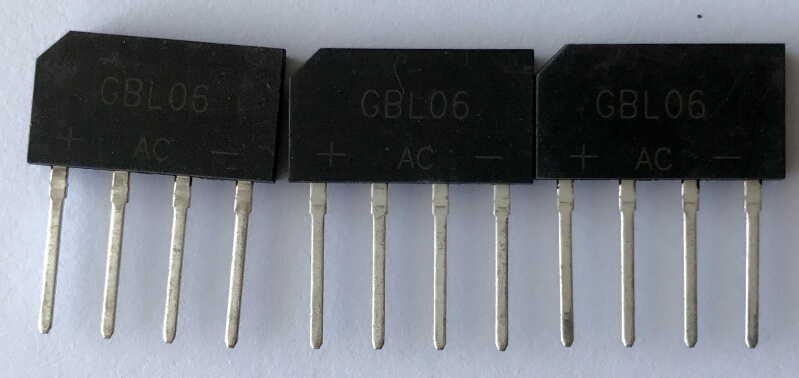

4.0A,50-1000V---Silicon Bridge rectifier---GBL005-GBL10
We are specialised in designing and manufacturing diodes and bridge rectifiers. If customers require, we can also offer OEM service according to customer's requirement.
We provide wide products lines, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive diodes, etc. The major application industries cover automobile, computer,consumer appliances, telecommunication ,etc.
Features
High current capability.
Low forward voltage drop.
Low leakage current.
High surge current capability.
Mechanical Data
Case : Molded plastic body .
Terminals: Plated axial leads,solderable per MIL-STD 750, method 2026.
Polarity : Polarity symbols marked on case.
Mounting position : Thru hole for #6 screw,5in.-lbs.torque max.
Weight : 0.22 ounce, 6.21 gram.
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Package |
| Reversee | Rectified | Prak Surge Current | Current | Voltage |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC |
| VRRM | I(AV) | IFSM | IR | IF | VF |
| V | A | A | μA | A | V |
| KBL005 RS401 | 50 | 4.0 | 150 | 10 | 4.0 | 1.1 | KBL |
| KBL01 RS402 | 100 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL02 RS403 | 200 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL04 RS404 | 400 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL06 RS405 | 600 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL08 RS406 | 800 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL10 RS407 | 1000 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ4005 GBJ4005 | 50 | 4.0 | 150 | 10 | 4.0 | 1.1 | GBJ4 |
| KBJ401 GBJ401 | 100 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ402 GBJ402 | 200 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ404 GBJ404 | 400 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ406 GBJ406 | 600 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ408 GBJ408 | 800 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBJ410 GBJ410 | 1000 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU4005 | 50 | 4.0 | 150 | 10 | 4.0 | 1.1 | GBU |
| GBU401 | 100 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU402 | 200 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU404 | 400 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU406 | 600 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU408 | 800 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| GBU410 | 1000 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBU6A | 50 | 6.0 | 250 | 10 | 6.0 | 1.0 | KBU |
| KBU6B | 100 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBU6D | 200 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBU6G | 400 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBU6J | 600 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBU6K | 800 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBU6M | 1000 | 6.0 | 250 | 10 | 6.0 | 1.0 |
| KBPC6005 | 50 | 6.0 | 125 | 10 | 6.0 | 1.0 | KBPC6 |
| KBPC601 | 100 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| KBPC602 | 200 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| KBPC604 | 400 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| KBPC606 | 600 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| KBPC608 | 800 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| KBPC610 | 1000 | 6.0 | 125 | 10 | 6.0 | 1.0 |
| GBU6005 | 50 | 6.0 | 150 | 10 | 6.0 | 1.1 | GBU |
| GBU601 | 100 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| GBU602 | 200 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| GBU604 | 400 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| GBU606 | 600 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| GBU608 | 800 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| GBU610 | 1000 | 6.0 | 150 | 10 | 6.0 | 1.1 |
| KBU8A | 50 | 8.0 | 250 | 10 | 8.0 | 1.1 | KBU |
| KBU8B | 100 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBU8D | 200 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBU8G | 400 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBU8J | 600 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBU8K | 800 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBU8M | 1000 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| GBJ8005 | 50 | 8.0 | 170 | 10 | 8.0 | 1.1 | GBJ6 |
| GBJ801 | 100 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| GBJ802 | 200 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| GBJ804 | 400 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| GBJ806 | 600 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| GBJ808 | 800 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| GBJ810 | 1000 | 8.0 | 170 | 10 | 8.0 | 1.1 |
| KBPC8005 | 50 | 8.0 | 250 | 10 | 8.0 | 1.1 | KBPC8 |
| KBPC801 | 100 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBPC802 | 200 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBPC804 | 400 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBPC806 | 600 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBPC808 | 800 | 8.0 | 250 | 10 | 8.0 | 1.1 |
| KBPC810 | 1000 | 8.0 | 250 | 10 | 8.0 | 1.1 |
Packing Details
1. T/P: 5000EA per box, 50,000EA per carton,
2. SMD: 5000EA per reel, 80,000EA per carton,
3. SOD-123: 3000EA per reel, 120,000EA per carton
L/T:1-3W.
if you have more interest or have any doubt, and need technology support, pls feel free to contact us, we will try our best to serve you.
