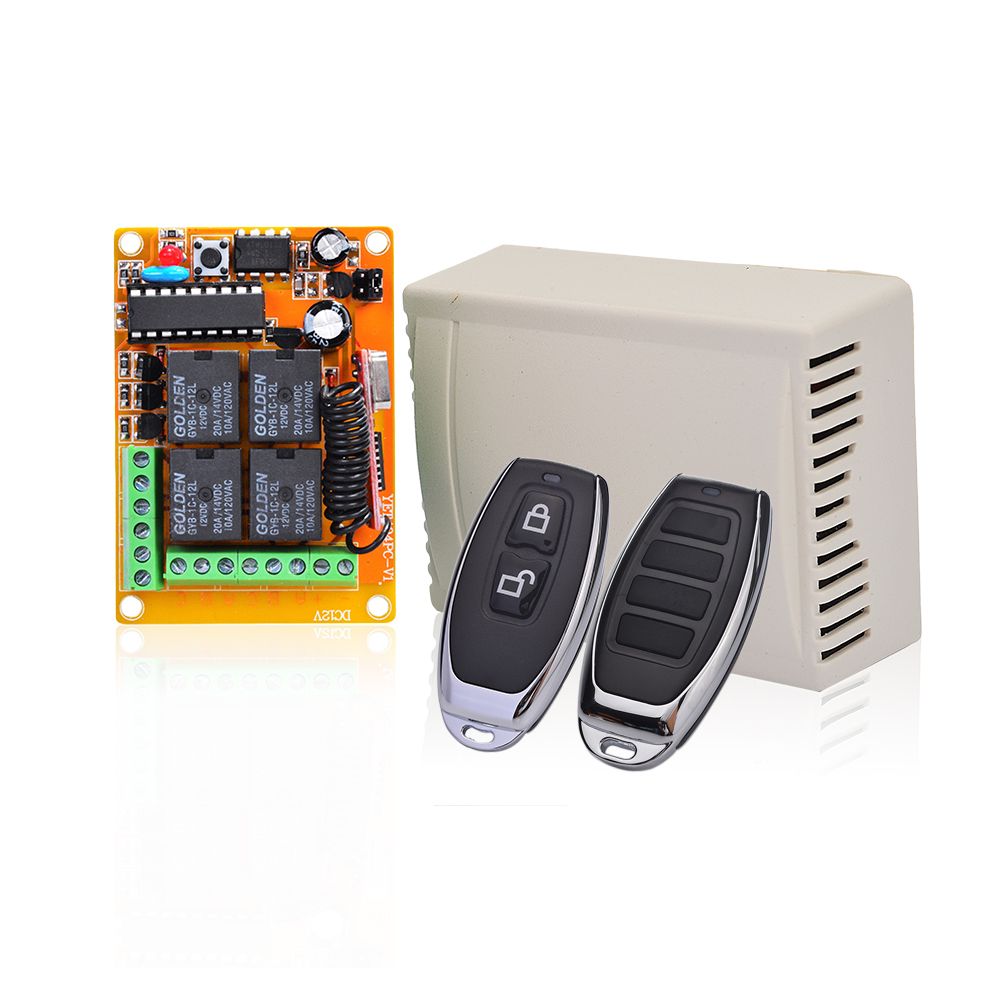

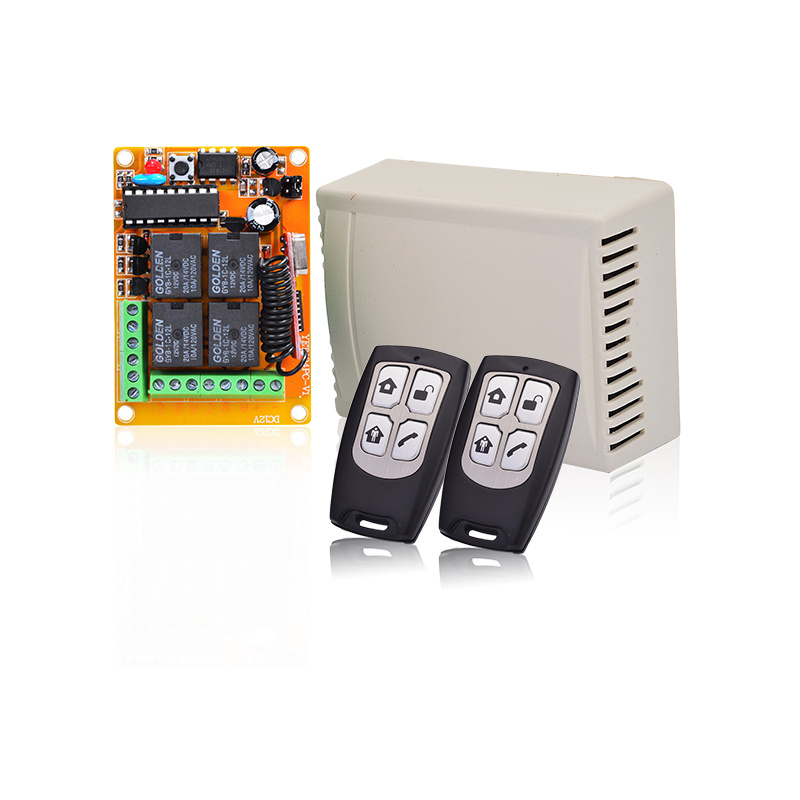

4CH Channel Wireless Remote Control Switch Receiver Module Yet404PC+Yet005

Product Description

4CH Channel Wireless Remote Control Switch Receiver Module YET404PC+YET005

Use range:

Our remote control widely used in garage door ,rolling door ,electronic gate,led light,window  industral control ,home appliance,car alarm system, home/store anit-theft alarm,other industrial control and so on.

1. Brief introduction
Our factory design and produce the four channel wireless intellect receiving control what can provide switch signal to the four relays, so it can meet many requirements such as: control motor's corotation and reversal; the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.
This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however, it should learning again by the owner if want to obtain the right of use.
2. The way of output
A. Self-lock control -- "1" connect
B. Interlock control -- "2" connect
C. Inching lock control -- disconnect
D. Two channel Self-lock and another two channel Inching lock --"1" and "2" both connect
(check the Circuit diagram for details)
3. Learning way and steps
 Learning fixed code & learning code:
1. Press learning key of receiver-the pilot lamp light-release learning key and pilot lamp extinguish , indicate enter into the status of learning.
2. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automatically exit learning state. Receiver automatically exit learning state if you do nothing in 32 seconds. (Can store up to 30pcs this type remote control)

Learning rolling code:

1. Press learning key of receiver-the pilot lamp light-release learning key and pilot lamp extinguish , indicate enter into the status of learning first time.
2. Press any button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step "1", enter into the status of learning second time.
4. Press the same button in step "2", the pilot lamp flash 5 times, learning successful. (Can store up to 6pcs this type remote control)

4. Delete memory message
Press the learning key of the receiver-pilot lamp light-hold on pressing over 8 seconds until the pilot lamp extinguish, which indict success to delete the memory message.

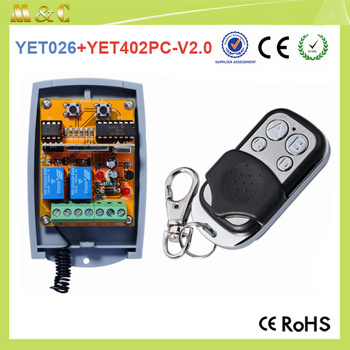

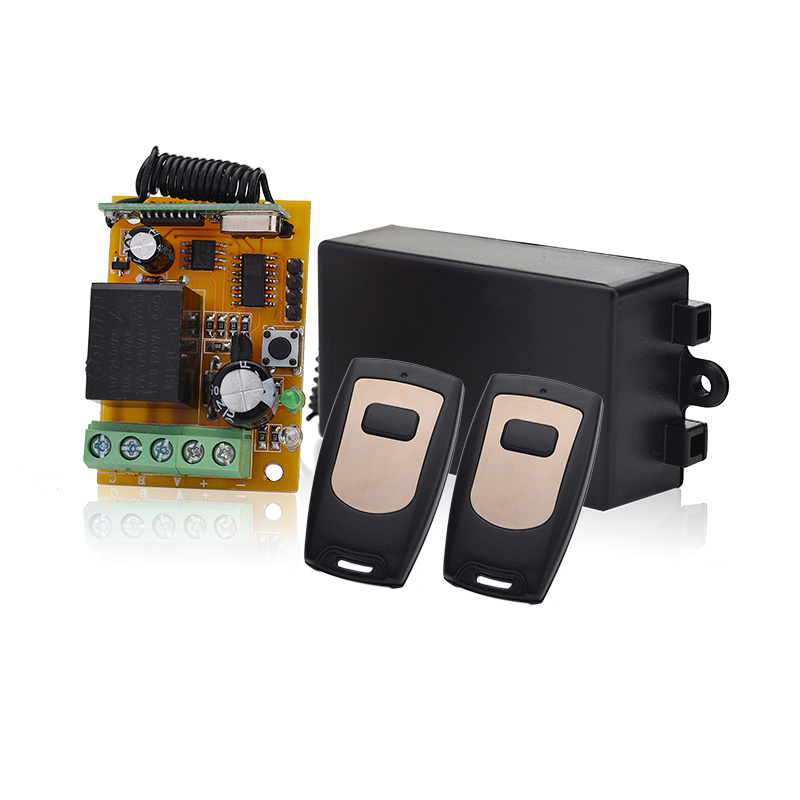

Related Products



Certifications CE & Rohs



Our Company


Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.

Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.

We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project

Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM,any your customized products we can help you to design and put into production
4. Protection of your sales area, ideas of design and all your private information
5. Deliver by air mail or ship for your orders.

Extra service:
1. Logo printed
2. Sample for testing could be arranged
3. Sample could ship out by DHL,FEDEX or TNT or EMS in 3 days after confirmation.


FAQ
Q1:How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.

Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.

Q3: How to program it?
