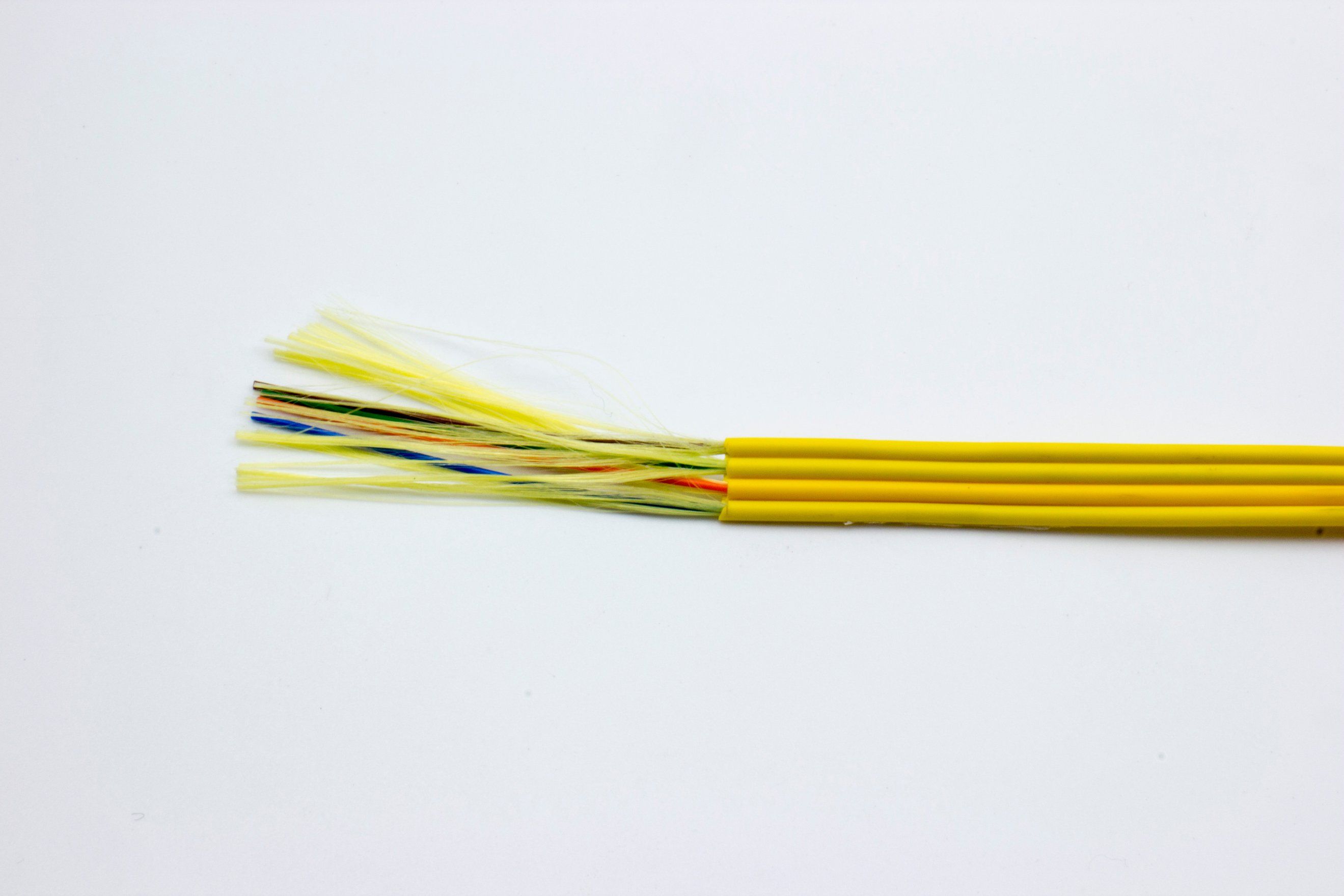

4f Fiber Optic Parallel Cable for Communication

Name: 4f Fiber Optic Parallel Cable for Communication
Brand: all-electronics-online.com
SKU: 817112655
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4 core drop cable
Jacket Color:	Orange
Application:	Communication
Type:	Multi-mode Fiber
Certification:	IEC,Tlc,Reach,SGS
Allowed Tensile Strength:	100n<200n
Sheath Material:	LSZH

Product Description

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Application
Used in indoor cabling;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames;
Used in pigtails and patch cords.

Specification

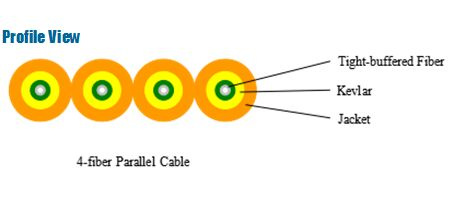

Fiber Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Min. Bend Radius (mm)		Range of Temperature (ºC)
Fiber Count	Cable Dimension (mm)	Cable Weight (kg/km)	Long Term	Short Term	Long Term	Short Term	Dynamic	Static
4	8.4×2.0	13.2	100	200	200	1000	50	30	-20~+60

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
            2. The cable dimension and weight are in accordance with tight-buffered fiber with φ0.6 outer
                diameter;
            3. The minimum bend radius (static) is 15mm when G657 fiber is used.

Options
Fiber Type: G652,G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
