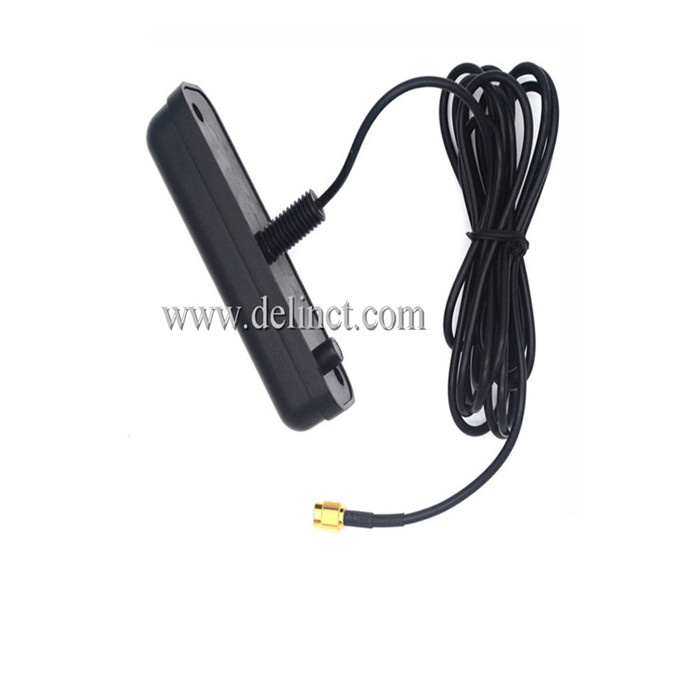

4G Flat Antenna High Quality Antenna (middle line)

4G Flat Antenna High Quality Antenna (middle line)
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: DL-4G-018
Frequency(MHz): 824~960 1710~2710 2300~2683
Lead Time: 3-7 Days
Sample Time: 1-3 Days
Radiation: Omnidirectional
Gain (dB): 2
Color: Black
Weight(G): 44.5
Usage: Broadcasting Antenna
Operating Wavelength: Medium Wave
Material: Al
Directionality: Omnidirectional Antenna
VSWR: <=2.0

Product Description

Antenna Performance
NO(Item) (Specifications)
1Range of Receiving Frequenc824~960 1710~2710 2300~2683
3Gain (dB)>2.0
4Standing wave ratio V.S.W.R≤2.0
5Radiationomnidirectional
6Power Capacityperpendicular
7Connector TypeSMA gold plated bow head
8Colorblack
9Weight(g)≥44.5
10size (mm)150*21*6
materials and coatings
order numberpart name material quality cladding materialremarks
1 inner conductor Brass Wiregold-platinghard gold
2dielectricteflon
3hullyellow metal(HPb59-1)gold-plating hard gold

electrical performance
order numbersurveillance projectqualification remarks
1characteristic impedance 50Ω
2temperature range-65~+165ºC
3frequency range 0~12GHZ
4Dielectric Strength1000V(rms)
5contact resistance inner conductor≤3mΩouter conductor ≤2mΩ
6insulation resistance ≥5000MΩ
7voltage standing-wave ratio ≤1.25(flexible cable)
8Salt spray test (HRS)24

mechanical behavior character

order numbermechanical behavior [characterqualification remarks
1mechanical endurance ≥500times





Shenzhen DeLin Communication Technology Co., Ltd. (formerly: Shenzhen Universe Communication Tech. Limited) is located in the beautiful coastal city--Shenzhen. Shenzhen is the leader of Chinese electronic technology, is also the world's electronic technology bridge. It has a unique geographical location and innovative spirit. DeLin Communication (parent company is Gaoke Zhong Shi Telecommunication Technology Co., Ltd. Which is established in 1993) is a professional high-tech enterprise which engaged in wireless mobile communications and satellite communication products development, production and sales. We have a group of pioneering, creative and experienced management personnel, more than 200 staffs, and 20% of them are bachelor and master's degree or higher.

The company's professional R & D team continues to introduce and R&D new products to connect with international market. Our company is committed to the design, development and production of wireless, satellite communication products. It is a professional enterprise of communication solution design and production. Our company focuses on development and production of antenna series, module series, application solutions, and application terminals. Our products are widely used in mobile phones, mobile base stations, automotive equipment, security, walkie-talkie, car networking, Internet of things, navigation, aviation, air-conditioning, detection and other wireless terminals and other fields. It so far has designed and manufactured for thousands of companies at home and abroad.

DeLin Communication Co., Ltd., as the marketing strategy management leader of parent company, bears the responsibility and performance, and also is the sales(agent) of well-known brands at home and abroad at the same time.
