GUANGDONG SIMPACT TECHNOLOGY CORP. >> 4G Wire Semi Flexible Coaxial Cable

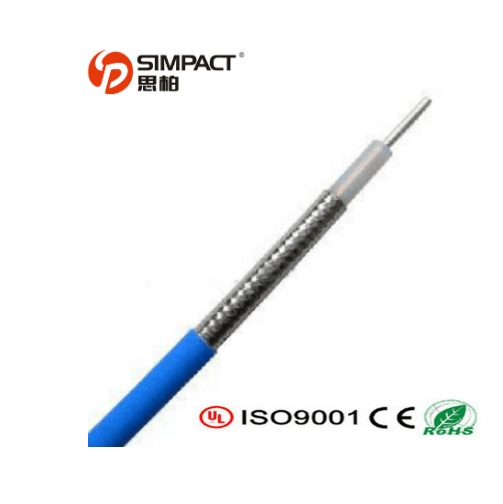

4G Wire Semi Flexible Coaxial Cable

4G Wire Semi Flexible Coaxial Cable
Price: US $ 0.1/Box
Trade Terms: FOB,CFR,CIF
Min Order: 300/Box
Pay Type: L/C,T/T,Western Union
Prod Model: S-16062015105
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: 305m/ Wooden Drum/ Box
Inner Conductor: 0.91mm Spccs
Dielectric: 2.98mm PTFE
Outer Conductor: 3.58mm Tin Dipped Copper Braid
Application: Coaxial Cable
Conductor Material: Copper
Certification: UL
Cover Material: PTFE
Type: RF
Model: S-16062015105
Brand: Simpact/OEM

Product Description

Semi Flexible Coaxial Cable
Construction:
Inner Conductor: 0.91mm SPCCS
Dielectric: 2.98mm PTFE
Outer Conductor: 3.58mm Tin Dipped Copper Braid
Jacket: With or without FEP/LSZH/PVC

Electrical & Mechanical Characteristics:
Capacitance (pF/m): 95.1
Impedance (Ω ): 50+/-2
Velocity of Propagation (%): 70.0
Max. Operating Frequency (GHz) 20.0
Max. Operating Voltage (VRMS) 1900.0
Time Delay(ns/m) 4.7
Min. Inside Bend Radius (mm): 8.0
Operating Temp Range (º C) -55 to +155

Semi-Flexible coaxial cable, 0.141inch diameter 50 ohm coaxial cable with silver-plated copper center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available too.

Packing Lengths305m/roll
Inner packingWooden reel, plastic reel
Outer packingCarton box, pull out box, pallet available
Other packing available according to client's request
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
