Product Description

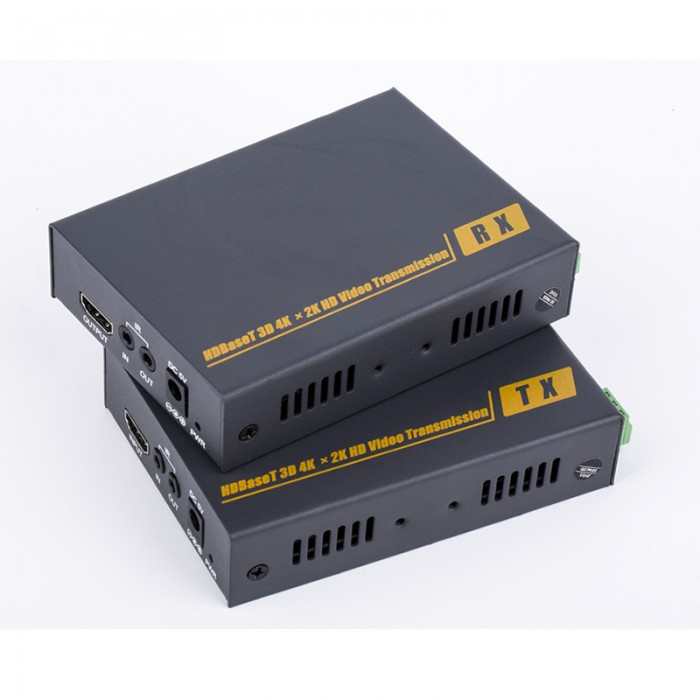

The 4K 100m HDMI KVM Extender(RS232) provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
1. Features
1.Transmits HDMI video signals up to 100m over a single CAT6 cable;
2.Support video resolution up to 1920*1080P@60Hz and 4K*2K;
3.Support HDBaseT technology;
4.Support KVM, keyboard and mouse signal transmission;
5.Support RS232 signal bidirectional transmission, baud rate self-adaptive;
6.Compliance with HDMI 1.4 and HDCP 1.2 standard;
7.High compatibility, can auto-match source and display device;
8.Built-in automatic adjustment system, make the image smooth, clear and stable;
9.Built-in ESD protection system;
10.Simple to install, plug and play;
2. Specifications:
| Parameter | Description |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 10.2Gbps |
| Resolution | 1920X1080P@60Hz,4K*2K |
| Connector | HDMI-A |
| Impedance | 100Ω |
| RS232 | Interface | Industrial terminal |
| Signal direction | Bidirectional |
| Baud rate | Self-adaptive, Max:115200bps |
| Data bits | 8 |
| KVM | Interface | PC: MINI-USB
Keyboard and mouse: USB-A |
| Ethernet | Interface | RJ45 |
| Transmission distance | 1080P: CAT6---100m
4K*2K: CAT6---70m |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 6W |
| Temperature | Operating: -5ºC ~ +70ºC |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 105*76*27mm |
| The warranty | 1 year free warranty |
3. Panel:
|
|
| Port name | Description |
| HDMI IN/OUT | HDMI signal input/output |
| RJ45 | Ethernet interface |
| RS232 | Serial port( G: Ground, T: transmit, R: receive ) |
| K/M TO PC | Connect to PC |
| K/M | Connect to keyboard and mouse |
| LED indicator | Description |
| LINK | Video signal connection indicator |
| POWER | System power indicator |
4. Package list:
1.HDMI transmitter .................. 1 pc
2.HDMI receiver ..................... 1 pc
3.Power adapter ....................2 pcs
4.User manual .................... 1 pcs
5.MINI USB cable ................. 1 pcs
5. Installation:
1,Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2,Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3,Connect the HDMI output port of receiver to the display device with HDMI cable,
4,Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT6 cable.
