0.4kw~500kw AC Drives, AC Variable Frequency Drive with Modbus
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FC150 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
380VAC |
| Input Voltage: |
220V/380V/440V |
| Output Current: |
2.3~900A |
| Solutions: |
Textiles,Papermaking,Food,Machine Tool |
| Output Power: |
0.2~500kw |
| Output Frequency: |
0~600Hz |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
Sigle & Three Phase |
| Brand: |
Janson Controls |
Product Description
FC150 series frequency inverter has the following features:
Rich vector V/F control algorithm.
Optimized V/F control has better low speed stability, stronger low frequency torque output
capability and better dynamic response.
Smaller and more compact volume.
In the full power range, the same power models compare with the old series of products
EH600, the volume decreases by 20%~40% .
More abundant functions.
485 communications, external high precision PID, multi-speed and simple PLC, swing
frequency , fixed length and counting function.

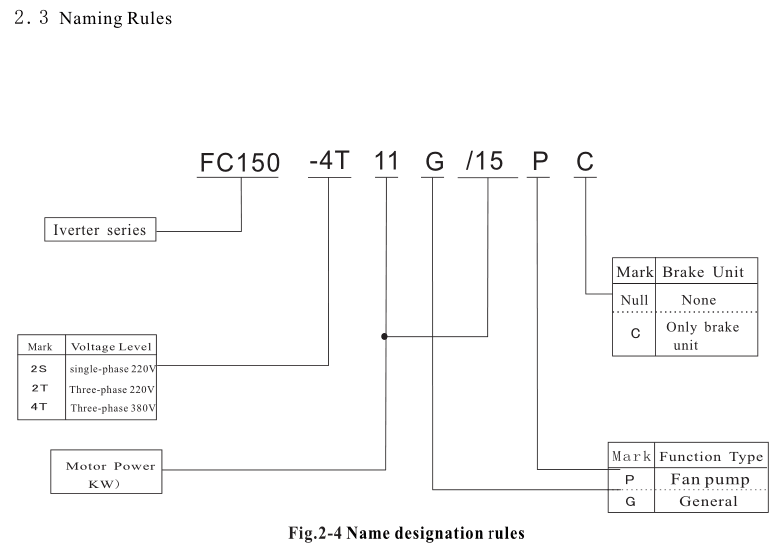

Model : ( Three-Phase 380V Range: -15%~20%)
Inverter Model | Capacity Power | Input Current | Output Current | Adoptable Motor |
| FC150-4T-0.7G | 1.5KVA | 3.4A | 2.3A | 0.75KW |
| FC150-4T-1.5G | 3.0 | 5.0 | 3.7 | 1.5 |
| FC150-4T-2.2G | 4.0 | 5.8 | 5.1 | 2.2 |
| FC150-4T-4.0G | 5.9 | 10.5 | 8.5 | 4.0 |
| FC150-4T-5.5G | 8.9 | 14.6 | 13 | 5.5 |
| FC150-4T-7.5G | 11 | 20.5 | 17 | 7.5 |
| FC150-4T-11.0G | 17 | 26.0 | 25 | 11 |
| FC150-4T-15G | 21 | 35.0 | 32 | 15 |
| FC150-4T-18.5G | 24 | 38.5 | 37 | 18.5 |
| FC150-4T-22G | 30 | 46.5 | 45 | 22 |
| FC150-4T-30G | 40 | 62.5 | 60 | 30 |
| FC150-4T-37G | 57 | 76.0 | 75 | 37 |
| FC150-4T-45G | 69 | 92.0 | 91 | 45 |
| FC150-4T-55G | 85 | 113 | 112 | 55 |
| FC150-4T-75G | 114 | 157 | 150 | 75 |
| FC150-4T-90G | 134 | 180 | 176 | 90 |
| FC150-4T-110G | 160 | 214 | 210 | 110 |
| FC150-4T-132G | 192 | 256 | 253 | 132 |
| FC150-4T-160G | 231 | 307 | 304 | 160 |
| FC150-4T-185G | 255 | 333 | 330 | 185 |
| FC150-4T-200G | 287 | 380 | 377 | 200 |
| FC150-4T-220G | 311 | 429 | 426 | 220 |
| FC150-4T-250G | 355 | 470 | 465 | 250 |
| FC150-4T-280G | 396 | 525 | 520 | 280 |
| FC150-4T-315G | 439 | 605 | 600 | 315 |
| FC150-4T-350G | 479 | 665 | 660 | 350 |
| FC150-4T-400G | 530 | 730 | 725 | 400 |
| FC150-4T-450G | 600 | 825 | 820 | 450 |
| FC150-4T-500G | 660 | 910 | 900 | 500 |
Products Specifiction: | Basic Function | Specification |
| Maximum output frequency | 0~600Hz |
| Carrier frequency | 2.0kHz~10kHz;According to the load characteristics, carrier
frequency can be adjusted automatically |
| Input frequency resolution | Digital setting : 0.01Hz Analog setting : Maximum frequency x0.025% |
| Control mode | 0:V/F 1:Vector mode 0 control |
| Speed range | 1:50(Vector mode 0 ) 1Hz/150% rated torque |
| Overload capability | G type:150% rated current for 60s;
P type:110% rated current for 60s. |
| Torque boost | Auto Torque boost Manual Torque boost ; 0.1%~20.0%. |
| V/F curve | Four modes : Line , Multi-point , Square V/F curve,V/F separation |
| Jog control | Jog frequency range:0.00Hz to F00.03(Max frequency) |
| Accelerate/Decelerate curve | Line or S-curve Acc/Dec mode ,four kinds of Acc/Dec time Range
of Acc/Dec Time0.0~6000.0s. |
| DC brake | DC brake frequency : 0.00Hz to Maximum frequency
brake time : 0.0 to 100.0s
brake current value : 0.0 to 150% |
| Simple PLC, Multi-speed | 16-speed operating through built-in PLC or control terminal |
| Built-in PID | Close loop control system can be formed easily by using PID |
Automatic voltage
regulating (AVR) | Output voltage is regulated when voltage of the power network
changes |
Overvoltage and overcurrent
stall control | During operation automatically limits the inverter output current
and bus voltage, to prevent fan overcurrent and overvoltage trip. |
Rapid current limiting
function | Minimizing flow failures, protect the normal operation of the
inverter |
| Instantaneous stop non-stop | Load feedback energy compensation voltage is reduced and continue
to maintain a short time when change is momentarily interrupted. |
| Speed tracking start | For high-speed rotation of the motor speed identification, impact-
free smooth start |
| Rapid current limit | Rapid software and hardware limiting technology to avoid
frequent converter overcurrent fault. |
| Virtual IO | Four sets of virtual DO,five sets of virtual DI, enables easy logic
control. |
| Freatures | Specification |
| Timing Control | Timing control: set the time range 0.0Min~6500.0Min |
Multi-motor
switch | Two independent motor parameters, enabling two motors switching control |
| Bus Support | Two independent Modbus communication, Profibus-DP |
Motor overheating
protection | Optional IO expansion card 1, analog input T_Motor(AI5) acceptable the input of
motor temperature sensor .(PT100,PT1000) |
| Running |
| Command source | Given the control panel, control terminal, serial communication port given. It
can be switched by a variety of ways. |
| Torque boost | Auto Torque boost Manual Torque boost ; 0.1%~20.0%. |
| Frequency source | Eleven kinds of frequency sources: digital setting, analog voltage setting, analog current setting, pulse setting, or serial port and so on. It can be switched by a variety of ways. |
Auxiliary
frequency source | Eleven kinds of auxiliary frequency source. Flexible implementation of auxiliary
frequency tuning, frequency synthesis. |
| Input terminal | Standard:
Six digital input terminals, one only supports 50khz high pulse input
Three analog input terminals,two support -10V~10V voltage input
One support 0 ~ 10V voltage input or 0 ~ 20mA current input
Expansion capability:
Two digital input terminals
One analog input terminal, support -10V ~ 10V voltage input, and supports
PT100 / PT1000 |
Output
terminal | Standard:
One high-speed pulse output terminal (optional open collector type), support of
square wave 0 ~ 50kHz signal output
One digital output terminal
Two relay output terminals
Two analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V
voltage output
Expansion capability:
One digital output terminal
One relay output terminal
One analog output terminal, support 0 ~ 20mA current output or 0 ~ 10V voltage
output |
| Display and operation |
| LED display | Display parameters and status information |
The key lock and function
selection | Achieve some or all of the keys locked, scope definition section keys
to prevent misuse. |
| Protection function | Input/output phase failure protection ,Overcurrent protection ;Over
voltage protection; Undervoltage protection; Overheat protection ;
Overload protection |
| Options | Brake assembly, simple IO expansion cards, multi-IO expansion card |
| Environment |
| Application environment | In-door , free from direct sunlight , dust , corrosive gas ,
combustible gas ,oil mist , steam , water drop and salt . |
| Altitude | Lower than 1000m |
| Vibration | Less than 5.9m/s(0.6g) |

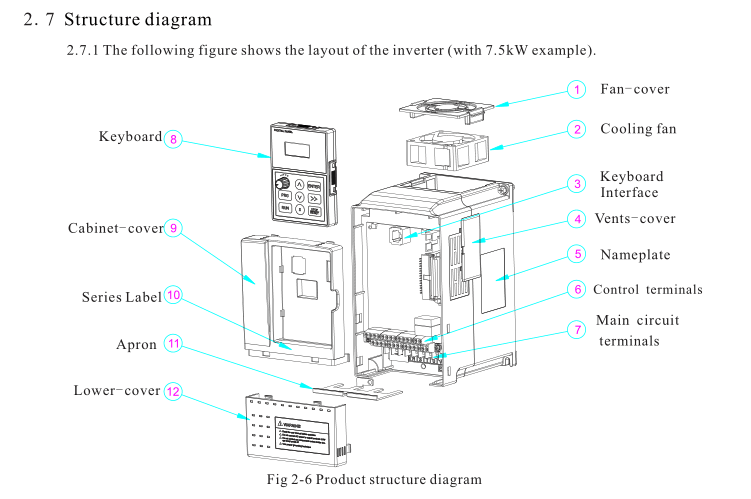

Products Construction,

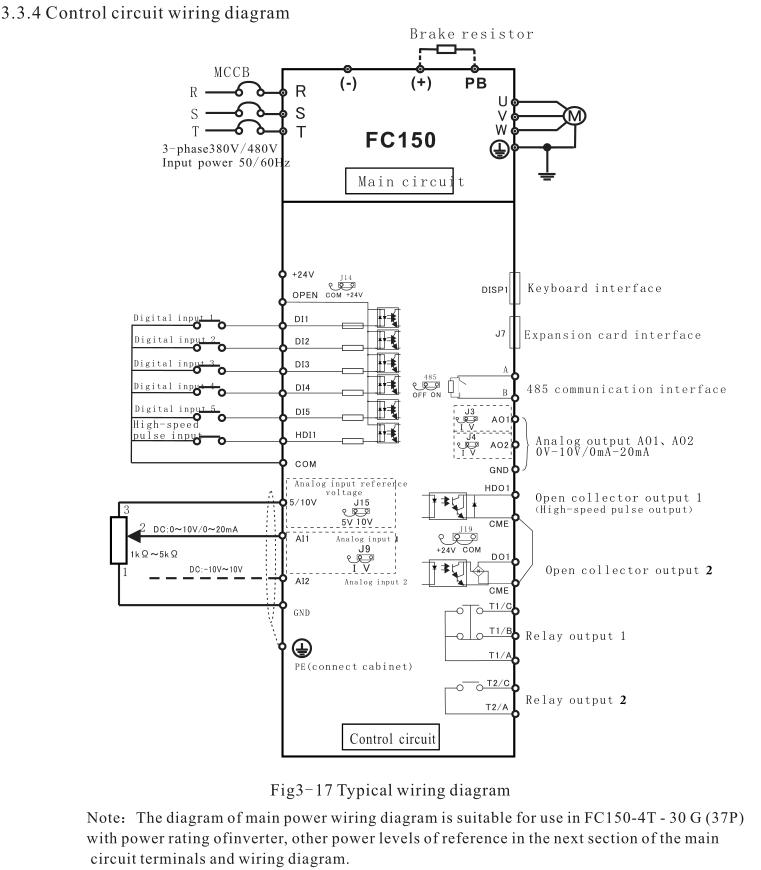

Control circuit wiring diagram
CE and ISO Certificate
Real Solution,
Use effect
Effect 1
FC150 series inverter output low frequency jog aspect is more straightforward, most inverter can overcome the
shortcoming of low frequency torque, both to protect the electrical equipment, and bring significant economic
benefits;
Effect 2
Smooth soft start function FC150 series inverter device to reduce the impact on the grid, superior protection
features greatly improve the process equipment, improve product quality;
Effect 3

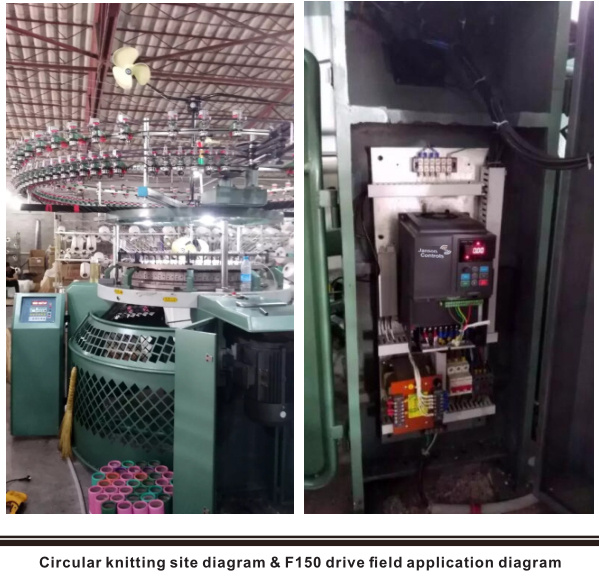

FC150 series inverter good thermal design, long-term work to fully meet the circular knitting machine in a high
temperature environment
Note: Please go our website or Contact Me for detailed Size Information. Our website is www.jansoncontrols.com
Our Service:
1. Samples
Samples are Available for Testing and Market Test, also we have a long-term cooperation with DHL,Ups etc, Freight will be much cheaper than their normal one.
2. Warranty of Products
24 months of the warranty. Provide strong technical support.
3. Guides and After-service Consultancy
You can find me all the time, my mobile phone can be always connected.
A. Need an Accessory?
B. Products Repair?
C. Power Problems to Solve?
D. Power Protection Solutions, etc.?
4. OEM Service for ac inverter
All OEM Project can be acceptable by my side, just tell me your requst and then solution will be offered.
Located in Shenzhen, China, Janson Controls Company Limited is a factory that obtained ISO9001: 2008 and CE certificate, we are highly skilled in focusing on green energy of harmonic drive, including high frequency inverter, low voltage inverter, and different variable frequency inverter for general purpose.
As a council member of Inverter Branch of China Electric Appliance Industrial Association, all of our software and hardware are developed by its own D&R, and the main components are from top-brands in the world, e. g. IGBT from Infineon of Germany, capacitor from NCC of Japan, rectifier bridge from Microsemi, PCB board from TDK of Japan, and fan from NAIS of Taiwan and also NIDEC of Japan, MCU from DSP of IT in USA, MOS Tube from ST etc.
Our products mainly serve for Equipment Manufacturing, Energy-saving&Environmental protection, and New energy field, and are widely used in elevator, crane, machine tool, metal products, wire and cable, plastic cement, printing packaging, textile chemical fiber, construction materials, metallurgy, colliery, civicism and auto industry.
With timely service and superior quality, we have gained high reputation for its applicability and reliability in this industry, together with competitive price make us develop a word-wide market network and our products have been exported to southeast Asia, Russia, Europe, Pakistan and many other countries, and what we offer is not only products but also solutions and services to meet all customers' needs.
Janson is strived to become the best reliable supplier of automated products, our mission is to improve the industrial automation application, and our value is to establish a human-centric development platform.
A warm welcome is extended to visit Janson Controls when you are visiting China.
