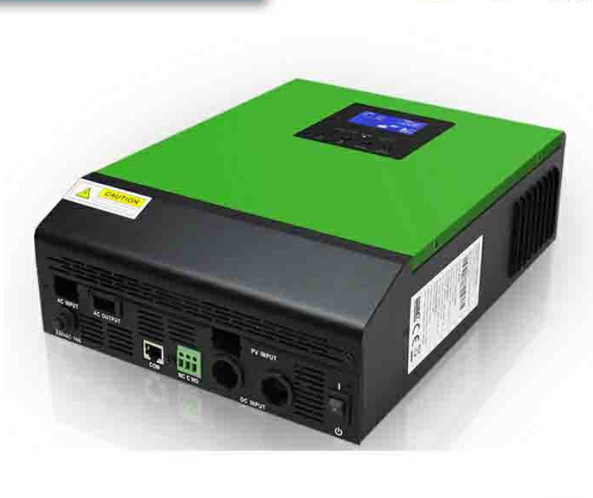

4kw - 5kw Solar Power Inverter Built-in MPPT with Solar Charge Controller

Name: 4kw - 5kw Solar Power Inverter Built-in MPPT with Solar Charge Controller
Brand: all-electronics-online.com
SKU: 829401995
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNS114
Attery Voltage:	48VDC
Floating Charge Voltage:	54VDC
Overcharge Protection:	60VDC

Product Description

CNS114 Series Pure Sine Wave Hybrid Charger Inverter 4~5KVA

CNS114 is equipped with MPPT solar charger controller to maximize and regulate DC power from colar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, it is worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, cmputers, power tool and battery chargers.

Features:

Pure sine wave inverter.
Built-in MPPT solar charge controller.
Selectable charging current based on applications.
Configurable AC/Solar input priority via LCD setting.
Compatible to mains voltage or generator power.
Auto restart while AC is recovering.
Overload and short circuit protection.
Smart battery charger design for optimized battery performance.
Cold start function.
Parallel operation with up to 6 units only available for 4KVA/5KVA
Optinal Remote Control Panel available.

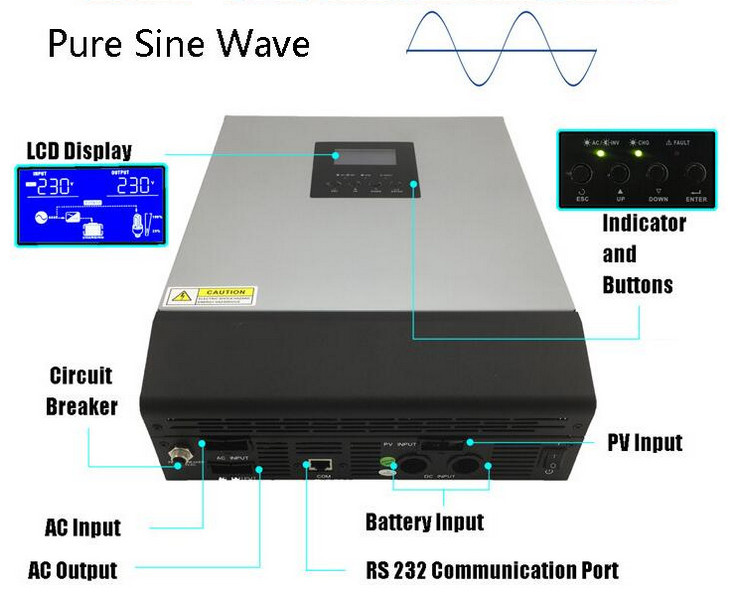

Pure Sine Wave Hybrid Charger Inverter

Specifications

Model		CNS114 4000-48	CNS114 5000-48
AC Input	Nominal Pwer	4000VA/3200W	5000VA/4000W
	Nominal input voltage	230VAC
	Low Line Disconnect	170Vac±4%(Normal) or 90Vac±4% (Wide&Gen)
	Low Line Re-connect	180Vac±4%(Normal) or 100Vac±4%(Wide&Gen)
	High Line Disconnect	280Vac±4%(Normal) or 280Vac±4%(Wide&Gen)
	High Line Re-connect	275 Vac±4%(Normal) or 275Vac±4%(Wide&Gen)
	Max AC Input Voltage	Max:300VAC
	Frequency	50Hz/60Hz(Autodetection)
AC Output	AC Voltage Regulation (Batt.Mode)	230VAC±5%
	Output Voltage Waveform	Pure sine wave
	Surge Power	8000VA	10000VA
	Transfer Time	10ms(for personal computer); 20ms(for home appliances)
	Full load efficiency	93%
Solar charger & AC charger	Maximun PV Array Power	4000W
	MPPT Range Operating Voltage	60VDC~115VDC
	Maximun PV Array Open Circuit Voltage	145VDC
	Maximun Solar Charge Current	80A
	Maximun AC Charge Current	60A
	Maximun Charge Current	140A
	Standby Power Consumption	2W
	Efficiency	98%
Battery& AC charger	Battery Voltage	48VDC
	Floating Charge Voltage	54VDC
	Overcharge Protection	60VDC
General specifications	Operating Temperature Range	0ºC~5ºC
	Storage Temperature	-15ºC~60ºC
	Operation humidity	5% to 95% Reletive Humidity (non condensing)
	Dimention(LWH)	120295468mm
	Net Weight(kg)	11kg

Product specifications are subject to change without further notice.
