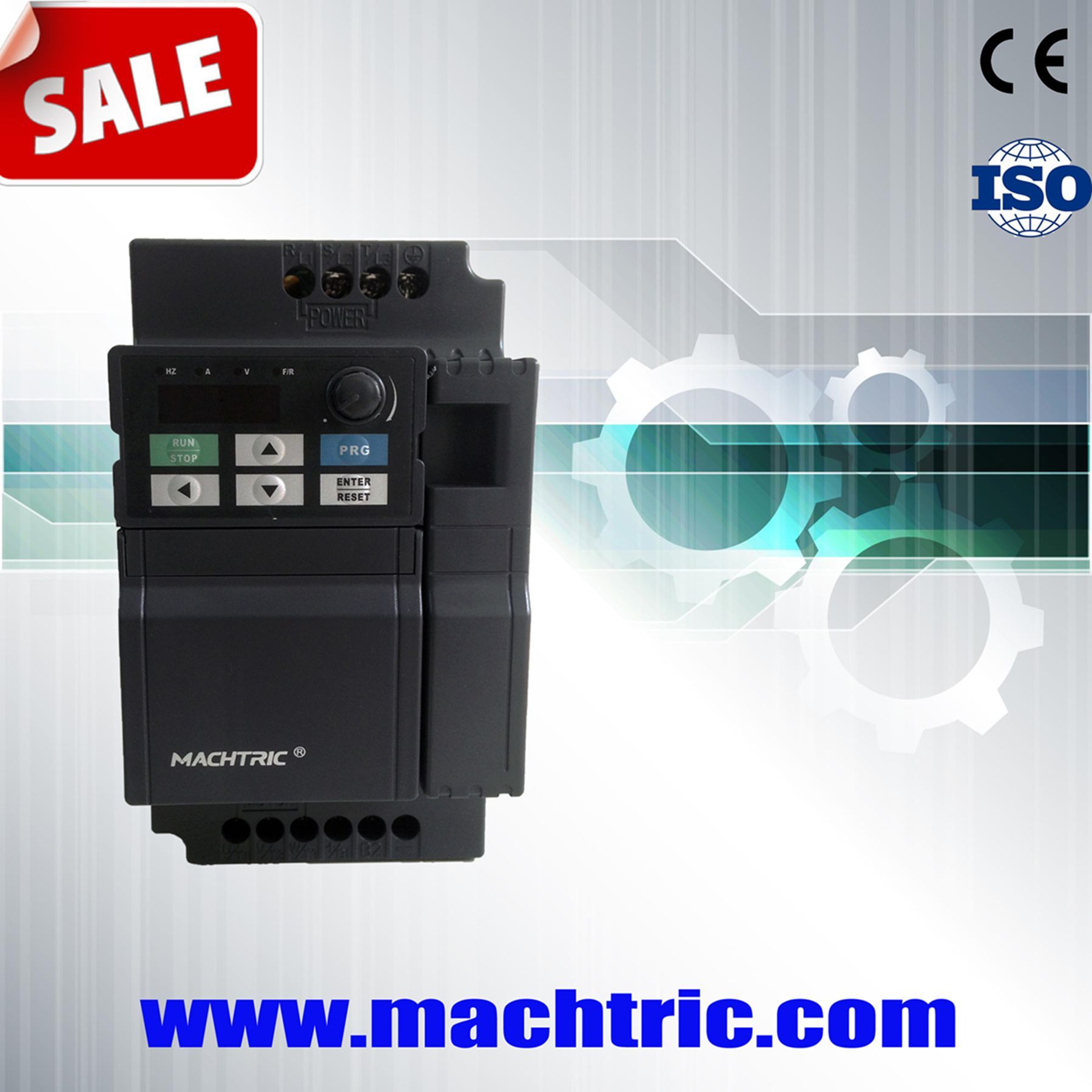

0.4kw Single Phase Frequency Inverter for AC Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
S900GS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
V/F Control |
| Power Range 220V: |
0.4kw - 1.5kw |
| Power Range 380V: |
0.75kw - 22kw |
| Out Put Frequency Range: |
0.10Hz~400.00Hz |
| Output Frequency Accuracy: |
0.01Hz |
| Multifunctional Output Terminal: |
2 Multi-Function Output Terminals for Displaying O |
| Pid Control: |
Built-in Pid Control |
| Protective Structure: |
IP20 |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Current |
| Output Type: |
1/3 Phase |
| Switch Mode: |
Close Loop Vector Control |
Product Description
" Machtric"
Focused on Customer Automation Soultion & Represents
Machtric --------------------"We care for your business"
Product Description
| Items | S900GS |
Power Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
Voltage Range | 220V:170V~240V 380V:330~440V |
Output | Voltage Range | 220V:0~220V 380V:0~380V |
FrequencyRange | 0.10`400.00Hz |
Control method | V/F control, Space vector control. |
Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output Frequency Accuracy | 0.01Hz |
V/F Control | Setting V/F curve to satisfy various load requirements |
Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| PID Control | Built-in PID control |
RS485 | Standard RS485 communication function(MODBUS) |
Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected; Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed | Six multifunction input terminals, 15section speed can be set |
Automatic voltage regulation | Automatic voltage regulation function can be selected |
Counter | Built -in 2group of counters |
Protection/ Warning Function | Overload | 150%,60 second(Constant torque) |
Over Voltage | Over voltage protection can be set |
Under Voltage | Under voltage protection can be set |
Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
ronment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
Ambient Humidity | Max.95%(non-condensing) |
Altitude | Lower than 1000m |
Vibration | Max. 0.5G |
Structure | Cooling Mode | Forced air cooling |
Protective Structure | IP20 |
Installation | Mode | Wall Mounted |
More information welcome to visit our website
Company Information
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series
Dedicated series: S100 series, S200 series(circular knitting machine),
3. Soft starter: CSX series, CSXi series, IMS2 series, MVS series;
4. Power controller: SPC3 series;
5. Intelligent control meter: Counter CU, Counter CA, length signal generator, rotate speed meter;
6. Peripheral: three-color light, signal amplifier
7. Control system of integrative machine: SGP series
If you have any question feel free to contact me
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
