4mm Cartridge Heater for The 3D Printer

Name: 4mm Cartridge Heater for The 3D Printer
Brand: all-electronics-online.com
SKU: 690720491
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	customize

Product Description

3D printer 4mm Diameter 100W Cartridge

Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.

Cartridge heater:

Tube diameter: Φ3mm-Φ30mm
Tube Material:SS304;SS316,SS321,NICOLOY800 etc
Insulation Material:High-purity Mgo
Reisistance wire element:Ni-Cr or FeCr
Lead Connection Option: Crimped or Swaged leads
Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone high temperature frberglass)

Heat intensity	Not exceeding 30Wcm2 (advisable)
Power	Depends on the dimension
Escape of current (when cold)	<=0.1mA a 242 v.
Insulation (when cold)	5 Min Ohmios 500 Watts minimum
Dielectric strength	1500v. 1/seg
Working temperature	750ºG max.
Tolerance of length	+/-1.5%
Tolerance of diameter	-0.01 a -0.06 m/m
Tolerance of cut of connexion	+/-15 mlm
Power tolerance (w)	5 % - 10 %
Cold areas	Depends on length and diameter 5-25mm

Commom cartridge can be devideded :
1) High power density (heat area sufuce power 10~25w/cm2)

Working temperature≤450 degrees.

2) middle,low power density (heat area sufuce power 5~11/cm2)

working temperature≤ 300 degrees

Votage:12~250V (or as requirment)

High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments

Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C.

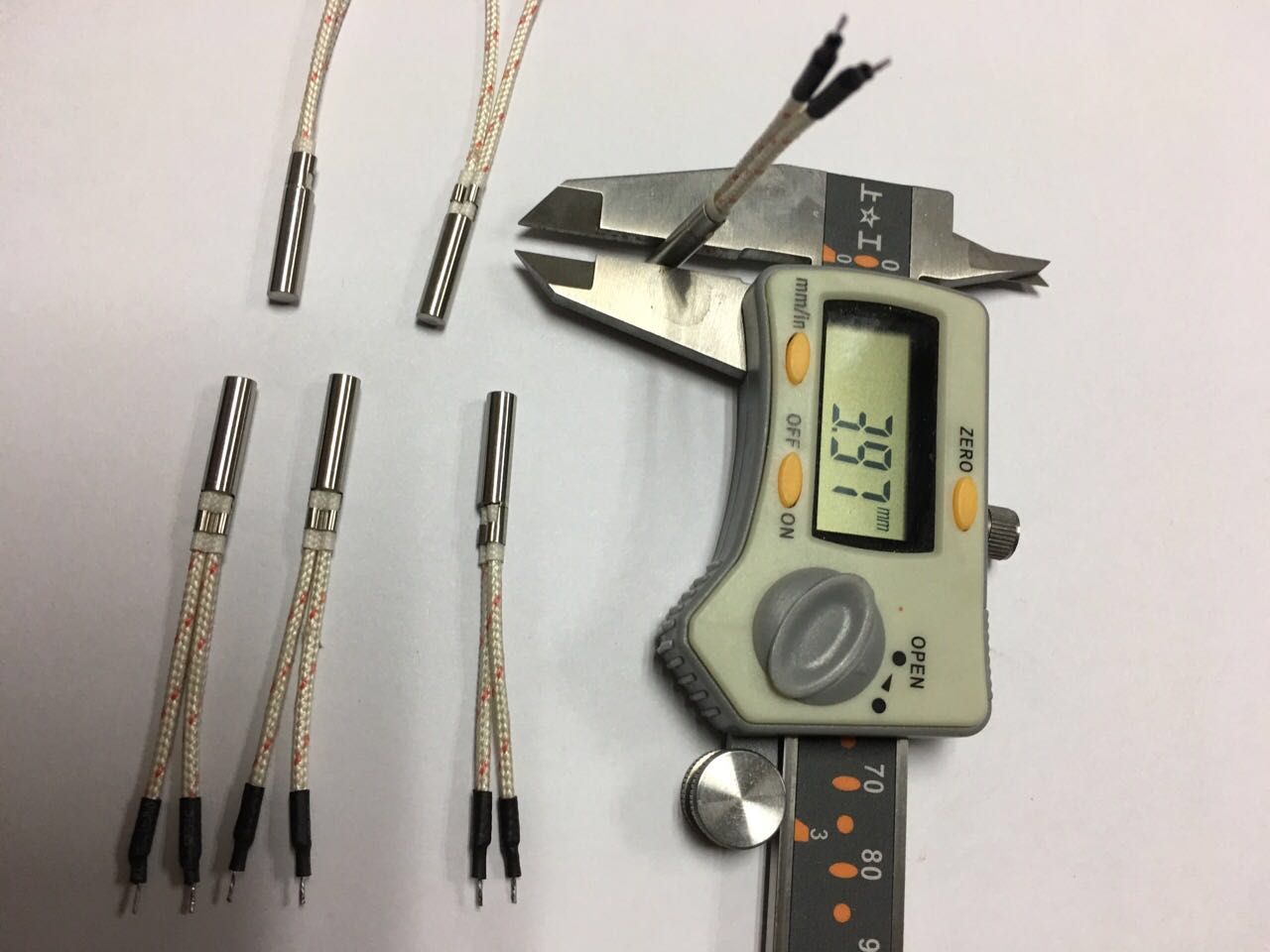

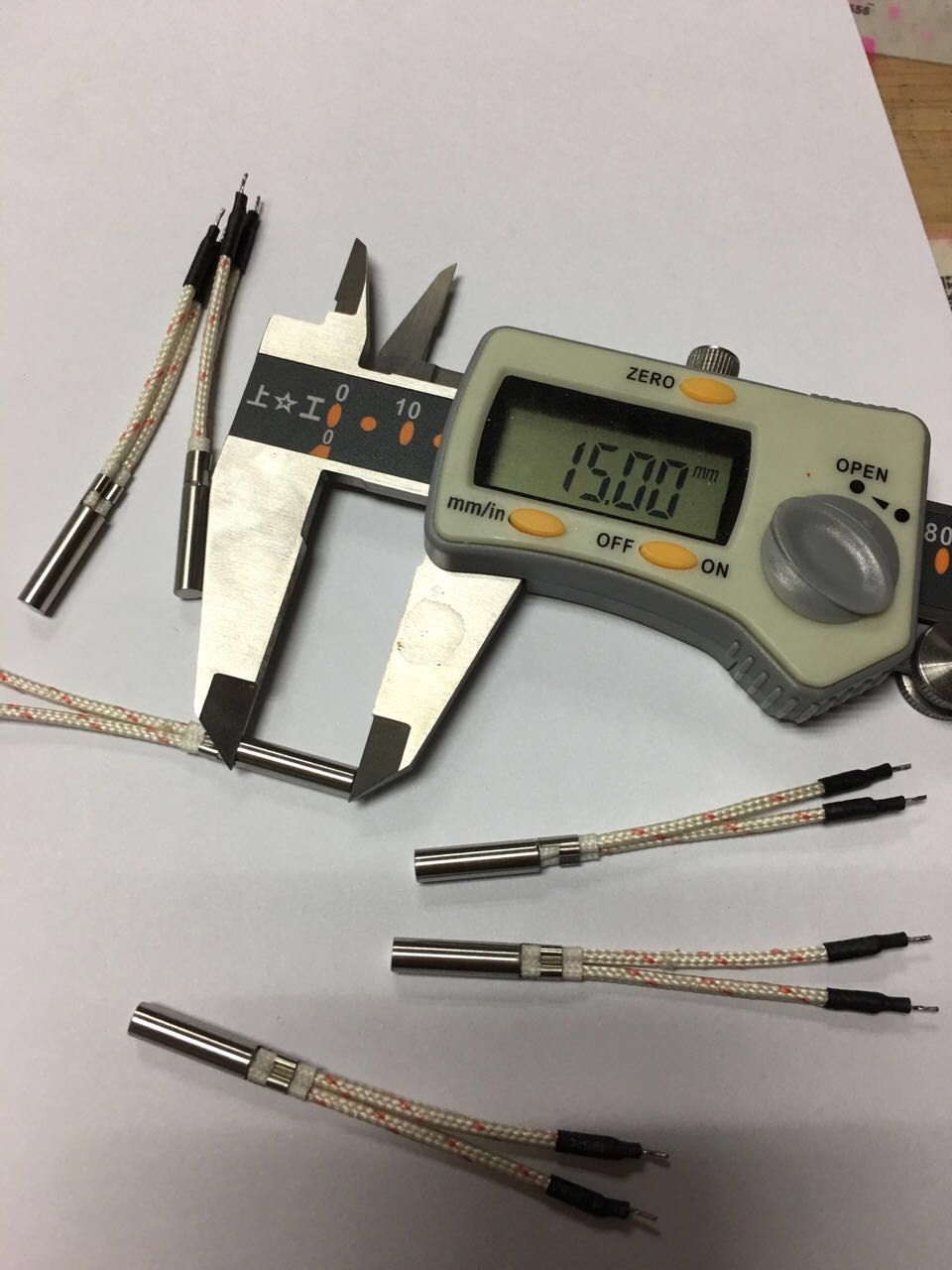

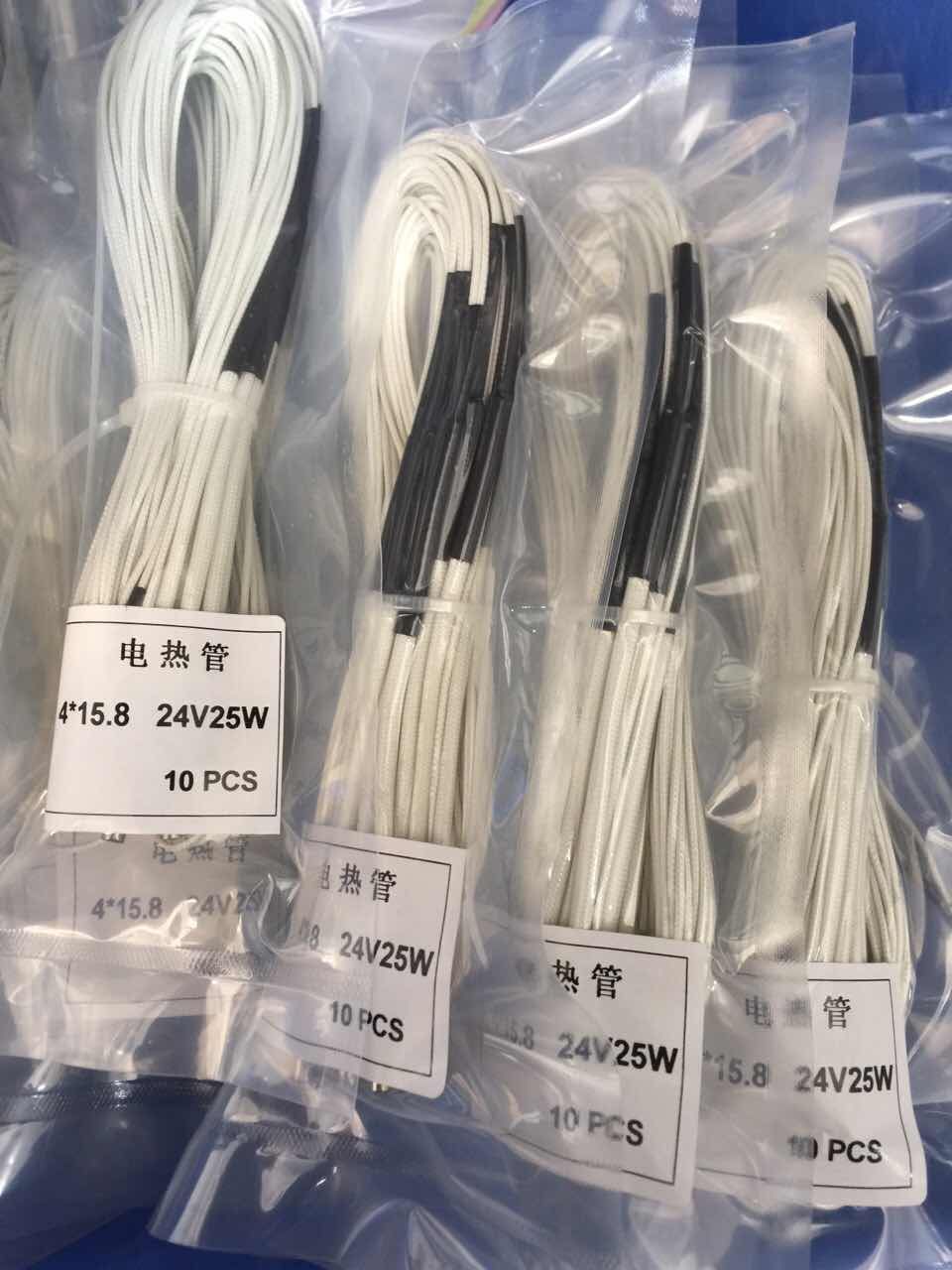

Products Image:
