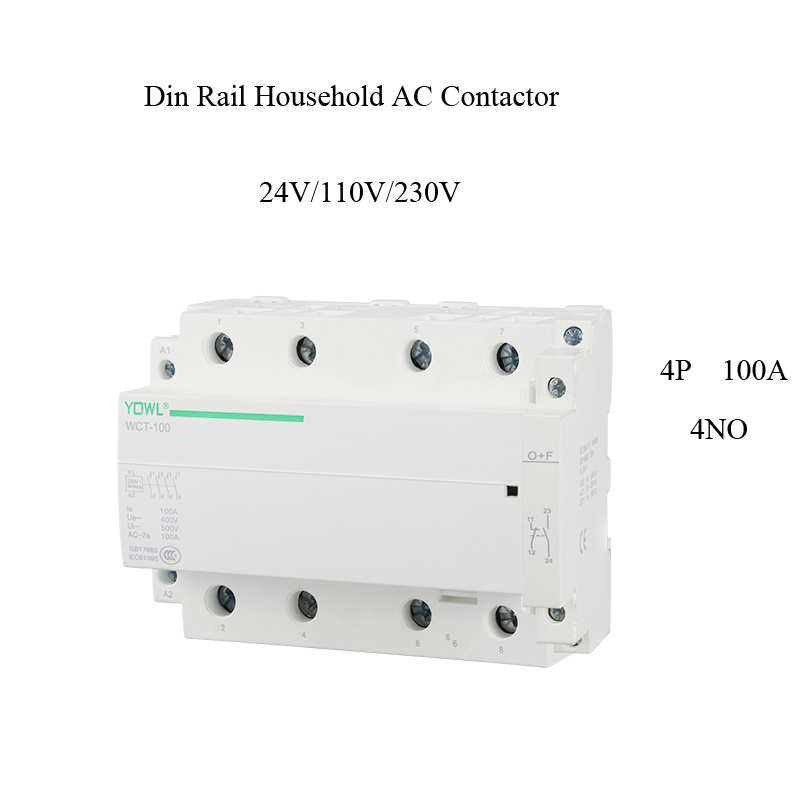

4p 100A Ict Household Modular DIN Rail AC Contactor

Prod Model:	WCT
Coil Voltage:	12V, 24V, 48V, 220V, 240V
Current:	100A
Frequency:	50/60Hz
Numbers Of Pole:	4p
Rated Wokring Voltage:	400VAC

Product Description





1. Long life high reliability
2. It will match to thermal relay ,protect over load or lack phase circuit
3. No Noise
4. No temperature rise
5. Auxiliary contact without vibration
6. Long life, high reliability
7. Anti electromagnetic interference
8. Intelligent anti electricity dazzling


Technical Data



Power circuit
Voltage rating (Ue)       1P , 2P	250VAC
3P , 4P	400VAC
Frequency	50HZ or 60Hz
Endurance ( O-C )
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional characteristics
Insulation voltage Ui	500VAC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5kv(4kv for 12/24/48VAC )
Degree of protection   device only	IP20
IEC60529     Device in modular enclosure	IP40
Operating temperature	-5 to 60 degree
Storage temperature	-40~70degree
Tropicalization (IEC60068-1)	Treatment 2 (relative humidity 95% at 55 degree )
ELSV compliance (extra low safety voltage )for 12/24/48vac versions
The products control confirms to the selv(safety extra low voltage )requirements
