| Prod Model: |
PG430 M8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Jvm9 |
| Rated Current: |
5-15A;15-30A;30-60A |
| Rated Voltage: |
230V/400V |
| Leakage Operating: |
300mA/500mA |
| Color: |
White/Grey |
| Certificate: |
CE ISO9001 |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Accord With Standards: |
Nfc61450 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description
Specification:

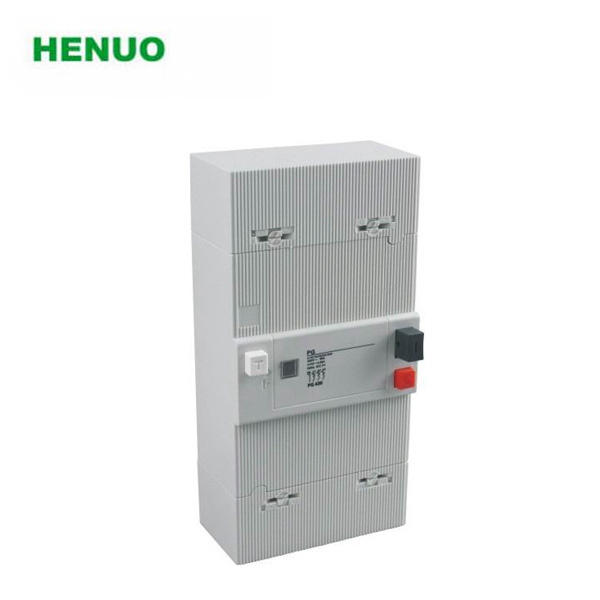

PG series adjustable residual current breaker(gardy RCCB, gardy ELCB)is suitable for AC 50/60Hz, 230/400V circuit, prevents from overloading, short-circuit etc. On the occasion of shock hazard or earth leakage, it will trip immediately. At the same time, the rated current of overload protection can be adjustable.
Technical Specifications
Type
PG230
PG430
Poles
2P
4P
Rated Voltage (V)
250V/440V
Rated Current (A)
10, 15, 20, 25, 30, 45, 50, 60A Adjustable
Leakage Motion Current (mA)
300mA, 500mA
300mA, 500mA
Leakage Dead Current (mA)
150mA, 250mA
150mA, 250mA
According with Standard
NFC61450
Specifications
Gardy circuit breaker
1. High breaking capacity
2. Modern, innovative breaker design
3. CB, CE
PG Earth Leakage Circuit Breakers/gardy circuit breaker
PG Earth Leakage Circuit Breakers/gardy circuit breaker:
Type
PG230
PG430
Poles
2P
4P
Rated Voltage (V)
250V/440V
Rated Current (A)
10, 15, 20, 25, 30, 45, 50, 60A Adjustable
Leakage Motion Current (mA)
300mA, 500mA
300mA, 500mA
Leakage Dead Current (mA)
150mA, 250mA
150mA, 250mA
According with Standard
NFC61450
PG series adjustable residual current breaker(gardy RCCB, gardy ELCB)is suitable for AC 50/60Hz, 230/400V circuit, prevents from overloading, short-circuit etc. On the occasion of shock hazard or earth leakage, it will trip immediately. At the same time, the rated current of overload protection can be adjustable.
CPG230, CPG430 Series breakers are suitable in AC 50Hz, 250/440V circuit with overload and earth leakage protection. The rated current is adjustable from 10A up to 60A. User can select suitable current to better protection against overload and short circuit. The products comply with NFC61450.
PG Moulded Case Circuit Breaker
Item number of PG circuit breaker:
PG215000: 2pole 15A current without leakage current
PG215300, 2pole 15A current with 300mA leakage current
PG215500, 2pole 15A current with 500mA leakage current
PG230000, 2pole 30A current without leakage current
PG230300, 2pole 30A current with 300mA leakage current
PG230500, 2pole 30A current with 500mA leakage current
PG245000, 2pole 45A current without leakage current
PG245300, 2pole 45A current with 500mA leakage current
PG245500, 2pole 45A current with 500mA leakage current
PG260000, 2pole 60A current without leakage current
PG260300, 2pole 60A current with 300mA leakage current
PG260500, 2pole 60A current with 500mA leakage current
PG430000, 4pole 30A current without leakage current
PG430300, 4pole 30A current with 300mA leakage current
PG430500, 4pole 30A current with 500mA leakage current
PG460000, 4pole 60A current without leakage current
PG460300, 4pole 60A current with 300mA leakage current
PG460500, 4pole 60A current with 500mA leakage current
