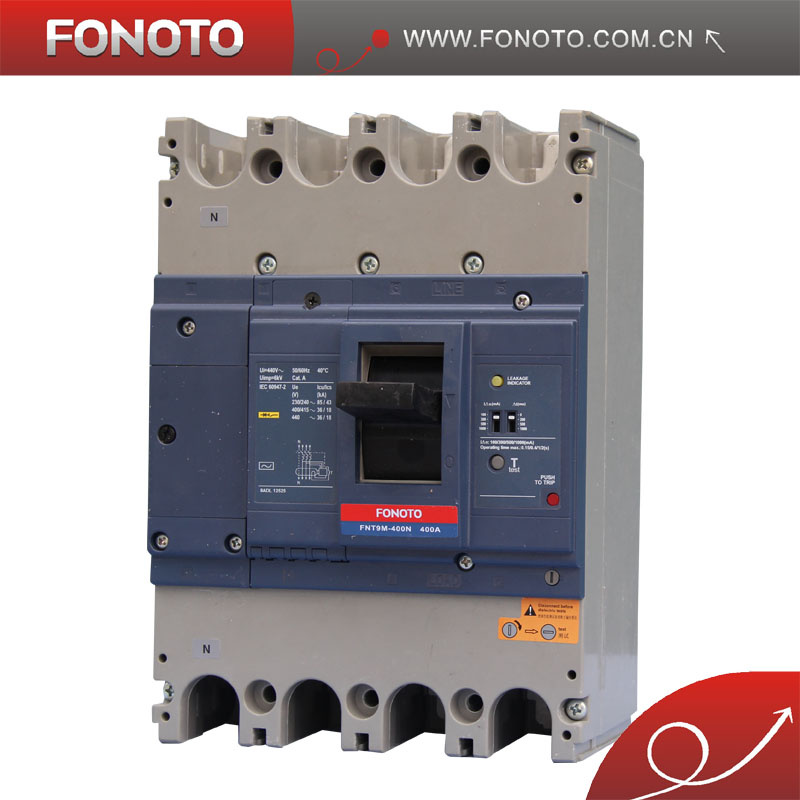

4p4d 400A Tmd MCCB with Vigi (Fnt9m-400n, EZC-400N, EZD-400N)

Name: 4p4d 400A Tmd MCCB with Vigi (Fnt9m-400n, EZC-400N, EZD-400N)
Brand: all-electronics-online.com
SKU: 727588105
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 100-110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FNT9M-400N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
With Fresh Nylon Materials:	High Breaking Capacity
With Earth Leakage Protection Vigi:	for Distribution System
Arc-extinguishing Medium:	Air
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	4
Certification:	CCC
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker

Product Description

4p4d 400A Tmd MCCB with Vigi (Fnt9m-400n, EZC-400N, EZD-400N

Model No.: FNT9M-400N/EZC-400N/EZD-400N

with earth leakage protection VIGI

1. Brand: FONOTO, OEM, ODM

2. HS Code: 8536200000

3. Packing: Export standard Carton

4. Production Capacity: 5000 Per Week

5. Sampls available

6. Certificates: CE(LVD), CCC, ISO9001 etc.

Feature:

MCCB with VIGI earth leakage protection

Most economic MCCB;

More suitable for installation & application;

All parts are made by us, with fresh new materials & moulds.

Main Technical data of MCCB FNT9M-400N/EZC-400N/EZD-400N

Circuit breaker application: Distribution and earth leakage protection

Poles description: 4P

Protected poles description: 4t

Network type:

Network frequency: 50/60 Hz

[In] rated current: 400 A ( 40 °C )

[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC60947-2

[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947-2

[Ue] rated operational voltage:

250 V DC conforming to IEC 60947-2

550 V AC 50/60 Hz conforming to IEC 60947-2

Circuit breaker rating code: N

[Icu] Breaking capacity:

Icu 40kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2

Icu 36kA 400/415 V AC 50/60 Hz conforming to IEC60947-2

Icu 36kA 440 V AC 50/60 Hz conforming to IEC60947-2

[Ics] rated service breaking capacity:

Ics 40kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2

Ics 36kA 400/415 V AC 50/60 Hz conforming to IEC60947-2

Ics 18kA 440 V AC 50/60 Hz conforming to IEC60947-2

Suitability for isolation Yes conforming to IEC60947-2

Utilisation category: Category A

Trip unit technology: Thermal-magnetic

Trip unit rating: 400 A ( 50 °C )

Protection type:

Overload protection

Short-circuit protection

Pollution degree: 3 conforming to IEC 60947

Complementary

Control type: Toggle

Mounting mode: Fixed

Mounting support: Backplate

Upside connection: Front

Downside connection: Front

Mechanical durability: 4000 cycles

Electrical durability: Category A: 1000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2

Connection pitch: 44 mm

Local signalling: Positive contact indication

Neutral protection setting: Without protection

Earth-leakage protection: Without

Height: 257 mm

Width: 185 mm

Depth: 146 mm

Environment

Standards CSA 22-2 No 14

EN 60947-1

EN 60947-2

GB 14048.2

IEC 60947-1

IEC 60947-2

JIS C8201-2-2

NEMA AB1

UL 508

IP degree of protection: IP20 conforming to IEC 60529

IK degree of protection: IK07 conforming to EN 50102

Ambient air temperature for operation: -25...70 °C

Ambient air temperature for storage: -35...85 °C

RoHS EUR conformity date: 0714

RoHS EUR status: Compliant

Zhejiang FOTONO Technology Co., Ltd. is a high technology company which is member of electric appliance industrial association. It is professional manufacture of low-voltage electrical appliances, especially in Moulded Case Circuit Breaker (MCCB), Temperature Controller, Distribution Box and intelligent household electrical products etc.

FONOTO covers 30000m2 areas, including 250 staffs and more than 30 professional technicians and engineers. We enjoy completely production lines, advanced production technique and exactly testing equipment. Production lines are divided into R&D of new products, Mould Design Base, Injection Production Base, Stamping production line, Intelligent PCB Base, and production Assembly lines of MCCB, Temperature Controller, Distribution Box etc.

We sincerely welcome new and old customers at home and abroad. Let us work together to develop the new market. & benefit with each other.

Welcome to visit ou sites & company, we will serve you to the best.
