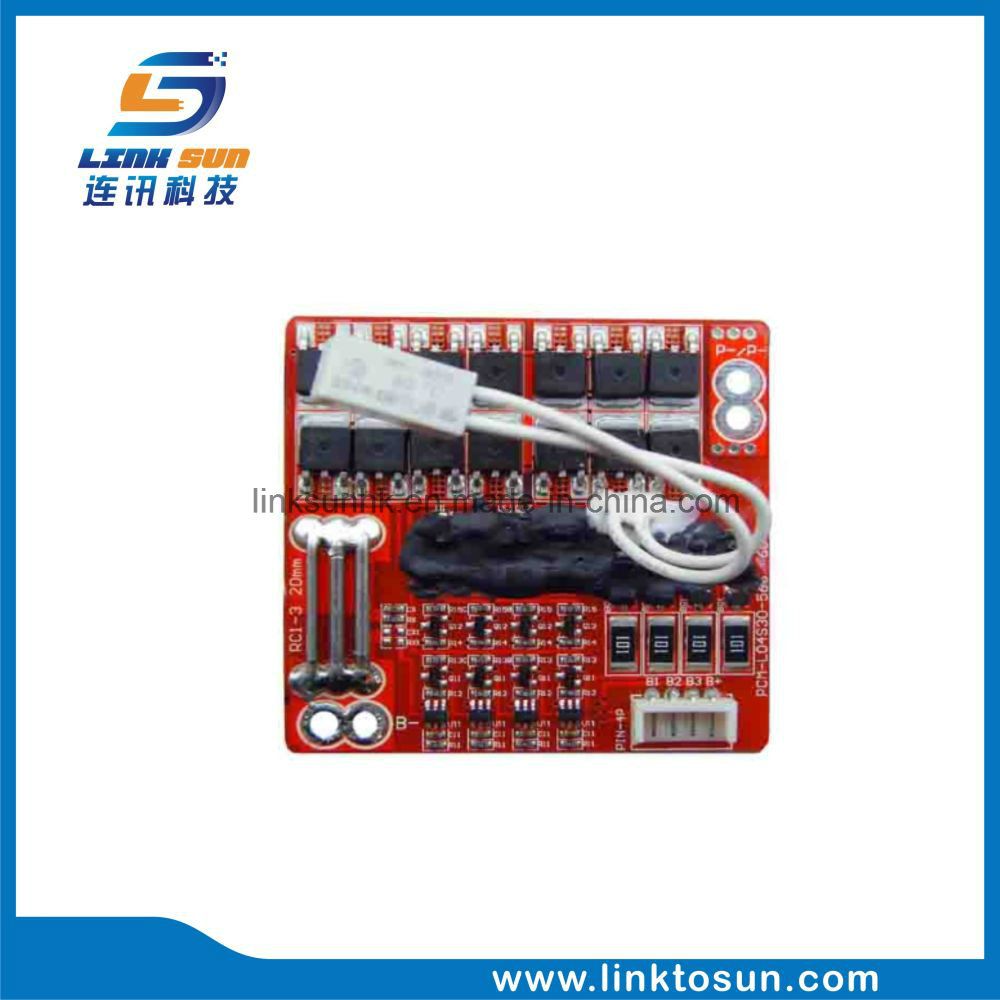

4s 12V 30A Li-ion LiFePO4 Battery BMS/PCM

Name: 4s 12V 30A Li-ion LiFePO4 Battery BMS/PCM
Brand: all-electronics-online.com
SKU: 732572702
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 10-10.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L04S30-566
Battery Pack Series:	4s
Max Continuous Discharge Current:	30A
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

Specifications

12V 4S PCM protection circuit module for lifepo4 battery pack
Size:L60*W60*T8mm

12V 4S BMS/Protection Circuit Module Specifications For power tools

1.Overcharge detection and Overdischarge detection voltage(can adjust)

2.Li-ion and liefpo4 battery(can adjust)

Application:

power tools,toy,e-bike, e-bus, ups, golf car, e-scooter, e-wheelchair, portable appliance and medical equipment, etc.

No.	Test item		Criterion
1	Voltage	Charging voltage	DC:14.4V 3.6V/Cell
		Balance voltage for single cell	3.60±0.03V
2	Current	Balance current for single cell	72±5mA
		Current consumption	≤15μA
		Maximal continuous charging current	30A
		Maximal continuous Discharging current	30A
3	Over charge Protection	Over charge detection voltage	3.90±0.025V
		Over charge detection delay time	0.5S-1.5S
		Over charge release voltage	3.80±0.05V
4	Over discharge protection	Over discharge detection voltage	2.0±0.05V
		Over discharge detection delay time	50mS-150mS
		Over discharge release voltage	2.3±0.1V
5	Over current protection	Over current detection voltage	0.1±0.025V
		Over current detection current	80±20A
		Detection delay time	5ms-15ms
		Release condition	cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	cut load
7	Resistance	Protection circuitry	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+85°C
		Storage Temperature Range	-40~+125°C

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
