4s 4A Li-ion Li-Poly Battery Circuit Board

Name: 4s 4A Li-ion Li-Poly Battery Circuit Board
Brand: all-electronics-online.com
SKU: 730483092
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Series:	3s
Over-Discharge Voltage Protectio:	2.40V/Cell
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

We have over six hundreds of PCM/BMS series products for your choice, most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.

Our main PCB/BMS normally adopt imported raw material for reliable quality, IC from Japan, MOS from USA, Components from Sumsang, Almost Zero RMA.

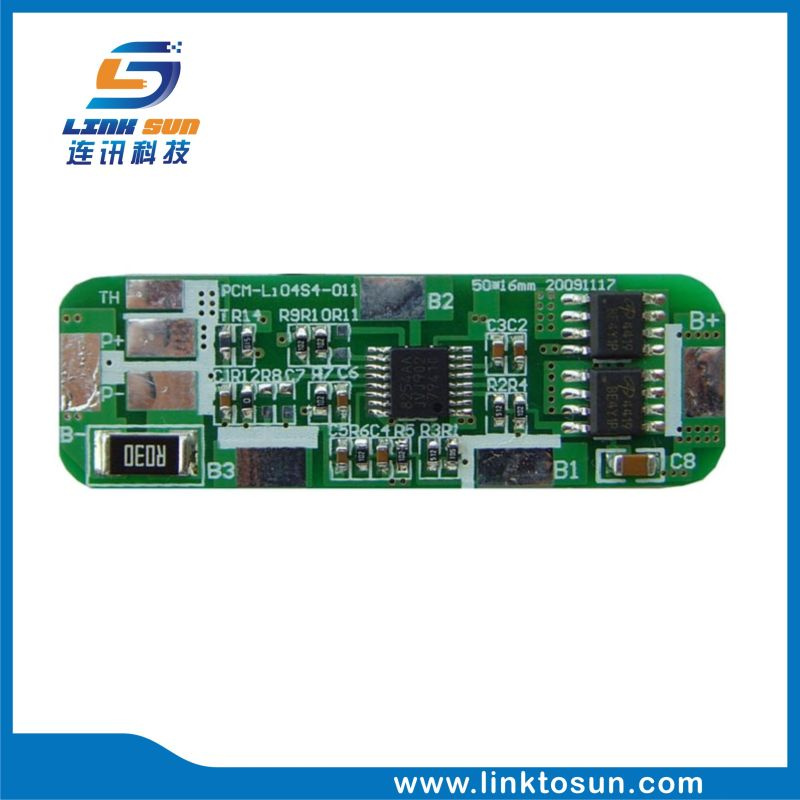

PCM-L04S4-011
Size:50*16*3mm

No.

Test Item

Criterion

Voltage

Charging voltage

DC:16.8V CC/CV

Balance voltage for single cell

Current

Balance current for single cell

Current consumption for single cell

≤50μA

Maximal continuous charging current

Maximal continuous Discharging current

Over charge Protection

Over charge detection voltage

4.25±0.05V

Over charge detection delay time

0.5S-2S

Over charge release voltage

4.15±0.1V

Over discharge protection

Over discharge detection voltage

2.5±0.1V

Over discharge detection delay time

10mS-200mS

Over discharge release voltage

3.0±0.10V

Over current protection

Over current detection current

15±5A

Detection delay time

5-60mS

Release condition

Cut load, Auto Recovery

Short protection

Detection condition

Exterior short circuit

Detection delay time

200-800us

Release condition

Cut load, Auto Recovery

Resistance

Protection circuitry

≤60mΩ

Temperature

Operating Temperature Range

-40~+85ºC

Storage Temperature Range

-40~+125ºC

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
