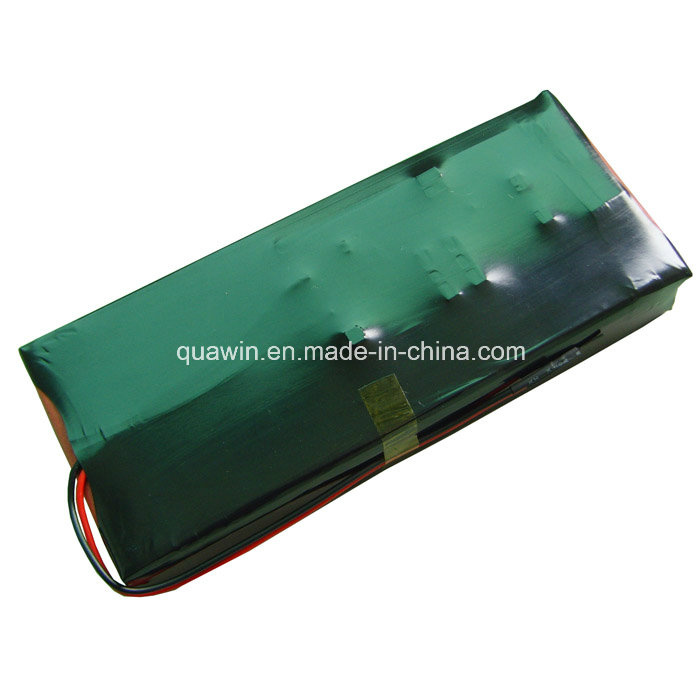

4s1p 14.8V/10ah Li-ion Polymer Battery Pack

Name: 4s1p 14.8V/10ah Li-ion Polymer Battery Pack
Brand: all-electronics-online.com
SKU: 783295445
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP0148-010K-LP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	Lipo Battery
Voltage:	14.8V
Capacity:	10ah
Delivery Date:	20days
Warranty:	One Year
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Series and Parallel

Product Description

4S1P 14.8V/10A Li-ion Polymer Battery Pack

Item	Specification		Remark
Nominal capacity	10000mAh		0.2C discharge Cell: 9059156
Nominal voltage	14.8V		3.7V / 1Cell
Charging voltage	16.8V±0.1V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	2000mA/7.5hour,5000mA/3hour		Battery capacity÷charging current×1.5
Maximum charging current	5000mA(0.5C)		0~+45ºC
Continuous discharge current	10000mA(1C)		-20~+60ºC
Maximum discharge current	20000mA(2C)		-20~+60ºC
Discharge cutoff voltage	11V		2.75V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤100mΩ		AC Impedance 1kHz
Cycle life	≥500
Operating temperature	Standard Charge	0~+45ºC
	Standard Discharge	-20~+60ºC
Temperature range for storage	-20 ~ 20ºC	less than 1 year	Percentage of recoverable capacity 80
	-20 ~ 45ºC	less than 3 months
	-20 ~ 60ºC	less than 1 month
UL/UN approved	UL	UN	UL:single cell,UN:pack
Weight	750 gram
Outline dimension	162×63×44		Length x wide x height
Pre-wired	150mm length 18 AWG wires without connector		Red = Positive,Black = Negative
Protection Circuit Module
Balance voltage	4.20V±0.025V		single cell
Balance current	42±3mA		single cell
Over-charge detection voltage	4.35V±0.025V		single cell
Over-charge release voltage	4.15V±0.05V		single cell
Over-charge detection delay time	0.5S-1.5S		single cell
Over-discharge detection voltage	2.40V±0.08V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	50-150ms		single cell
Over-current detection	15±2A		can adjust
Over-current delay time	5ms-15ms

Advantage:

1.Thin format, light weight, large area,
2.Easy customized,Energy density,High capacity.

3. High level of safety, Environmentally compatible.

4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+55°C
6. Be charged & discharged at anytime because of non-memory.
7. Super slim design,Ultra-thin Cell, or Thin Cell, as thin as 0.4mm, suitable for Smart security cards One-time use devices,

Application:

Portable DVD player, Digital photo frame,Medical and health devices,
