| Prod Model: |
TL412 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
35(L)*22(W)91(H)Mm |
| Weight: |
138g |
| Color: |
Black/ White |
| Charge (Cycle Use): |
4.8~5.0V |
| Charge (Standby Use): |
4.5~4.6V |
| Container: |
ABS |
| Designed Life: |
2-3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Rechargeable LED Bulb/ Dual Lite /Table Lite |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
4V |
Product Description

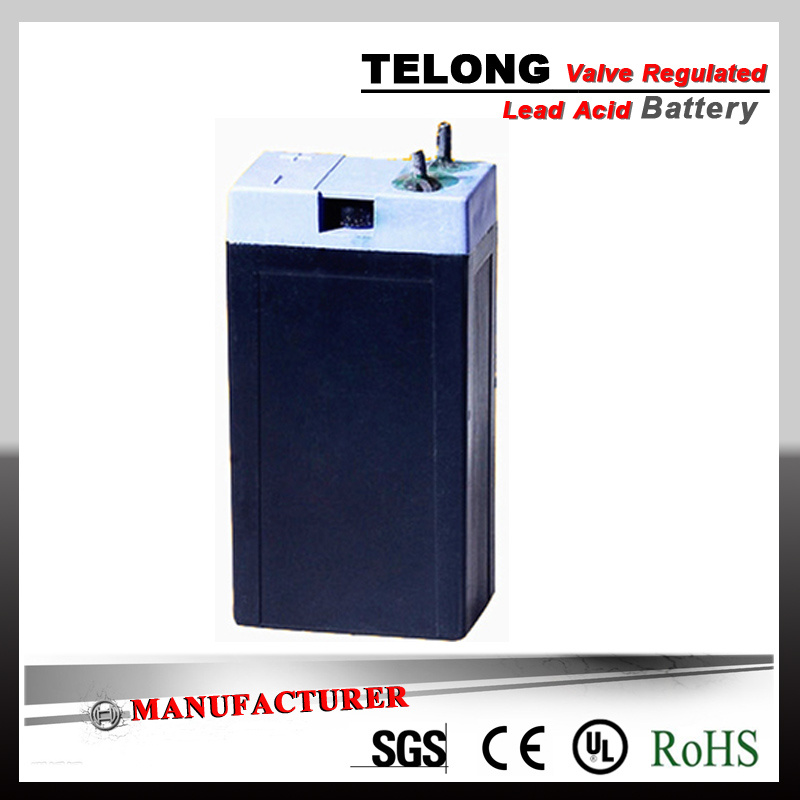

TL412 (4V1.2ah) Lead acid battery is mainly used for LED Light, rechargeable lamp and other rechargeable light.The battery is popular in China, Pakistan, and Vietnam.
SPECIFICATION
| Nominal Voltage | 4V |
| Rated capacity (10 hour rate) | 1.2 Ah |
| Dimension | Length | 35mm (1.37 inches) |
| Width | 22mm (0.86 inches) |
| Height | 91mm (3.55inches) |
| Weight Approx | 138g(0.30Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%
and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 10 hour rate(0.12A ) | 1.2AH |
| 5 hour rate(0.204A ) | 1.02AH |
| 1 hour rate(0.78A ) | 0.78AH |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 0.1 A |
| (cycle use) Voltage 4.83-4.96V |
| (float use) Voltage 4.5-4.6V |
APPLICATIONS
Rechargeable LED Bulb/ Dual Lite /Table Lite
DC power supply
Uninterruptible power supplies
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL430 | 4 | 3 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 2 | TL435 | 4 | 3.5 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 3 | TL445 | 4 | 4.5 | 47 | 47 | 100 | F1/F2 | 0.5 |
| 4 | TL460 | 4 | 6 | 47 | 47 | 100 | F1/F2 | 0.55 |
| 5 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 6 | TL623 | 6 | 2.3 | 43 | 37 | 76 | F1 | 0.33 |
| 7 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 8 | TL632 | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 9 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 10 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 11 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 12 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 13 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 14 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 15 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 16 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 17 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 18 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
