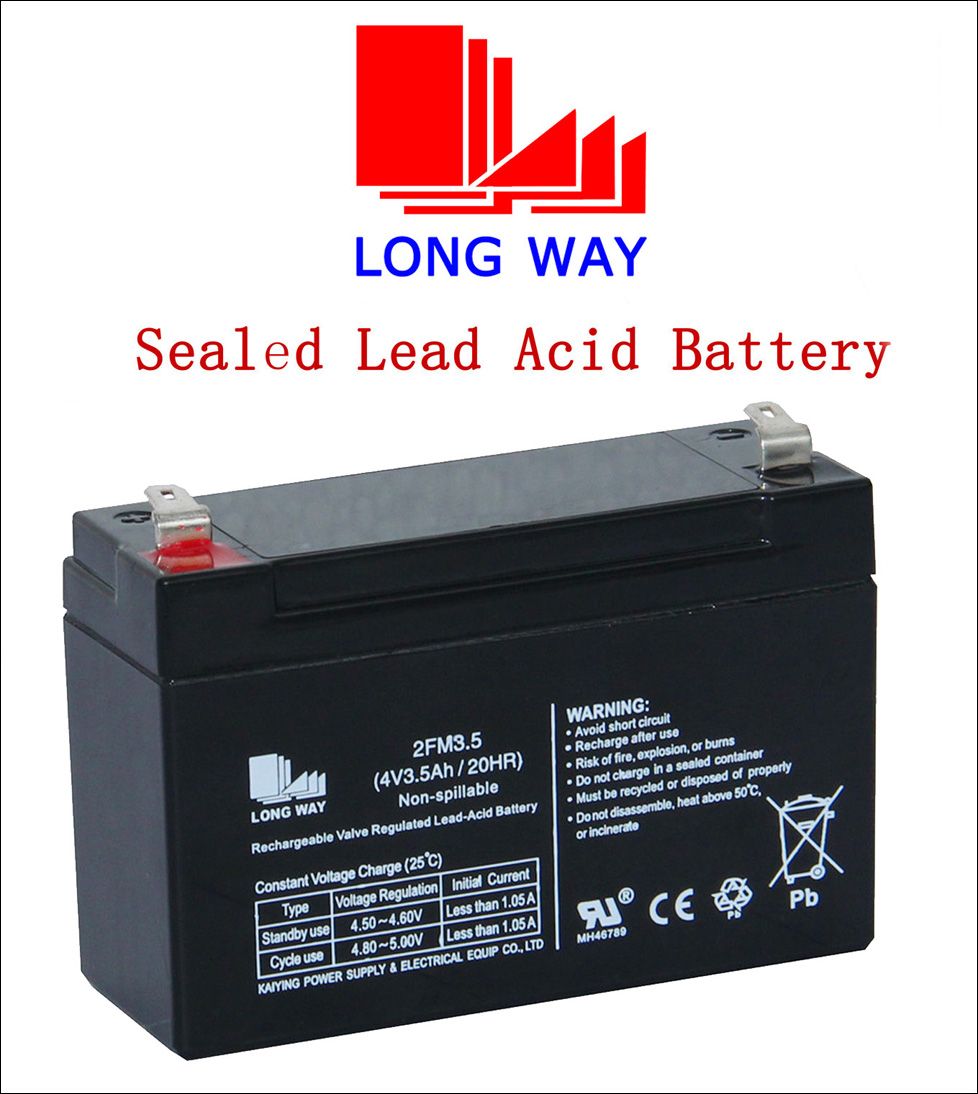

4V3.5ah Power Cell Sealed Scale Rechargeable UPS Battery

Prod Model:	4V3.5AH
Color:	Grey or Black
Plate Number In Unit Cell:	2+3-
Terminal:	F1/F2
Key Words:	Solar Battery
Type:	Lead-Acid Batteries
Usage:	Solar Battery
Nominal Voltage:	4V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

LONGWAY®  solar battery  4V3.5ah

1) Standard battery is design for a general purpose by KaiYing Power.
*Maintenance-free.
*Low self-discharge and powerful recover ability.
*Valve-regulated and reasonable price.

2)Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: Longway
Model Number: LW4-3.5
Usage: UPS\solar battery
Voltage: 4V
Sealed Type: Sealed
Maintenance Type: Free
Size: 47.5*47.5*101.5*106mm
Weight: 0.50kg
Nominal Capacity: 34ah
Plate number in unit cell: 2+3-

3)Applications
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines;
²
4)General Features
² Stable quality&high reliability
² Sealed construction
² Environmentally friendly
² Maintenance-free operation
² Low pressure venting system
² Heavy duty grid
² Low self discharge
² UL component recognition(MH46789)

For more information, welcome to contact us!

Standby LONGWAY 4V series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
2FM3.5	4	3.5	3.55	90	1.34	34	2.37	60	2.6	66	0.88	0.44
2FM4	4	4	1.87	47.5	1.87	47.5	3.98	101.5	4.21	106	1.1	0.5
2FM4.5	4	4.5	1.87	47.5	1.87	47.5	3.98	101.5	4.21	106	1.14	0.52
2FM6	4	6	2.76	70	1.87	47.5	3.98	101	4.21	107	1.54	0.7	F1	D

Standby  LONGWAY 6V Standard Series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
3FM1.2	6	1.2	3.82	97	0.94	24	2.05	52	2.28	58	0.66	0.30	F1	C
3FM2.8	6	2.8	2.60	66	1.30	33	3.84	97.5	4.09	104	1.21	0.55	F1	A
3FM3.2	6	3.2	5.28	134	1.36	34.5	2.34	59.5	2.64	67	1.43	0.65	F1	C
3FM3.5	6	3.5	2.76	70	1.85	47	3.90	99	4.13	105	1.28	0.58	F1/F2	A
3FM4	6	4	2.76	70	1.85	47	3.90	99	4.13	105	1.52	0.69	F1/F2	A
3FM4.2	6	4.2	2.76	70	1.85	47	3.90	99	4.13	105	1.59	0.72	F1/F2	A
3FM4.5	6	4.5	2.76	70	1.85	47	3.90	99	4.13	105	1.65	0.75	F1/F2	A
3FM5	6	5	2.76	70	1.85	47	3.90	99	4.13	105	1.83	0.83	F1/F2	A
3FM5A	6	5	3.86	98	2.20	56	4.41	112	4.65	118	1.87	0.85	F1/F2	A
3FM5E	6	5	2.76	70	1.85	47	3.90	99	4.13	105	1.74	0.79	F1/F2	A
3FM5H	6	5	2.67	67.8	2.64	67	3.84	97.5	4.13	105	1.79	0.81	S/F1	---
3FM5.5	6	5.5	2.76	70	1.85	47	3.90	99	4.13	105	1.90	0.86	F1/F2	A
3FM5.5H	6	5.5	2.76	70	1.85	47	3.90	99	4.13	105	1.94	0.88	F1/F2	A
3FM6	6	6	3.35	85	1.89	48	3.94	100	4.17	106	2.20	1.00	F1	A
3FM6.5	6	6.5	3.86	98	2.20	56	4.41	112	4.65	118	2.65	1.20	F1/F2	A
3FM7	6	7	5.94	151	1.42	36	3.70	94	3.94	100	2.43	1.10	F1/F2	C
3FM8	6	8	3.86	98	2.20	56	4.65	118	4.65	118	3.09	1.40	F1/F2	B
3FM9	6	9	5.94	151	1.97	5	3.70	94	3.94	100	3.20	1.45	F1/F2	C
3FM10	6	10	5.94	151	1.97	50	3.70	94	3.94	100	3.31	1.50	F1/F2	C
3FM11	6	11	5.94	151	1.97	50	3.70	94	3.94	100	3.64	1.65	F1/F2	C
3FM12	6	12	5.94	151	1.97	50	3.70	94	3.94	100	3.64	1.65	F1/F2	C
3FM14	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	F2+F1-
3FM14T1	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	T1	/
3FM14T2	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	T2	/
3FM14A	6	14	4.25	108	2.80	71	5.51	140	5.51	140	4.63	2.10	F2+F1-	/
